UPS units protect against common power network disturbances such as power outages and short- and long-term under- and overvoltages. They are ideal for protecting modems, routers, switches, PCs, workstations and small servers in home and office environments, as well as protecting POS, automation and alarm systems and video surveillance systems in various applications.

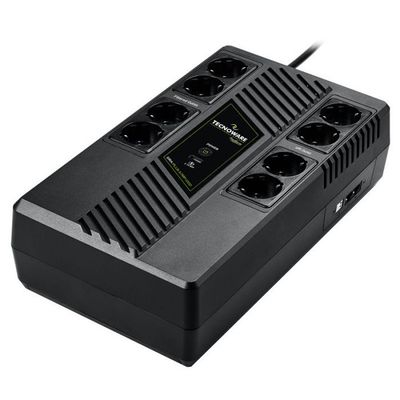

The desktop model FGCERAPLS1002SCH is equipped with four battery-backed Schuko outlets and four filtered Schuko outlets, an RJ11/45 line protector and a USB port providing 5V 2,1A for fast charging of a phone or tablet. The unit also has a USB interface for data communication between the UPS and a computer with management software. The TecnoManager management software is available for free download.

Features

• Input voltage 230 VAC
• Output voltage 230 VAC (modified sine wave)
• Load capacity 1000 VA (700 W)
• Maintenance-free lead battery (12 V 7,2 Ah), backup time approx. 10-70min
• 4 x Schuko female connector (UPS output)
• 4 x Schuko female connector (surge-protected output)
• 1 x RJ11/RJ45 female (input)
• 1 x RJ11/RJ45 female (output with surge protection)
• 1 x USB-A female (output 5V 2,1A)
• 1 x USB-B female (management)

Links

• User's Manual
• Quick Guide ERA PLUS Strip 1000 Together ON.pdf
• Product details
