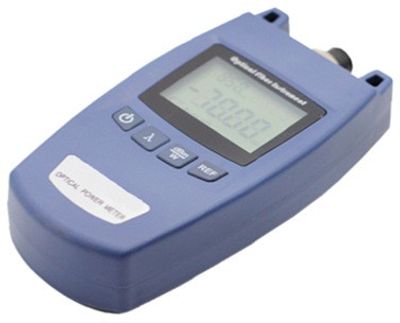

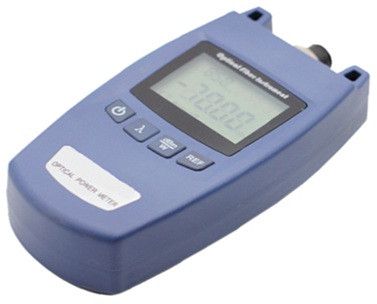

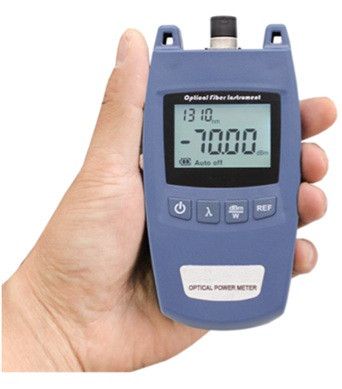

The TC-36E optical power meter is widely used in the installation, operation and maintenance of fiber networks. The TC-36E can measure optical power in the wavelength range 800~1700nm. The device supports six calibrated wavelengths: 850 nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.

Technical specifications

• Measurement range (dBm): -70 ~ +10
• Wavelength range (nm): 800 ~ 1650
• Calibrated wavelengths (nm): 850, 1300, 1310, 1490, 1550, 1625
• Detector: InGaAs
• Accuracy: < ±3% (-10dBm, 22 °C)
• Resolution: Linearity 0.1%; Non-linearity 0.01dBm
• Operating temperature (°C): -10 ~ +50
• Storage temperature (°C): -20 ~ +70
• Relative humidity: 90% (@ +30°C)
• Connector types: FC, SC/FC, FC/SC/ST
• Power supply: 3 x AAA batteries
• Operating time: >120h (without backlight)
• Weight: 160g
• Dimensions (mm): 130 × 63 × 29

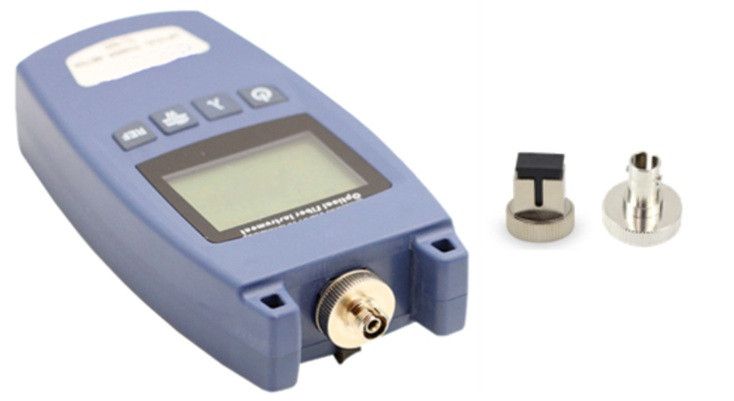

Package contents

• 1 x optical power meter
• 1 x FC connector
• 1 x FC/SC connector
• 1 x FC/SC/ST connector
• 1 x user manual
• 3 x AAA batteries
• 1 x carrying case
