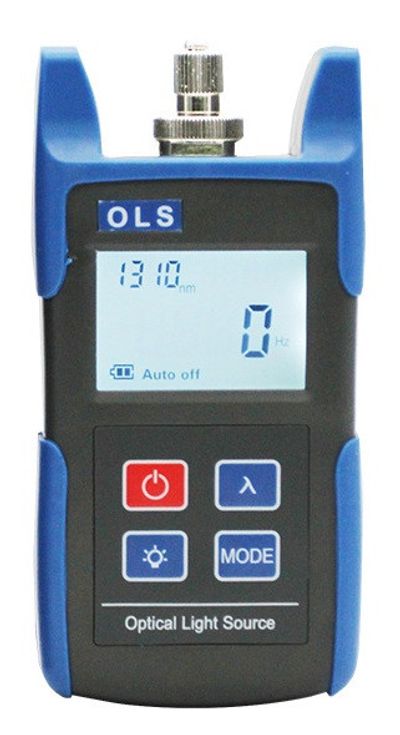

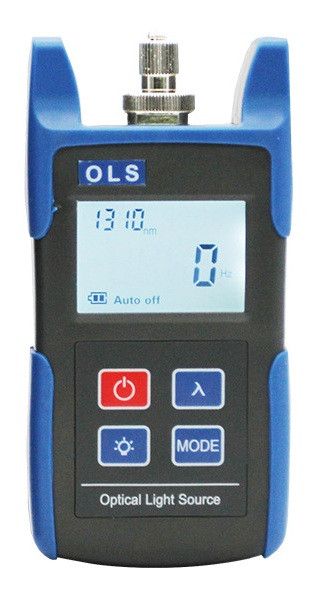

The TC-68A optical light source delivers high output power and very low power consumption. The device operates at wavelengths 1310/1550 nm and in single, dual or triple wavelength modes. The TC-68A supports multiple modulation frequencies (CW, 270 Hz, 1 kHz and 2 kHz).

A clear LCD display and battery operation make it a reliable and easily portable tool for field and laboratory use.

Features

• Stable output power
• Optional auto power-off
• Large backlit LCD
• Battery charge indicator
• Support for multiple wavelengths and modulation frequencies
• Very low power consumption

Applications

• Maintenance of telecommunication networks
• Maintenance of CATV systems
• Fiber optic test laboratories
• Fiber optic sensors and measurements

Technical specifications

• Model: TC-68
• Submodels: TC-68A / TC-68B / TC-68C
• Wavelengths:
  • TC-68A: 1310/1550 nm
• Transmitter type: FP-LD
• Optical connector: FC/SC
• Output power: ≥ -7 dBm
• Output power stability: ±0.04 dB @ 20 °C / 15 min
• Modulation frequencies: CW, 270 Hz, 1 kHz, 2 kHz
• Fiber type: SM, MM
• Power supply: 3 × AAA 1.5 V batteries
• Operating time: about 40 h
• Operating temperature: -10 °C – +50 °C
• Storage temperature: -20 °C – +70 °C
• Dimensions: 125 × 65 × 29 mm
• Weight: 160 g

Package contents

• 1 x TC-68A optical light source
• 2 x SC/FC connector
• 1 x protective case
• 1 x user manual
• 3 x AAA batteries
• 1 x certificate of quality
