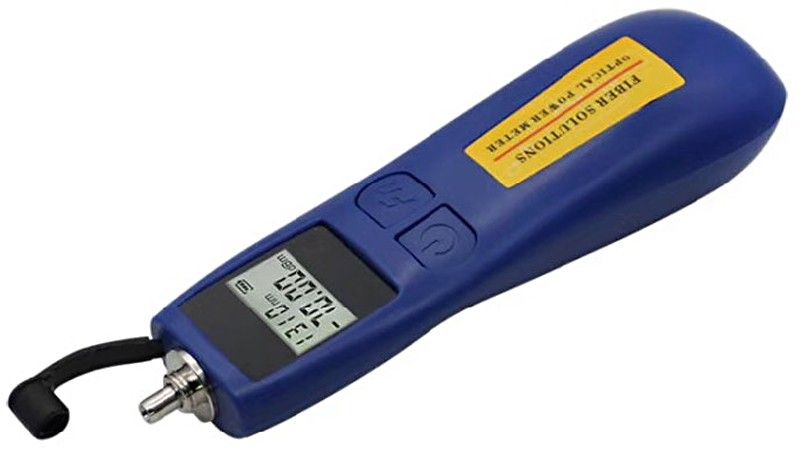

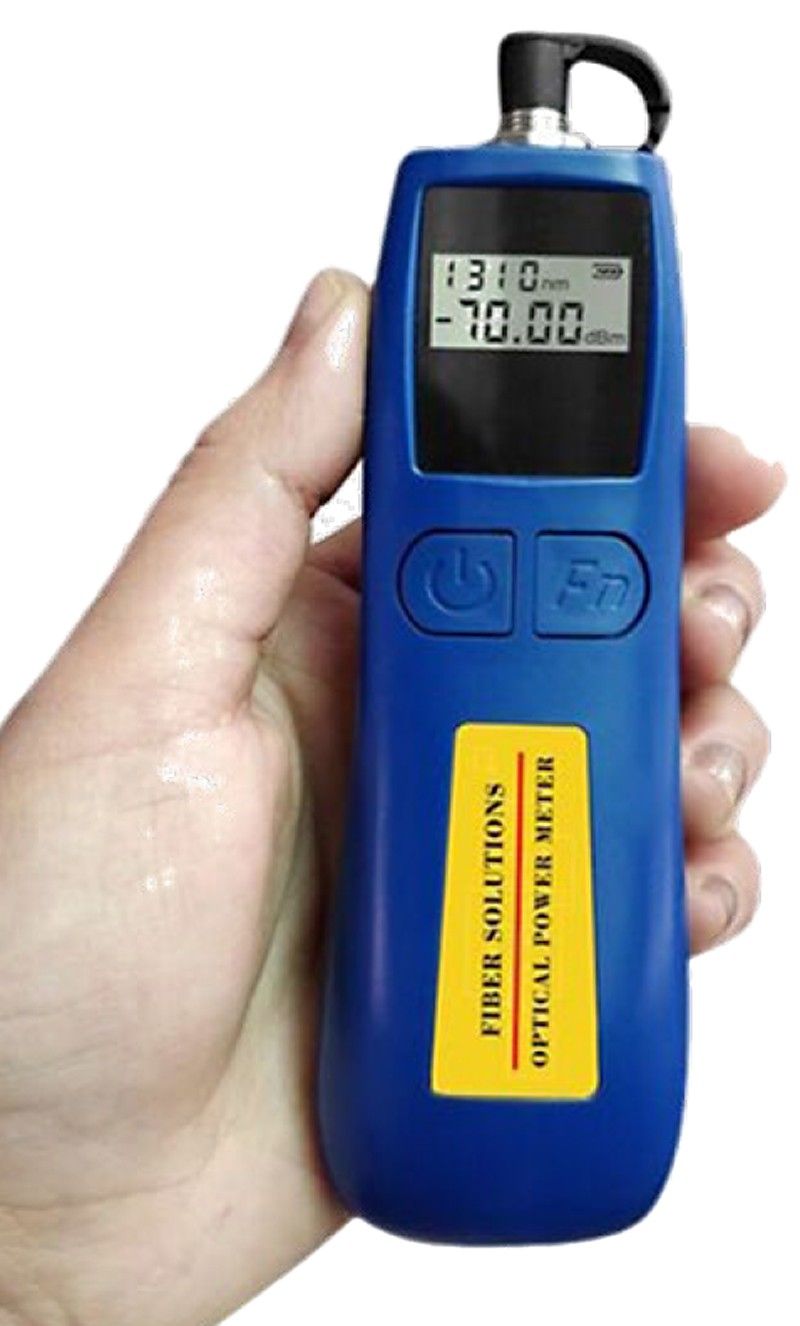

The TC-37B Mini Optical Power Meter has a compact construction and its stable performance ensures accurate measurement results at wavelengths 850nm, 1300nnm, 1310nm, 1490nm, 1550nm and 1625nm. Using the optical light source allows precise measurement of attenuation in fibers and optical devices.

Features

• Protected sensor measurement head
• Linear power measurement and logarithmic power display
• Relative power value measurement
• Compact and convenient design
• Automatic power range adjustment and battery charge indicator
• Low power consumption, operating time over 100 hours with batteries

Specifications

• Display range: -50~+26dBm
• Accuracy: 0.35dB±10nW
• Resolution: 0.01dB
• Calibrated wavelengths: 850/1300/1310/1490/1550/1625nm
• Sensor type: InGaAs
• Wavelength range: 800~1700nm
• Continuous operation time with batteries: approximately 230 hours
• Stand by time: approximately 3500 hours
• Connector: 2.5mm connector
• Power supply: 2 pcs AAA batteries (not included)
• Operating temperature: -10 to +50℃; <90% humidity
• Storage temperature: -20 to +70℃; <90% humidity
• Dimensions: Length 120mm x width 33mm x thickness 30mm, weight ~ 70g
