Features

• Possible to save the inspected connector and adapter cleanliness to an SD memory card (included)
• Good result also for detecting the cleanliness of APC-polished connectors
• Good and easy focusing

Specifications

• Product name: fiber microscope
• Model number: TC-29
• Magnification: 200x (400x on PC display)

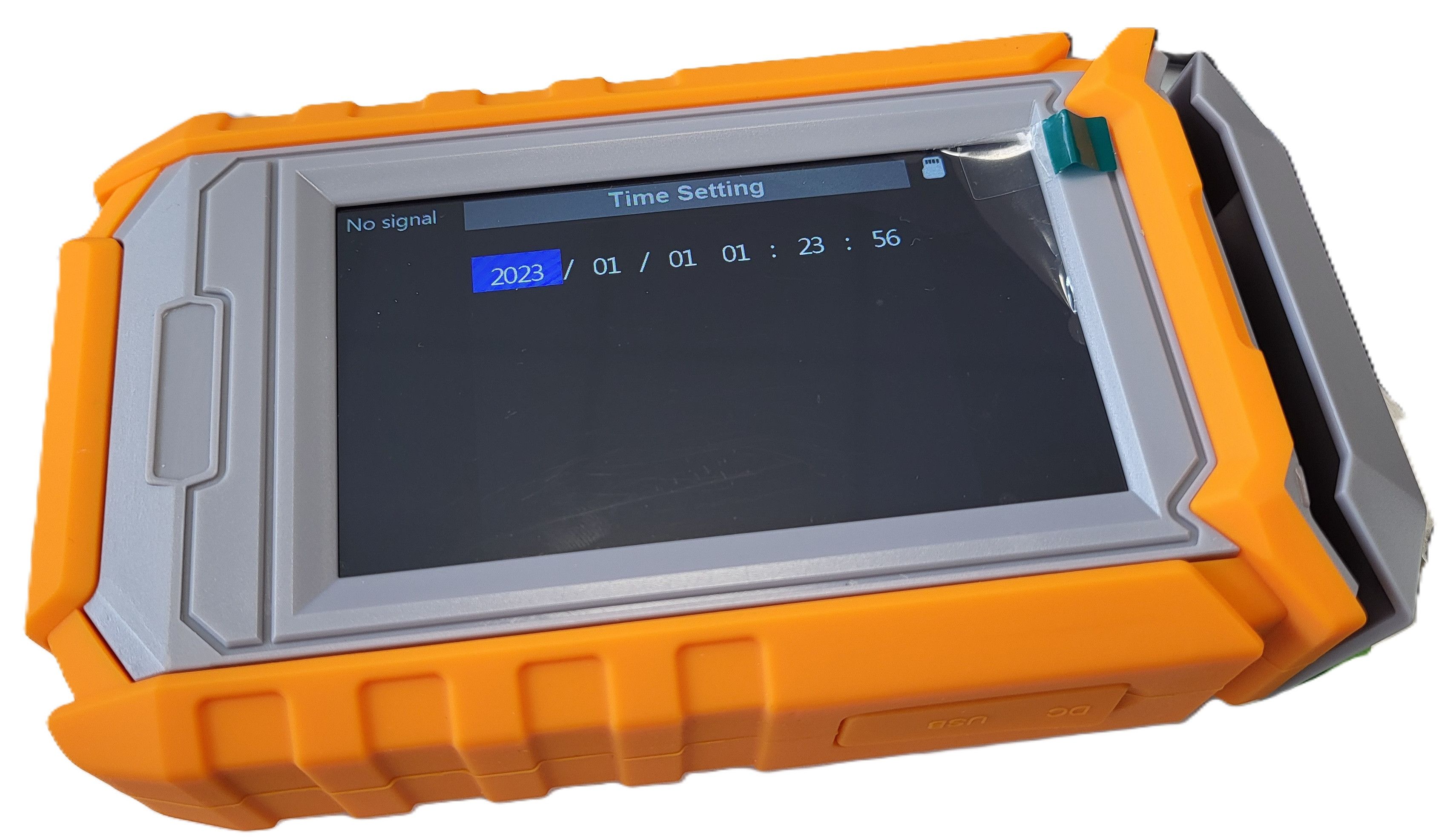

• Display: 4.3" full-color LCD TFT (960x240)
• Resolution: 0.75 µm
• Video output: NTSC / PAL
• Weight: 1.5kg
• Power input: USB-C
• Operating temperature: -20 ~ +50°C
• Storage temperature: -30 ~ +60°C

Contents

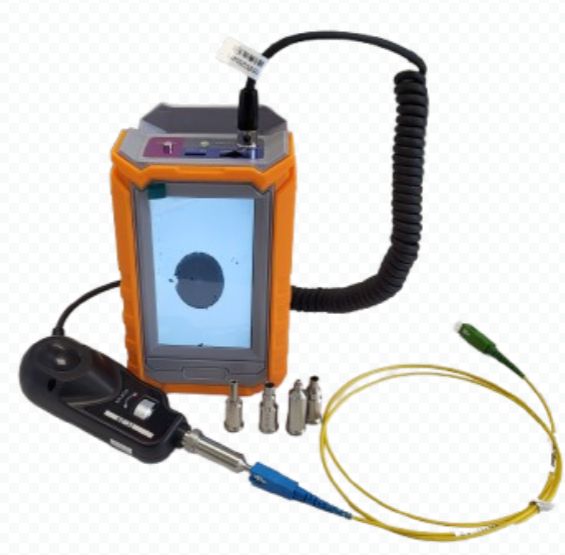

• TC-29 fiber microscope (display unit + probe)
• 12.6V Li-ion battery
• USB power adapter + cable
• Carrying case

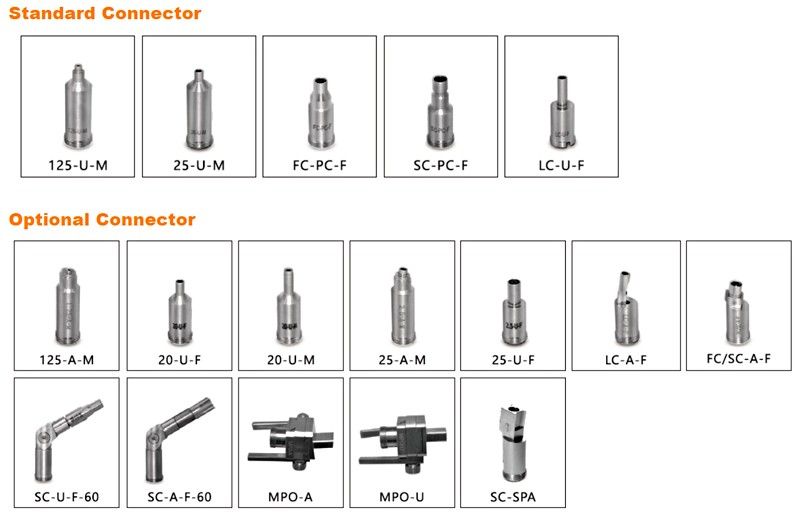

• Fiber adapters: 25-U-M, 125-U-M, FC-PC-F, SC-PC-F, LC-U-F
• English and Finnish user manual (see Download)
