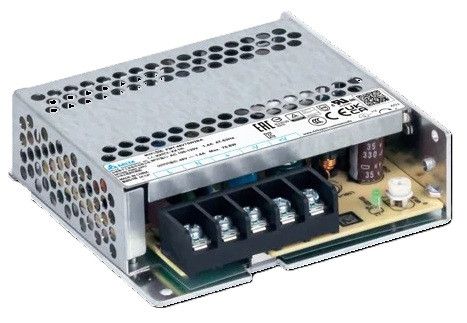

Delta PMT-12V75W2BA panel-mount power supply with an adjustable 12VDC 6A output.

Technical specifications

• Input voltage range: 90–264 VAC (rated voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 1,4 A typ. @ 115 VAC, 0,85 A typ. @ 230 VAC
• Efficiency: 87 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0,3 W @ 230 VAC
• Inrush current (cold start): 55 A typ. @ 230 VAC
• Leakage current: < 0,5 mA @ 240 VAC
• Rated output voltage: 12 VDC
• Factory setting and tolerance: 12 VDC ±1 %
• Output voltage adjustment range: 10,8–13,2 VDC
• Output current: 6 A
• Maximum output power: 72 W
• Line regulation (Verkkosäätö): ±0,5 %
• Load regulation (Kuormasäätö): ±0,5 %
• Enclosure material: Metal
• Connector type: Screw terminal
• Operating temperature range -30°C - +70°C
