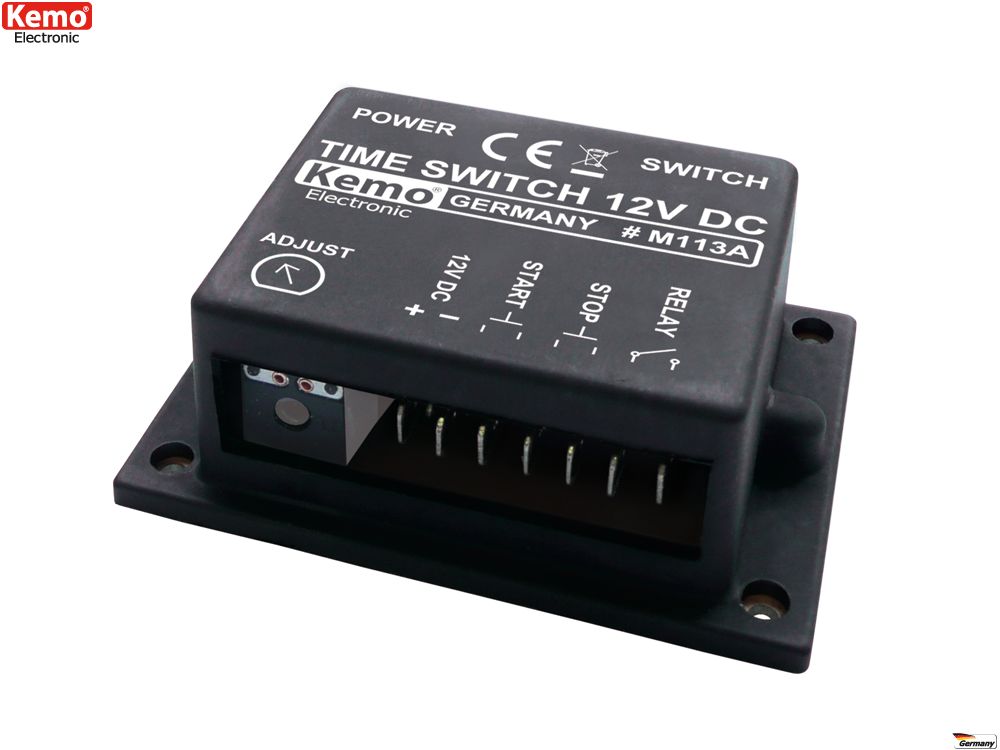

Product Description

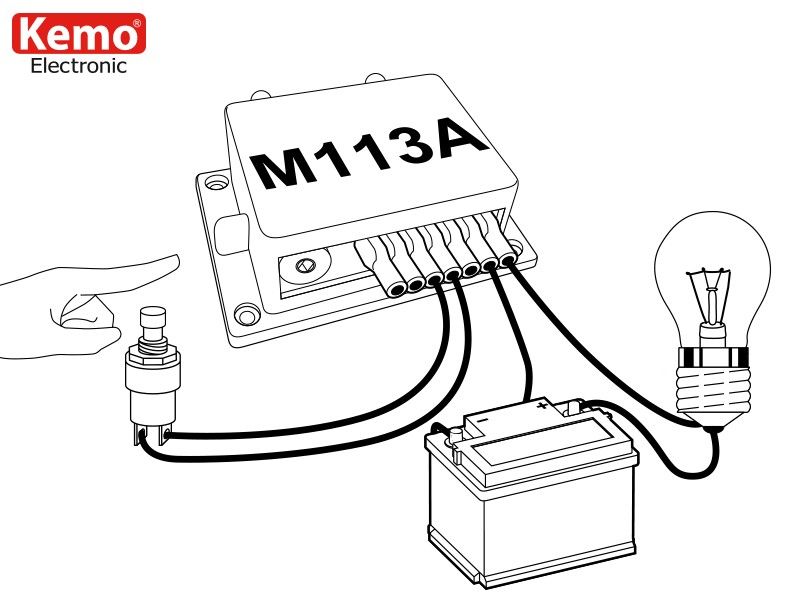

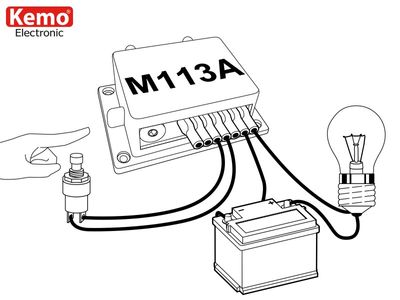

Operation
In short: When you press the on switch, the relay pulls in and shorts its contacts for the set time. The relay releases and opens its contacts when the time runs out or when you press the off switch. A status LED indicates the operating state.
![M113A_Animation[1].gif](https://www.partco.fi/img/cms/inline/kemo/M113A_Animation%5B1%5D.gif)
Features
- Two control switches: on and off (not required).
- Suitable for controlling 3A 25V loads.
- Switching time (i.e. the time the relay is pulled in) is adjusted with a trimmer.
Technical specifications
|
Operating voltage |
12 - 15 V/DC |
|
Current consumption |
approx. 20 mA / 80 mA (relay off / on) |
|
Adjustable time |
approx. 2 sec ... 23 min, (± 30 %) |
|
Connections |
6.3 mm flat connectors |
|
Indicators |
two LEDs = status LED for operating voltage, LED when the relay is pulled in |
|
Switching relay details |
1 x ON, max. 3 A, 25 V (do not use to control 230VAC mains voltage) |
|
Dimensions |
approx. 87 x 60 x 33 mm (without mounting base) |

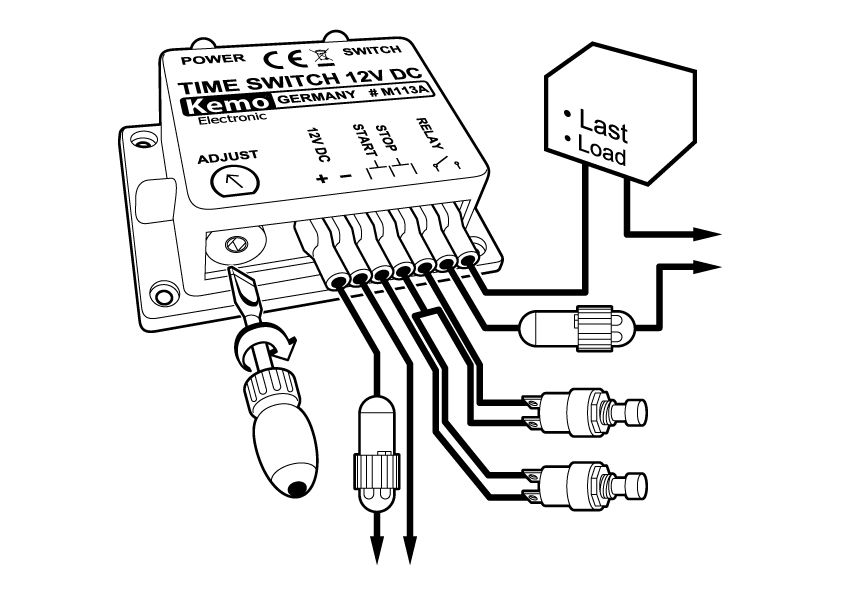

Installation instructions
Always use a fuse between the Kemo M113A and the battery; do not connect directly to the battery terminals.
Also use a fuse with the device being controlled.
Product Information
- Availability In stock
- Manufacturer Kemo Electronic
- EAN 4024028031309
- Product path Home Do It YourselfBuilding KitsKemo ready-made modules TIME SWITCH 3A 25V
- SKU KEMO-M113A
- Attributes
- Manufacturer's model M113A
- Click for more details https://www.kemo-electronic.de/en/Transformer-Dimmer/Switches/Modules/M113A-Time-switch-12-15-V-DC.php
- Dimensions 87 x 60 x 33 mm
