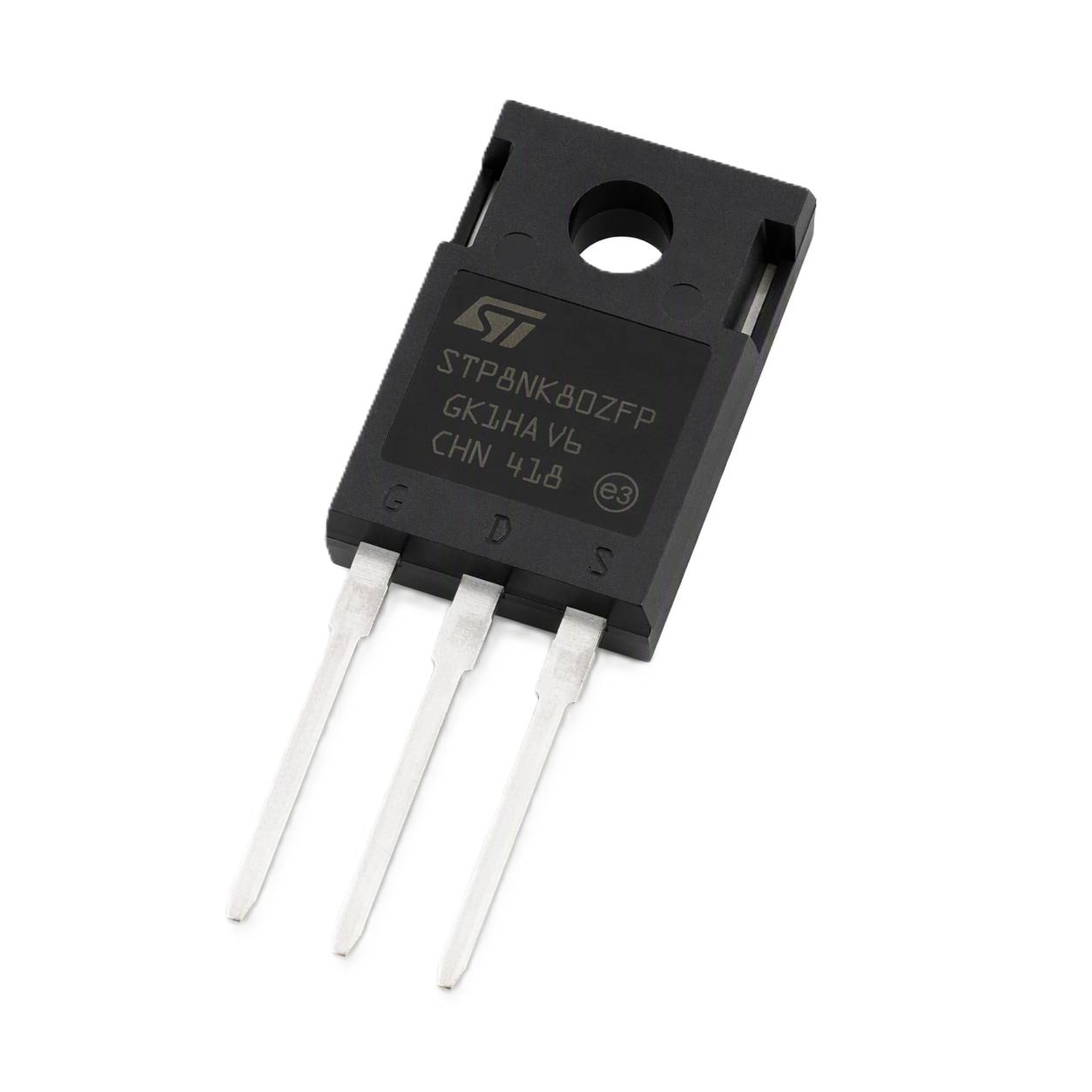

STP8NK80ZFP N-channel MOSFET 800V 8A TO-220FP

STP8NK80ZFP is an N-channel power MOSFET manufactured by STMicroelectronics, suitable for high-voltage applications such as power supplies, switching electronics and power converters. The fully insulated TO-220FP package allows direct mounting to a heatsink without separate insulation.

Key features

• Type: N-channel power MOSFET
• Max. voltage (V_DS): 800 V
• Max. current (I_D): 8 A
• R_DS(on): typically approx. 0.85 Ω
• Package type: TO-220FP (insulated)
• Low gate charge (Qg) for efficient switching
• Good avalanche robustness

Applications

• Power supplies (SMPS)
• Switching regulators
• Power control and load switching
• Inverters and electrical engineering applications

Additional information

• Manufacturer: STMicroelectronics
• RoHS compliant
• Insulated package simplifies mounting to a heatsink
