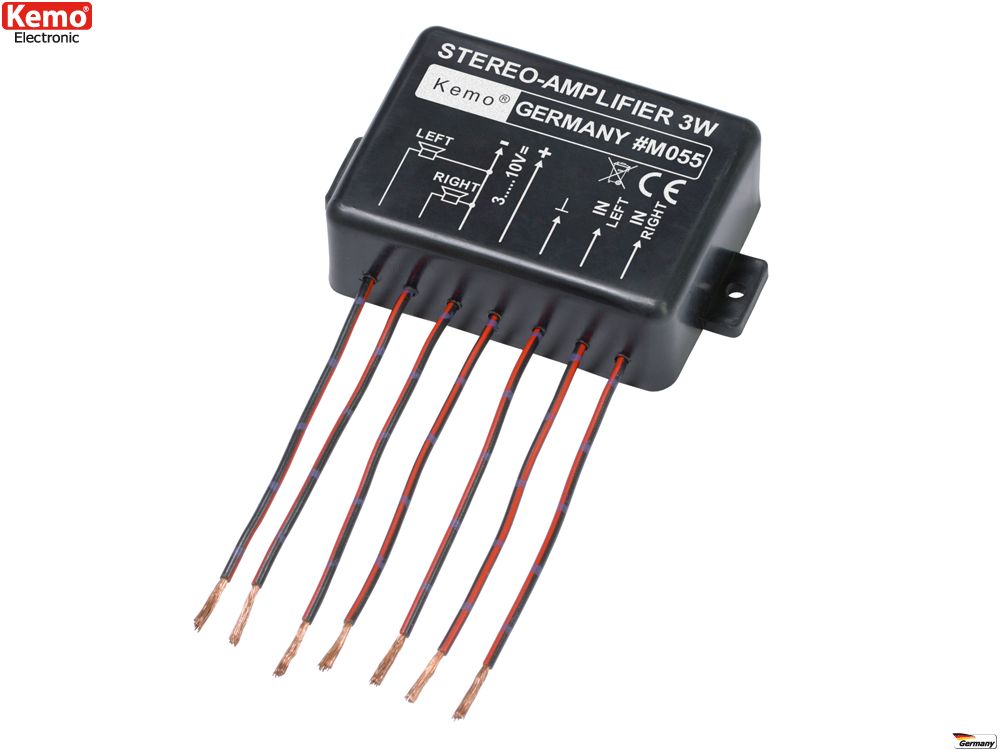

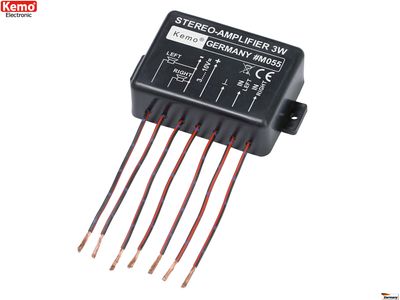

General-purpose 3W amplifier module. Two channels i.e. stereo. Use a preamplifier if necessary (see below).

Features

• Normally for 9VDC supply.

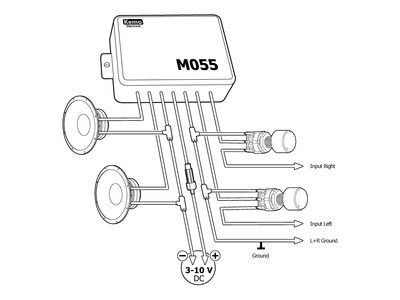

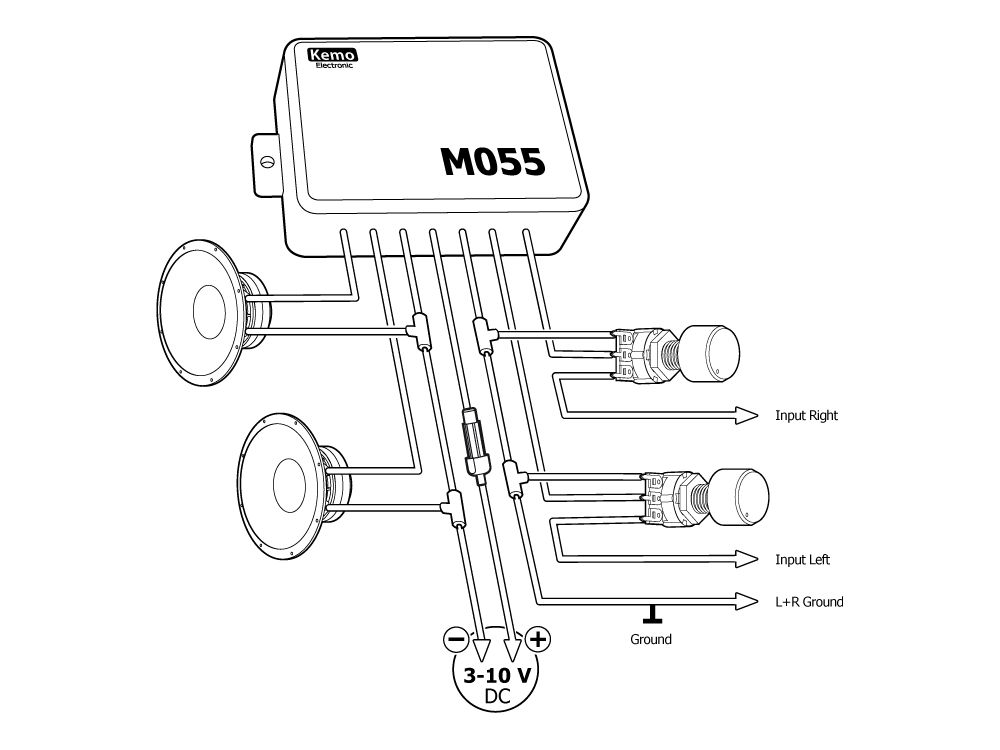

• Signal level adjustment with input-side potentiometers 10-100kOhm (not included)
• Waterproof enclosure.
• Suitable for headphones or speakers.
• Also for amplifying the headphone output signal to external speakers.
• Connection via wires.

Technical specifications

Installation instructions

Always use a fuse Kemo M055 between the battery and the device; do not connect directly to the battery terminals. The recommended value is 1A.

If the device becomes extremely hot, mount it to a heatsink. Use thermal paste in between.
