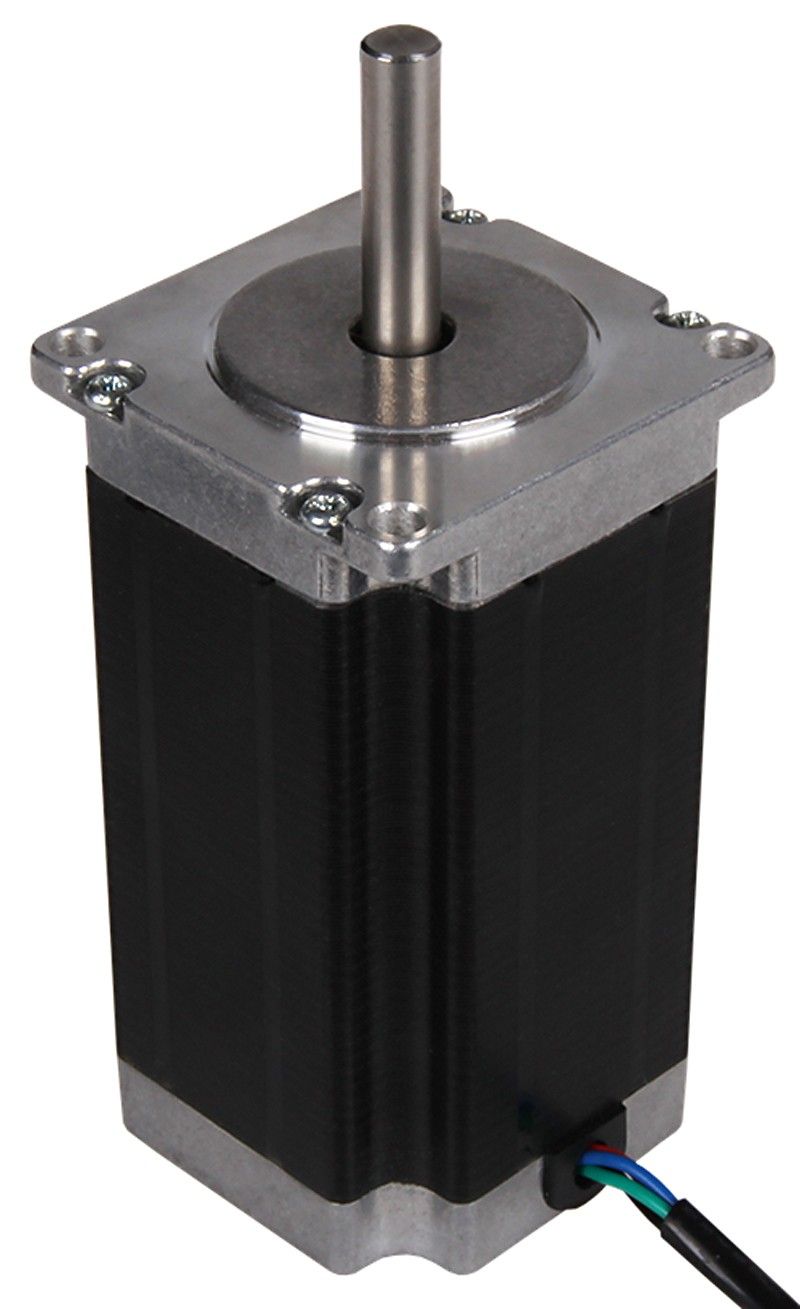

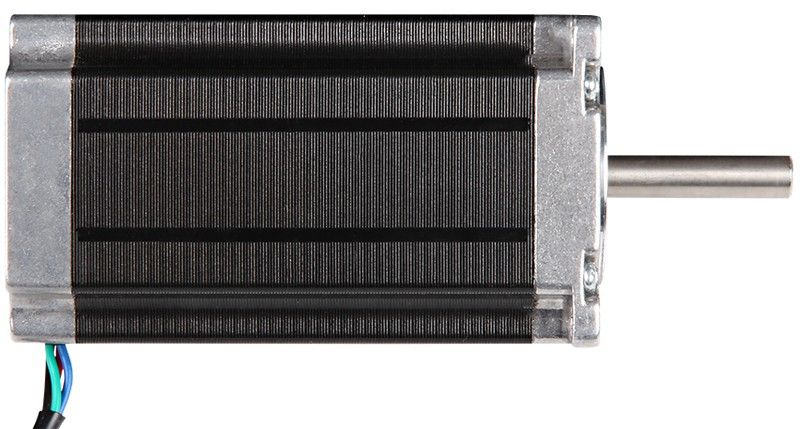

This NEMA-23 stepper motor suits for your project, anyhow with CNC or robotics, if you're looking for high performance. This motor stands out with its high holding torque of 3 Nm.

Specs

• Specification: 57SHD4934-34B
• Shaft dimensions: Ø 8,0 x 32 mm (single shaft)
• Connection: 4 -core cable
• Steps per revolution: 200
• Holding torque: 3 Nm
• Rated voltage: 8.4 V
• Rated current: 3 A
• Step angle: 1.8°
• Amount of phases: 2
• Phase resistance: 2.8 Ω
• Phase inductivity: 4.2 mH
• Isolation resistance: Min. 100 MΩ at 500 V DC
• Isolation class: B (130°)
• Rotational inertia: 260 g·cm²
• Detent torque: 0,04 Nm
• Operating temperature: -10 - 50 °C

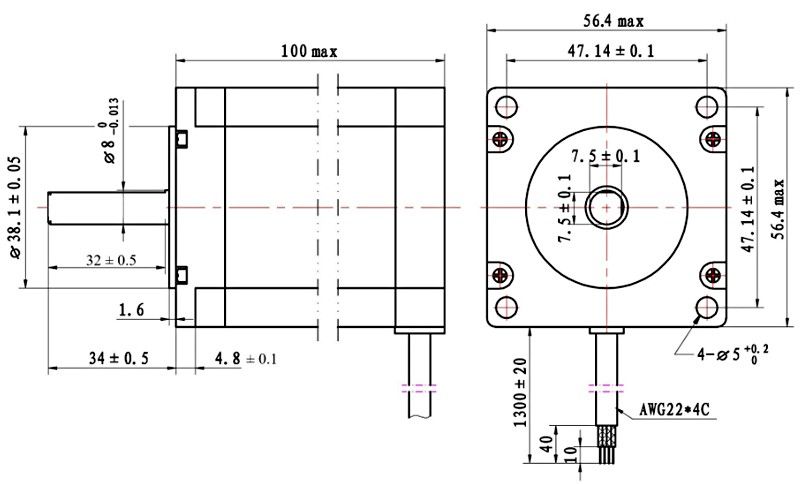

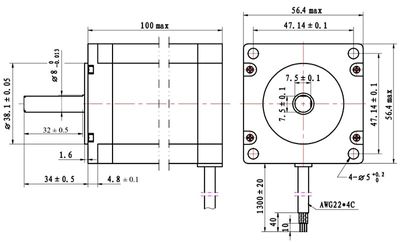

• Dimensions: 56 x 56 x 101 mm
• Weight: 1,45 kg
• Items Shipped: NEMA23-03 stepper motor
• EAN: 42502368188801
