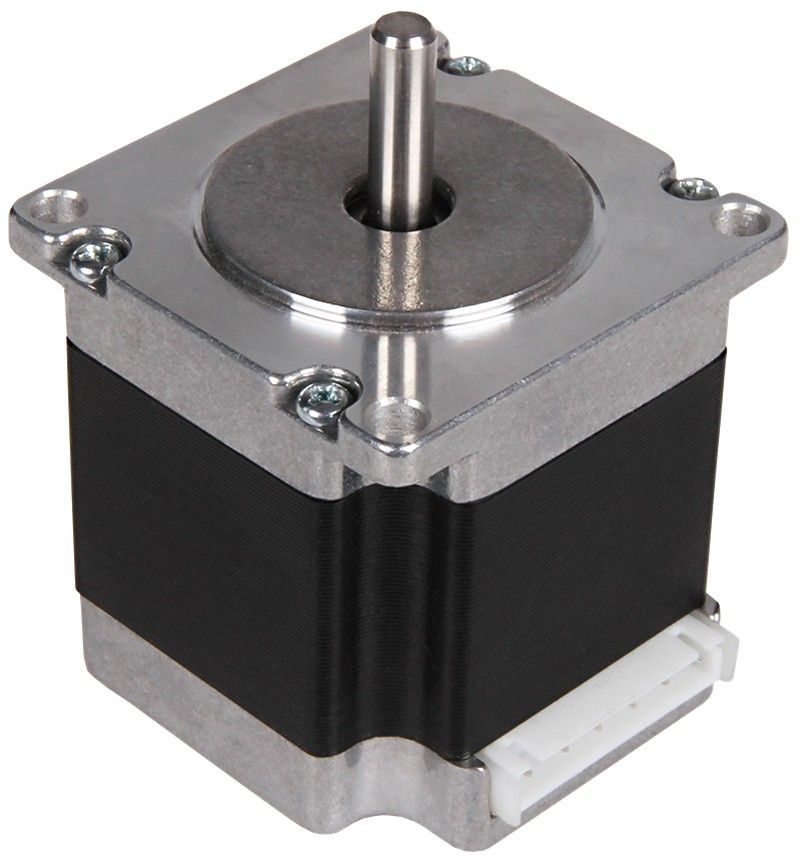

This stepper motor can be used optimally for tasks in the areas of automation, CNC (f.e. milling machines, etc.), or robotic. As a stepper motor with 2 phases, it turns 1.8° per step and ensures steady movement and optimum holding torque of 1.2 Nm.

Specifications

• Specification: 57SHD0408-21
• Shaft dimensions: Ø 6,35 x 20 mm (single shaft)
• Connection: 6-pole connector (JST), 4 Pins used
• Steps per revolution: 200
• Holding torque: 1.2 Nm
• Rated voltage: 3 V
• Rated current: 2.5 A
• Step angle: 1.8 °
• Amount of Phases: 2
• Phase resistance: 1.2 Ω
• Phase inductivity: 4.2 mH
• Isolation resistance: Min. 100 MΩ at 500 V DC
• Isolation class: B (130°)
• Rotational inertia: 260 g·cm²
• Detent torque: 0.04 Nm
• Operating temperature: -10 - 50 °C

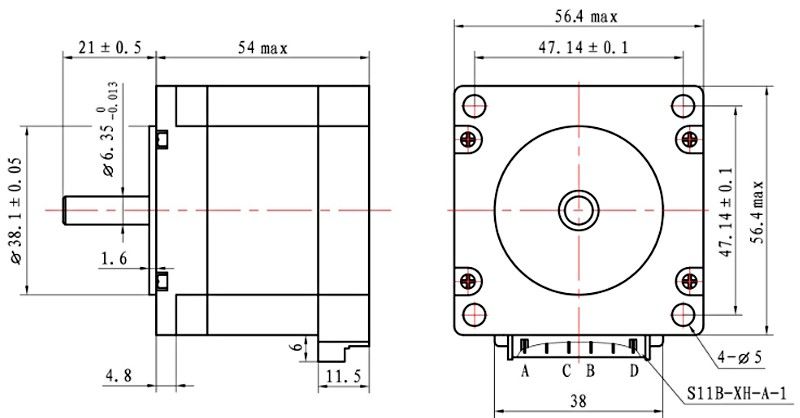

• Dimensions: 56 x 56 x 56 mm
• Weight: 0,65 kg
• Items Shipped: NEMA 23-02 stepper motor
• EAN: 4250236818795
