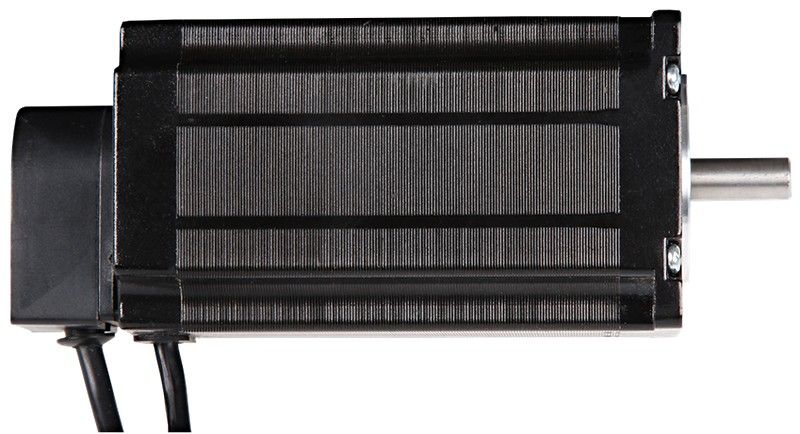

This NEMA motor meets all requirements. As a two-phase stepper motor it turns 1.8° per step and ensures smooth motion and an optimal holding torque of 3 Nm. With a feedback loop the motor controller detects and verifies that the number of steps is correct. It includes a sensor-equipped closed loop that improves positioning accuracy and prevents step loss within physical limits. Thus, this NEMA23 motor combines the advantages of stepper and servo motor technology.

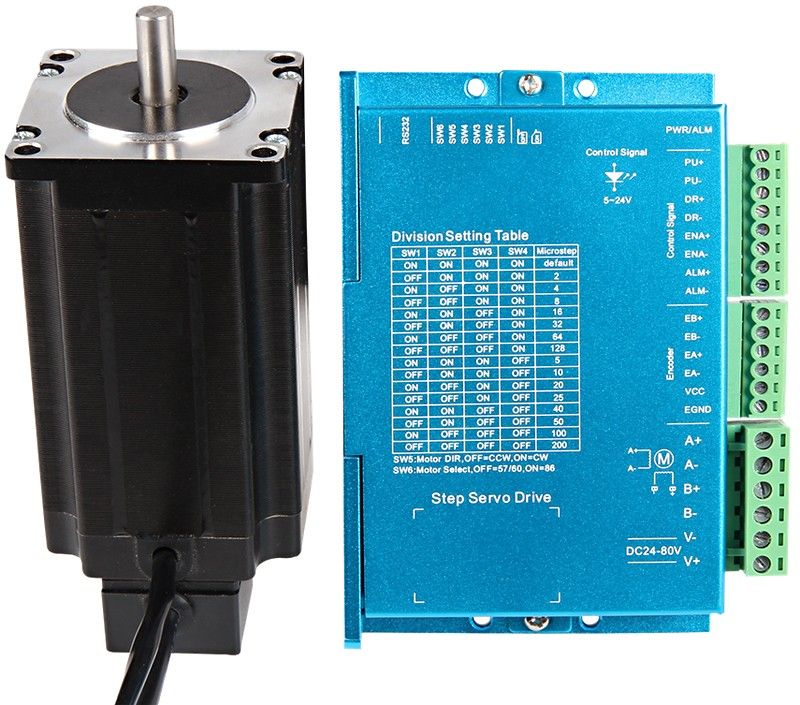

Special feature: A closed-loop stepper motor driver is already included in the delivery.

Specs

• Model: 57SHD4931-20BQ
• Shaft diameter: Ø 8 x 18 mm (single shaft)
• Connection: cable (motor), 4-wire cable (encoder).
• Steps per revolution: 200
• Holding torque: 3 Nm
• Rated voltage: 3.15 V
• Rated current: 4.2 A
• Step angle: 1.8°
• Number of phases: 2
• Phase resistance: 0.75 Ω
• Phase inductance: 2.8 mH
• Insulation resistance: Min. 100MΩ 500 V DC
• Insulation class: B (130°)
• Rotor inertia: 650 g-cm².
• Detent torque: 0.1 Nm
• Operating temperature: -10 - 50 °C

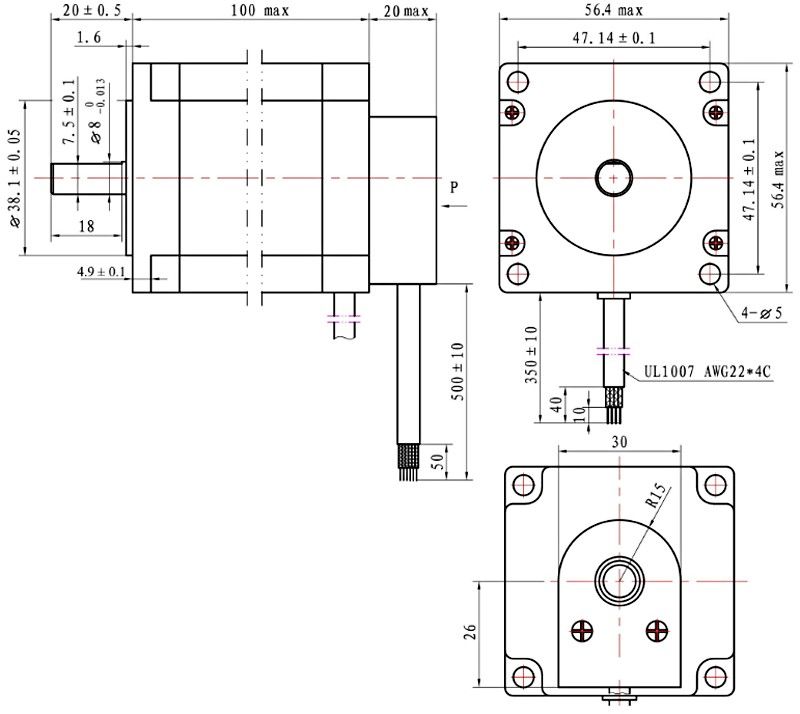

• Dimensions: Dimensions: 56 x 56 x 120 mm
• Weight: 1.4 kg

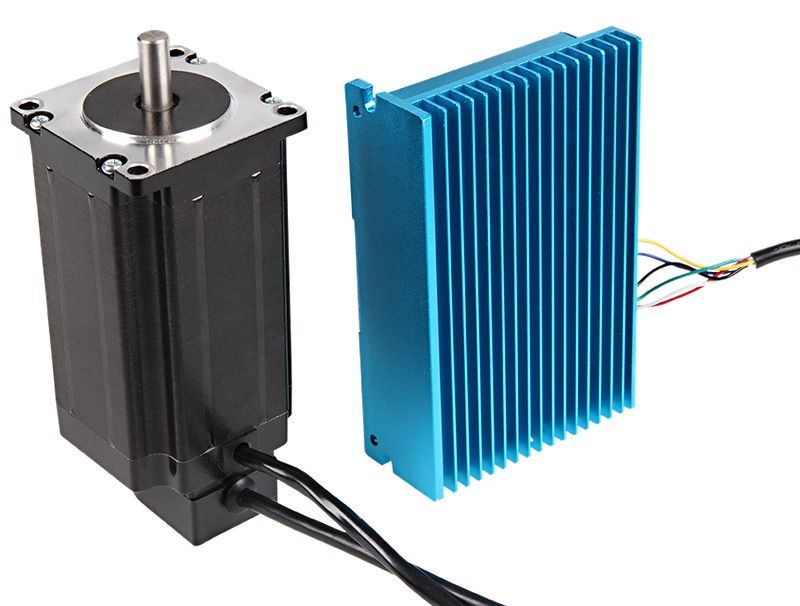

• Delivered items: NEMA23-04 CL-stepper motor, CL-stepper motor driver module.
• EAN: 4250236818818
