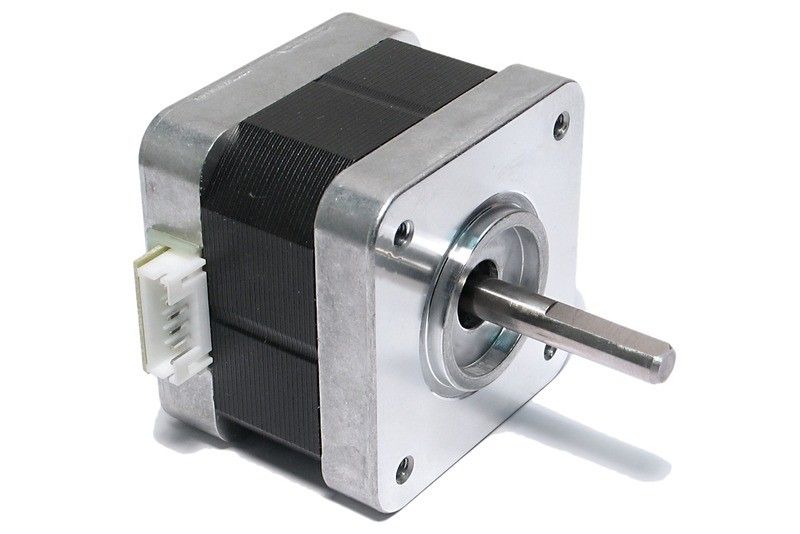

STEPPER MOTOR NEMA17 24V 0,7A 0,9ast

In stock 86 pcs

SKU#: ASMOT-17PY-Z049B

STEPPER MOTOR NEMA17 24V 0,7A 0,9ast

STEPPER MOTOR NEMA17 24V 0,7A 0,9ast

STEPPER MOTOR NEMA17 24V 0,7A 0,9ast

In stock 86 pcs

SKU#: ASMOT-17PY-Z049B

control: bipolar (connector has center taps so bipolar half coil possible)
step angle: 0,9° eli 400-askelta per kierros
body dimensions: 42 x 42 x 34 mm
center flange: 22 x 2 mm
mounting: M3 x 4 mm (31 x 31 mm)
5 x 24 mm shaft with D-flat
rated current: 0,7A
coil resistance: 6,2ohm
holding torque: 270mNm
rotor inertia: 37gcm²

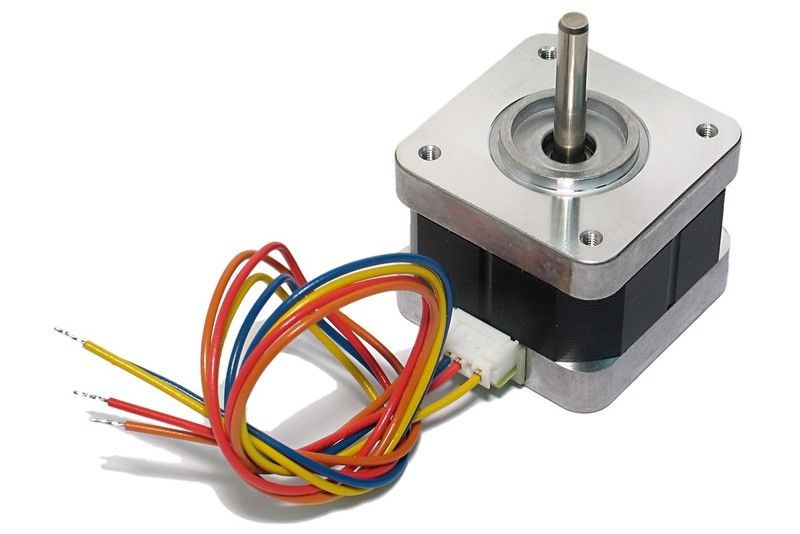

four 30cm wires with a 6-pin connector

16,20 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

control: bipolar (connector has center taps so bipolar half coil possible)
step angle: 0,9° eli 400-askelta per kierros
body dimensions: 42 x 42 x 34 mm
center flange: 22 x 2 mm
mounting: M3 x 4 mm (31 x 31 mm)
5 x 24 mm shaft with D-flat
rated current: 0,7A
coil resistance: 6,2ohm
holding torque: 270mNm
rotor inertia: 37gcm²
four 30cm wires with a 6-pin connector

Product Information

Availability In stock
Product path Home Components Electromechanical Components Engines Stepper Motors STEPPER MOTOR NEMA17 24V 0,7A 0,9ast
SKU ASMOT-17PY-Z049B
Attributes
- Size category NEMA17
- Weight 200g
- Manufacturer's model Minebea 17PY-Z049B
- Click for more details http://www.eminebea.com/en/product/rotary/steppingmotor/hybrid/standard/17py-z.shtml
