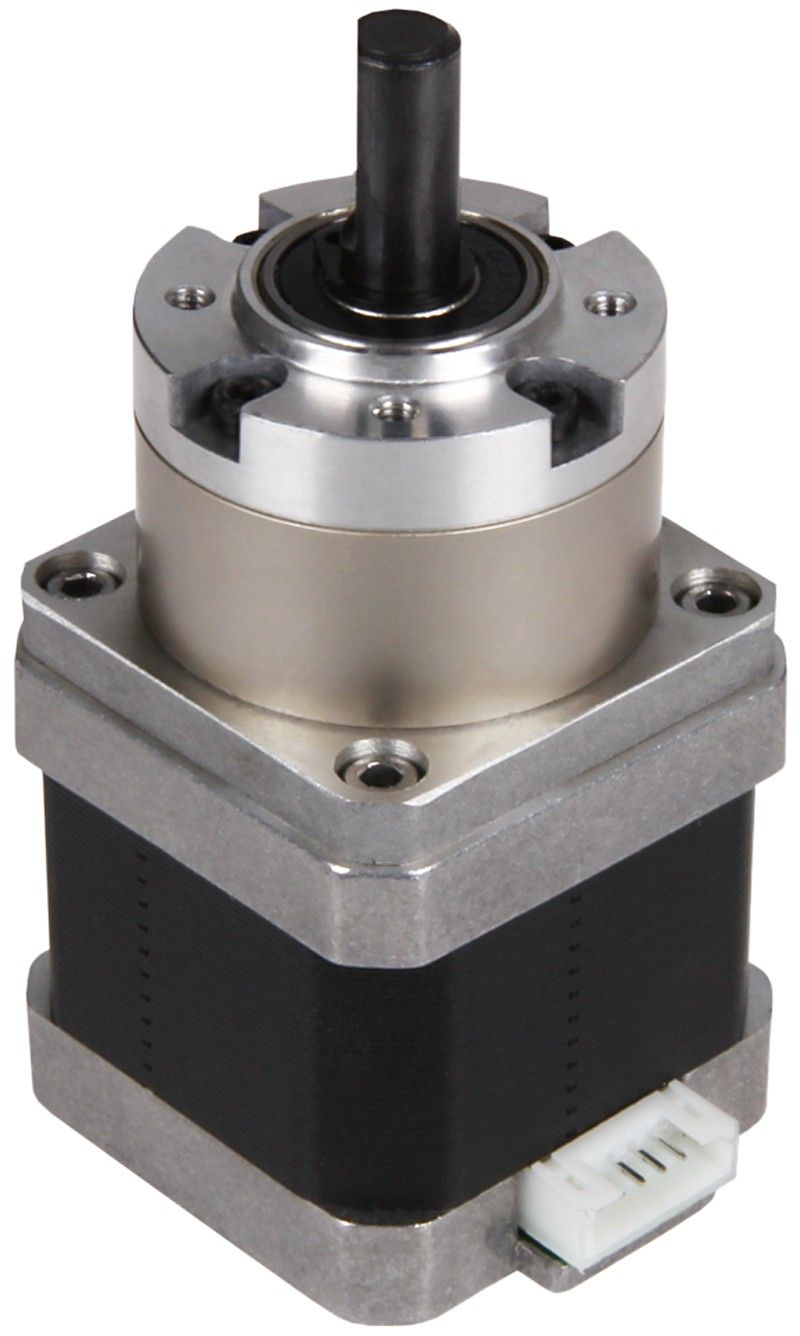

This compact stepper motor, featuring a 5:1 gear ratio, is suitable for applications that require a precise and efficient stepper motor.

Specifications

• Product description: 42SHD0229-5G
• Shaft dimensions: Ø 8 x 15 mm (single shaft)
• Connection: 6-pin connector (JST), 4 pins used
• Steps per revolution: 200 (motor shaft), 1000 (gearbox shaft)
• Gear ratio: 5 : 1
• Holding torque with gearbox: 1,68 Nm
• Rated voltage: 2,8 V
• Rated current: 1,68 A
• Step angle (gearbox shaft): 0,36°
• Number of phases: 2
• Phase resistance: 1,65 Ω
• Phase inductance: 3,2 mH
• Insulation resistance: at least 100 MΩ at 500 V DC
• Insulation class: B (130°)
• Rotor inertia: 75 g·cm²
• Operating temperature: -10 – 50 °C

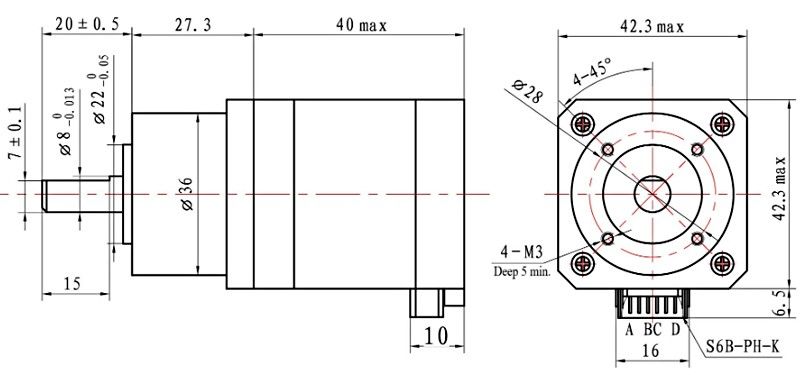

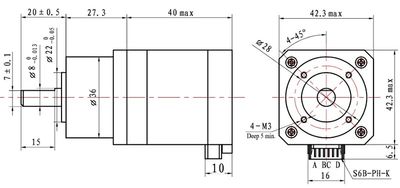

• Dimensions: 42 x 42 x 70 mm
• Delivery includes: NEMA 17-05 GM stepper motor and connection cable
• EAN: 4250236818788
