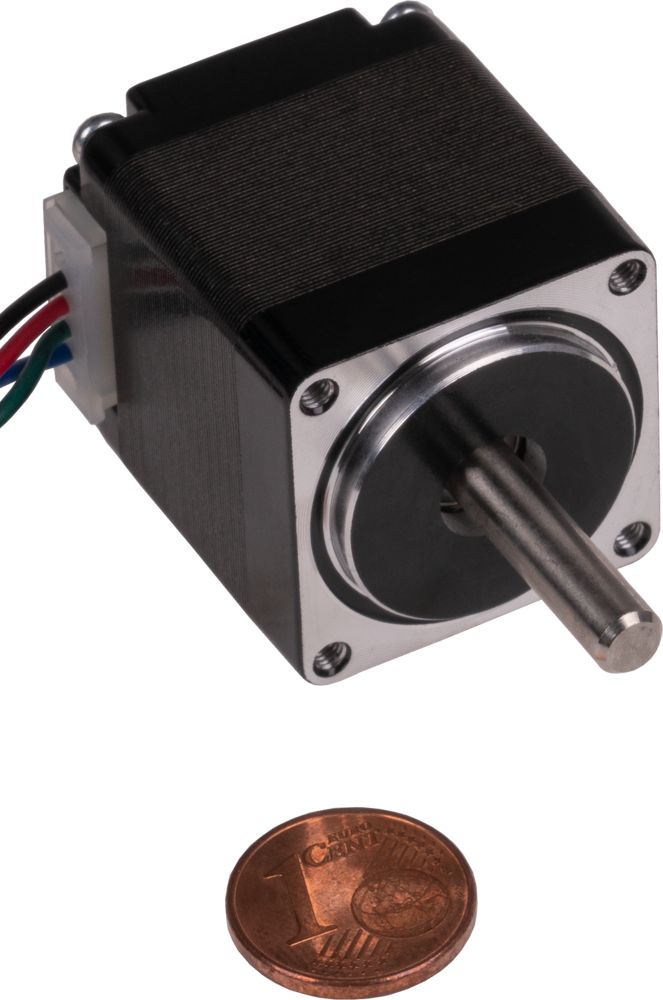

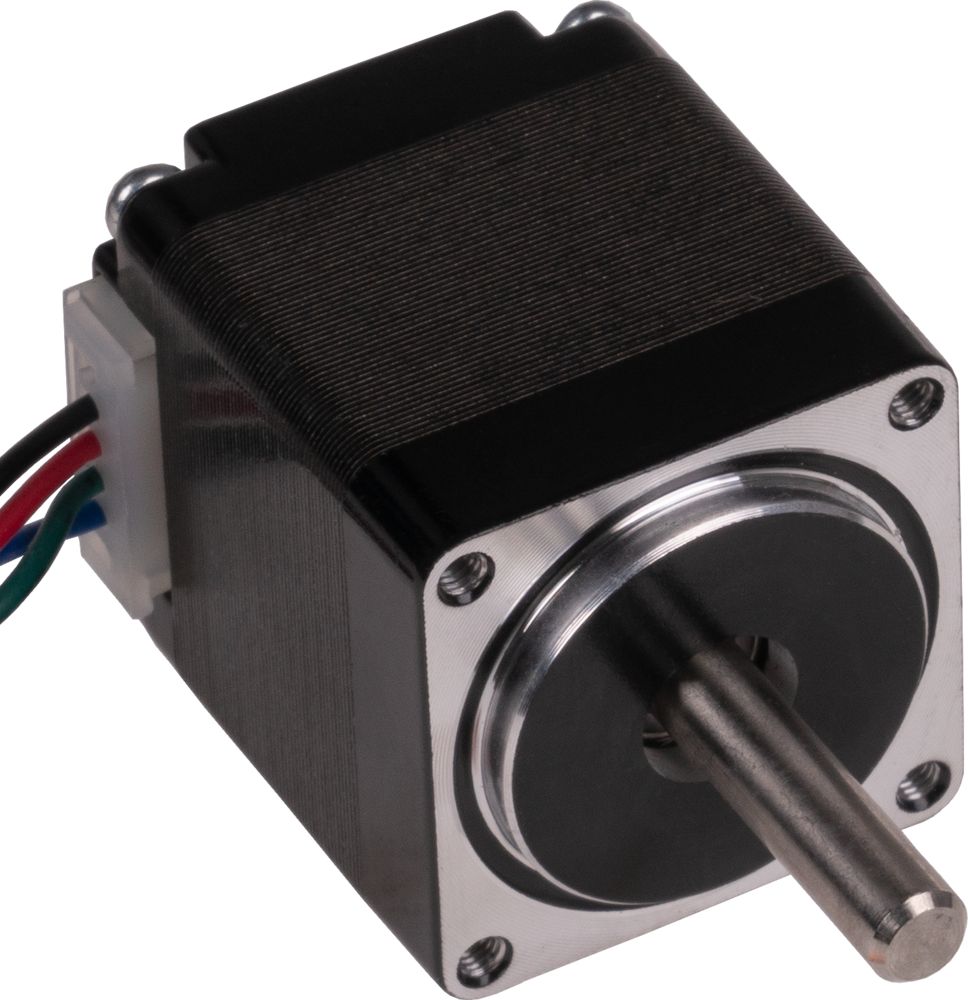

NEMA 11 series are very small high torque stepper motors that can reach speeds of up to 3000 rpm. These motors are often used in the model making and maker scene as well as in the industrial environment (Positioning of optics, dosing pumps, interlocks, etc.).

Specifications

• Shaft dimensions: Ø 5 x 18 mm
• Connection: 4 cables
• Holding torque: 55 mNm
• Rated voltage: 5.0 V
• Rated current: 0.42 A
• Step angle: 1.8 ° ±5 %
• Number of Phases: 2
• Phase resistance: 11.9 Ω
• Phase inductivity: 7.8 mH
• Isolation resistance: 100 MΩ min. @500 V DC
• Isolation class: B (130°C)
• Rotational inertia: 9 g·cm²
• Detent torque: 5 mNm
• Permitted operating temperature: -10 to 50 °C
• Dimensions: 28 x 29 x 32 mm
• Weight: 120 g
• Items Shipped: NEMA 11 stepper motor, connection cable
• EAN: 4250236821719
