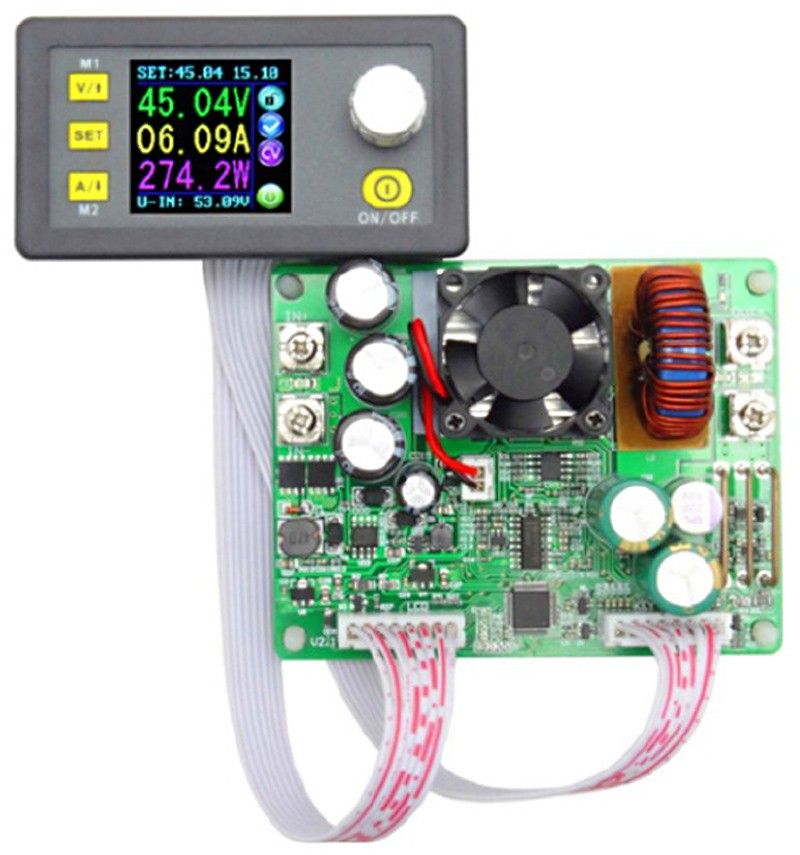

• STEP-DOWN = the input voltage is always higher than the output voltage
• all values adjustable, additionally a power display
• two memory slots for settings
• output on/off button
• graphical LCD display with backlight
• detachable wire connector with screw terminals
• input voltage range: 6-60VDC
• output voltage range: 0-50VDC maks. 15A (CVCC, min. 0,01V, min. 0,001A)
• user interface:
  • dimensions: 80 x 42 x 45 mm
  • panel cutout: 72 x 39 mm
  • required depth in enclosure: 34 mm
• expansion board:
  • dimensions: 91 x 67 x 40 mm
  • connects to the user interface module (like DPS5005)
  • wire connections are made here

Easily build a power supply for your bench. See a purpose-made metal enclosure among the additional products.

Note! Windows and Android apps are available for download from this link.

Useful links

• https://gojimmypi.blogspot.com/2017/04/opendps-with-dps5015.html
• https://github.com/kanflo/opendps
• https://johan.kanflo.com/opendps-design/
• https://johan.kanflo.com/the-future-of-opendps/
