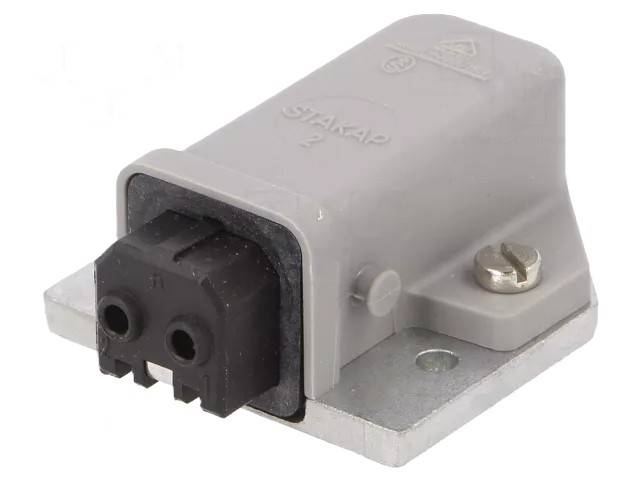

Hirschmann STAKAP 2 panel connector, female, 2+PE
Hirschmann STAKAP 2 is an ST-series panel-mounted female power connector for industrial and equipment use. Its compact design, screw terminals and locking fastening make it a reliable solution for machines, control cabinets, lighting systems and mains-powered devices.
Features
- ST-series panel-mounted power connector
- Female contact (female)
- 2 poles + protective earth (PE)
- Flange mounting with two mounting holes
- Screw terminals for wires
- Locking latch prevents accidental disconnection
- Durable polyamide housing
- Suitable for industrial, automation and equipment construction applications
Technical specifications
- Manufacturer: Hirschmann / Belden
- Model: STAKAP 2
- Manufacturer product code: 930329106
- Connector type: Panel-mounted power connector
- Gender: Female
- Number of poles: 2 + PE
- Rated voltage: 250 VAC/DC
- Operating voltage: 230 VAC/DC
- Rated current: 16 A AC / 10 A DC
- Connection type: Screw connection
- Conductor cross-section: 0.25–1.5 mm²
- Protection class: IP20 (installed), IP54 with compatible mating piece
- Operating temperature: -30...+90 °C
- Color: Gray / black
Applications
The STAKAP 2 is suitable for mains power connections in machines, luminaires, small motors, power supplies and automation systems. The connector forms a compatible pair with the Hirschmann STAS 20 male connector.
