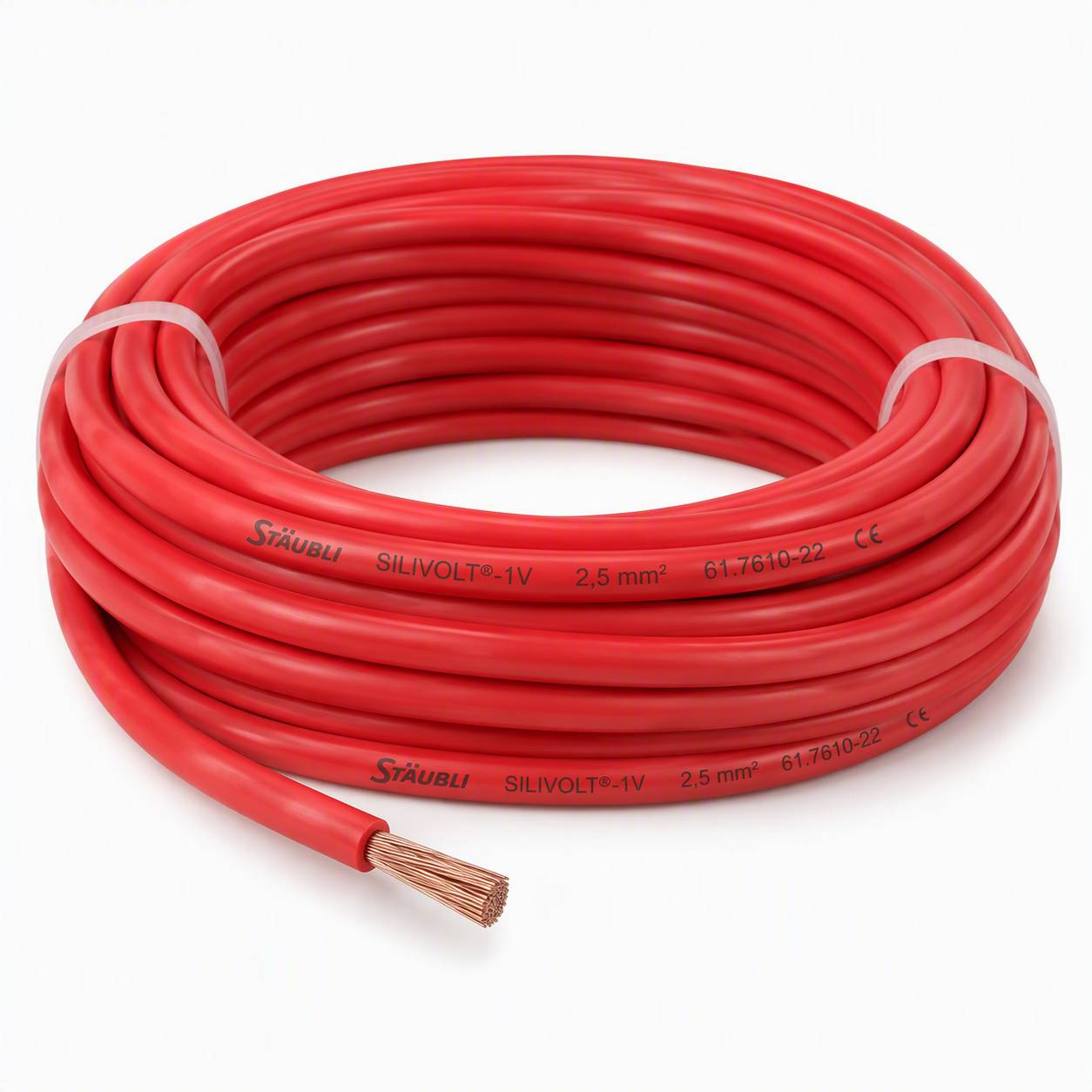

Stäubli 61.7610-22 Silivolt®-1V super flexible silicone cable 2,5 mm²

The Stäubli 61.7610-22 is a highly flexible Silivolt®-1V series silicone-insulated single-core cable for demanding measurement, testing, laboratory and industrial applications. The cable's 2,5 mm² copper conductor consists of a fine-stranded construction (651 x 0,07 mm), ensuring exceptional flexibility and long life under repetitive bending.

Reinforced silicone insulation withstands high temperatures, mechanical stress and aging. The halogen-free construction makes the cable an environmentally friendly option for professional and industrial use.

Features

• Highly flexible fine-stranded copper conductor
• Reinforced silicone insulation from the Silivolt®-1V series
• Rated voltage up to 1500 V DC
• Wide operating temperature range
• Good abrasion, tear and aging resistance
• Halogen-free construction
• Suitable for measurement, testing and industrial use

Technical data

• Manufacturer: Stäubli
• Manufacturer part number: 61.7610-22
• Product series: Silivolt®-1V
• Conductor cross-section: 2,5 mm²
• AWG size: 13 AWG
• Conductor material: Copper
• Stranding: 651 x 0,07 mm
• Insulation material: Silicone
• Color: Red
• Outer diameter: 4,6 mm
• Rated voltage: 1500 V DC
• Operating temperature: -50 °C ... +150 °C

Applications

• Measurement and testing equipment
• Laboratory cabling
• High-voltage test systems
• Industrial automation
• Portable measuring instruments
• Stäubli and MC connector systems
