Dinkle 0126-11-B3455002 lever-actuated inline connector, 2-pole

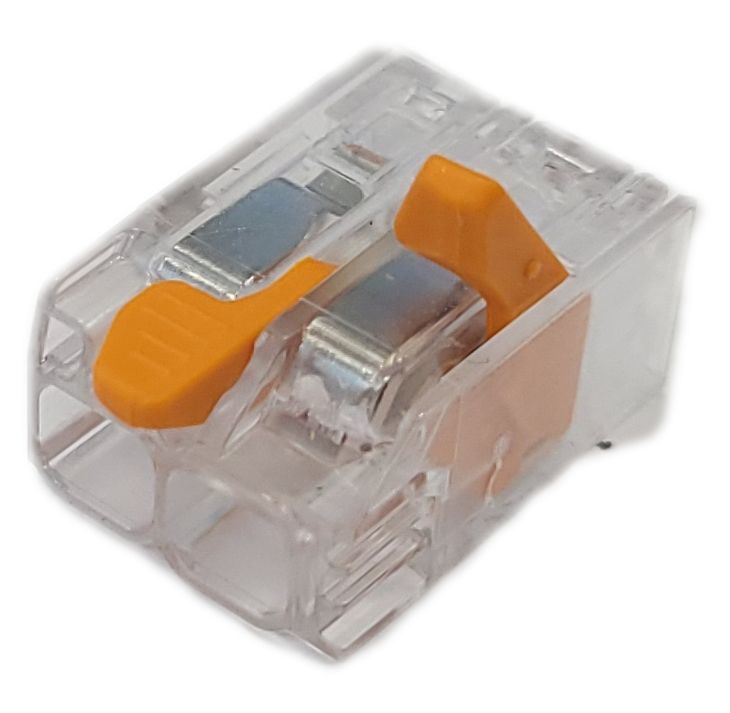

Dinkle 0126-11-B3455002 is a compact 2-pole lever-locking inline conductor connector that enables quick and tool-free conductor termination. The connection is made by lifting the lever, placing the conductor into position and closing the lever back down. Suitable for electrical installations, control cabinets, automation and general wiring applications.

Features

• 2-pole lever-actuated inline connector
• Fast tool-free installation
• Transparent housing and orange levers
• Suitable for solid and stranded conductors
• Contacts made of tinned copper alloy
• Touch-protected design
• RoHS- and REACH-compliant

Technical specifications

• Manufacturer: Dinkle
• Product series: 0126-11XX
• Manufacturer model: 0126-11-B3455002
• Number of poles: 2
• Conductor cross-section: 0,14...4 mm²
• AWG range: 24...12 AWG
• Rated current: 32 A (IEC)
• Rated voltage: 450 V (IEC)
• UL rating: 600 V / 20 A
• Stripping length: 12...14 mm
• Operating temperature: -40...+85 °C
• Flammability rating: UL94 V-2
• Insulation material: Polycarbonate (PC)
• Contact material: Tinned copper alloy

Applications

• Electrical and building technology
• Control cabinets and automation
• Machine building
• LED and lighting installations
• Quick conductor splices and branching

Installation: Lift the lever up, insert the stripped conductor into the connector and close the lever. The connection is immediately ready for use.
