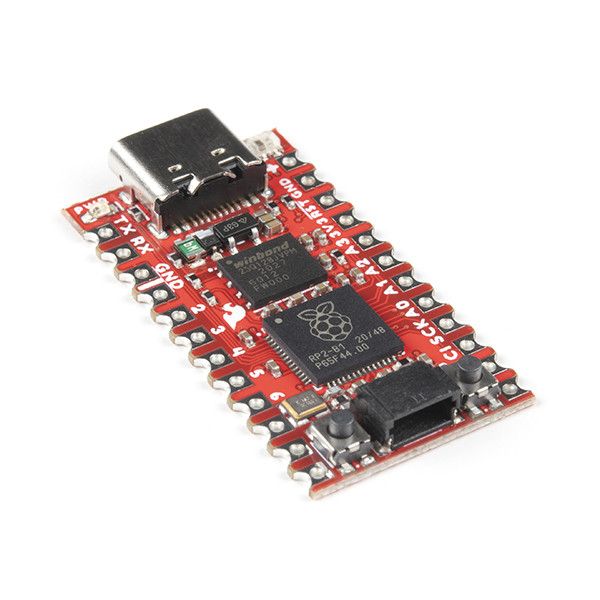

The SparkFun Pro Micro RP2040 is an affordable and high-performance development board with flexible digital connections and the Raspberry Pi Foundation RP2040 microcontroller. In addition to the familiar Pro Micro footprint, the PCB also includes a WS2812B addressable LED, a power button, a reset button, a Qwiic connector, USB-C, a resettable PTC fuse, and castellated pads.

The RP2040 uses two ARM Cortex-M0+ processors (up to 133 MHz) and has the following features:

• 264 kB of embedded SRAM in six banks.
• Six IOs dedicated to SPI flash (supports XIP).
• 30 multi-function GPIOs
  • Dedicated hardware for commonly used peripherals.
  • Programmable IO for extended peripheral support.
  • Four-channel ADC with internal temperature sensor, 0,5 MSa/s, 12-bit conversion.
• USB 1.1 host/device

The RP2040 is supported by both C/C++ and MicroPython toolchains, including easy access to runtime debugging. It has UF2 boot and drag-and-drop routines built into the chip. The built-in USB can operate as both device and host. It features two symmetric cores and high internal bandwidth, making it useful for signal processing and video. The chip has a large amount of internal RAM, and the board also includes a 16 Mb external QSPI flash chip for storing program code.

Features

General RP2040 Features

• Two Cortex M0+ processors, up to 133 MHz
• 264 kB of embedded SRAM in 6 banks.
• 6 dedicated IOs for QSPI flash, supporting execute in place (XIP).
• 30 programmable IOs for extended peripheral support
• SWD connector
• Timer with 4 alarms
• Real-time clock (RTC)
• USB 1.1 host/device functionality
• Supported programming languages
• MicroPython C/C++

SparkFun Pro Micro - RP2040 Features

• Raspberry Pi Foundation RP2040 microcontroller.
• AP2112 3.3V regulator
• Supported programming languages
  • MicroPython
  • C/C++
• On-board USB-C connector for programming
  • USB 1.1 host/device functionality
• Built-in resettable PTC fuse
• PTH pads and castellated edges
• 20x multi-purpose GPIO pins ^[1]
  • 4x 12-bit ADC channels with internal temperature sensor, 0,5 MSa/s, 12-bit
  • 10x PWM channels
  • Serial peripherals
    • 2x UART
    • 1x ^I2C (Qwiic in use)
    • 1x SPI
• Buttons
  • Power
  • Reset
• LEDs
  • Power
  • WS2812 addressable LED
• 16MB external Flash memory
• Dimensions: 1.3in x 0.7in

Note: The GPIO pins are multiplexed, so you can reconfigure the pins for the digital interface of your choice! See the RP2040 datasheet for more information about the pins exposed on the board.
