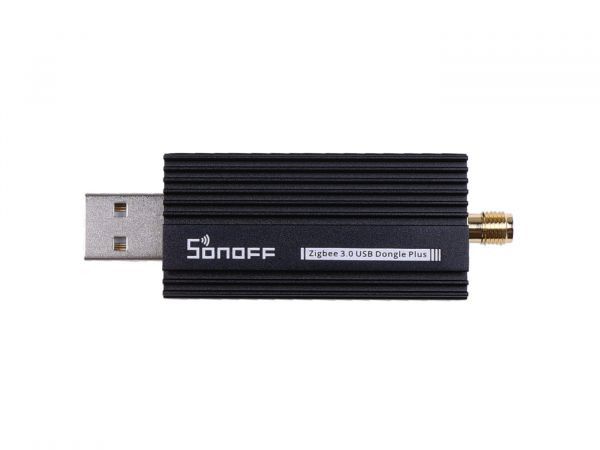

Zigbee 3.0 USB Dongle Plus-ZBDongle-E is a universal Zigbee USB stick. It is based on the EFR32MG21 and comes preinstalled with Zigbee coordinator firmware based on EZNet 6.10.3. It can be used as a Zigbee gateway in Home Assistant, openHAB, Zigbee2MQTT or other open source platforms for local control of all Zigbee devices. It supports a wide range of devices such as switches, temperature and humidity sensors, wireless door-/window sensors, etc., and it can manage various subdevices from different brands or flash router firmware to extend the network range.

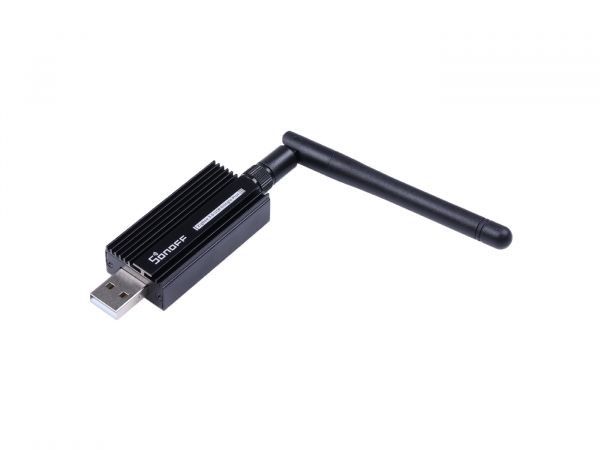

It is based on the EFR32MG21 and comes preinstalled with Zigbee coordinator firmware based on EZNet 6.10.3. It has an SMA connector for an external swivel antenna with +20 dBm output gain to increase signal range. It supports an operating temperature of -10°C~40°C and an operating altitude ≤2000m, so it is intended for indoor use. The aluminum enclosure effectively reduces signal interference caused by peripherals.
You can also develop with this on different platforms such as Linux, Ubuntu, Raspbian, Windows, macOS (Windows and macOS require installation of the corresponding driver). Click here for the SONOFF Dongle Plus guide for using the device with Home Assistant.
Applications
- Universal Zigbee gateway in Home Assistant
- Extend the network range
Features
- Perfect for home automation: Zigbee2MQTT, loBroker, Domoticz Zigbee Plugin, Jeedom Zigbee Plugin.
- High communication quality: SMA connector for external swivel antenna, +20dBm output gain, wider signal coverage.
- Support for multiple platforms: Linux, Ubuntu, Raspbian, Windows, macOS (Windows and macOS require the corresponding driver installation).
- Powerful MCU: EFR32MG21 is a 2.4 GHz wireless SoC optimized for line-powered ZigBee, Thread and Bluetooth network applications, including connected lighting, gateways, voice assistants and smart meters.
- Certifications: CE/FCC/RoHS
Specs
|
MCU
|
EFR32MG21
|
|
Serial Interface Protocol
|
EmberZNet (EZSP)
|
|
USB-Serial Chip
|
CH9102F
|
|
Input
|
5VDC 100mA Max
|
|
Output Power
|
20dBm(default)
|
|
Antenna
|
External antenna (Manual installation)
|
|
Zigbee
|
Zigbee 3.0(IEEE 802.15.4)
|
|
Security
|
WPA/WPA2
|
|
Flow Control
|
Software flow control
|
|
Encryption type
|
AES-128
|
|
Working temperature
|
-10°C~40°C
|
|
Working height
|
≤2000m
|

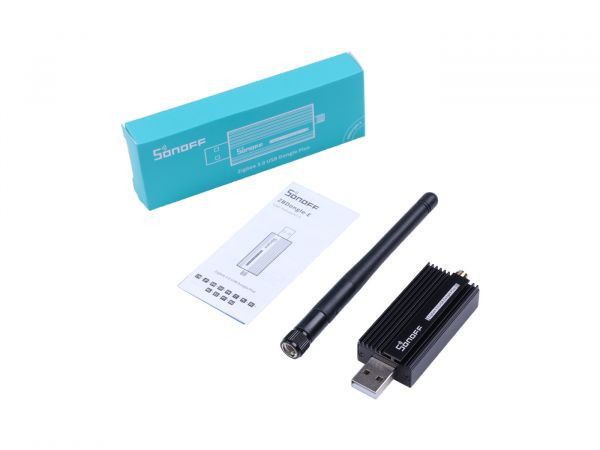

Delivery
- 1 x Zigbee 3.0 USB Dongle Plus–ZBDongle-E
- 1 x Antenna
- 1 x User Manual
