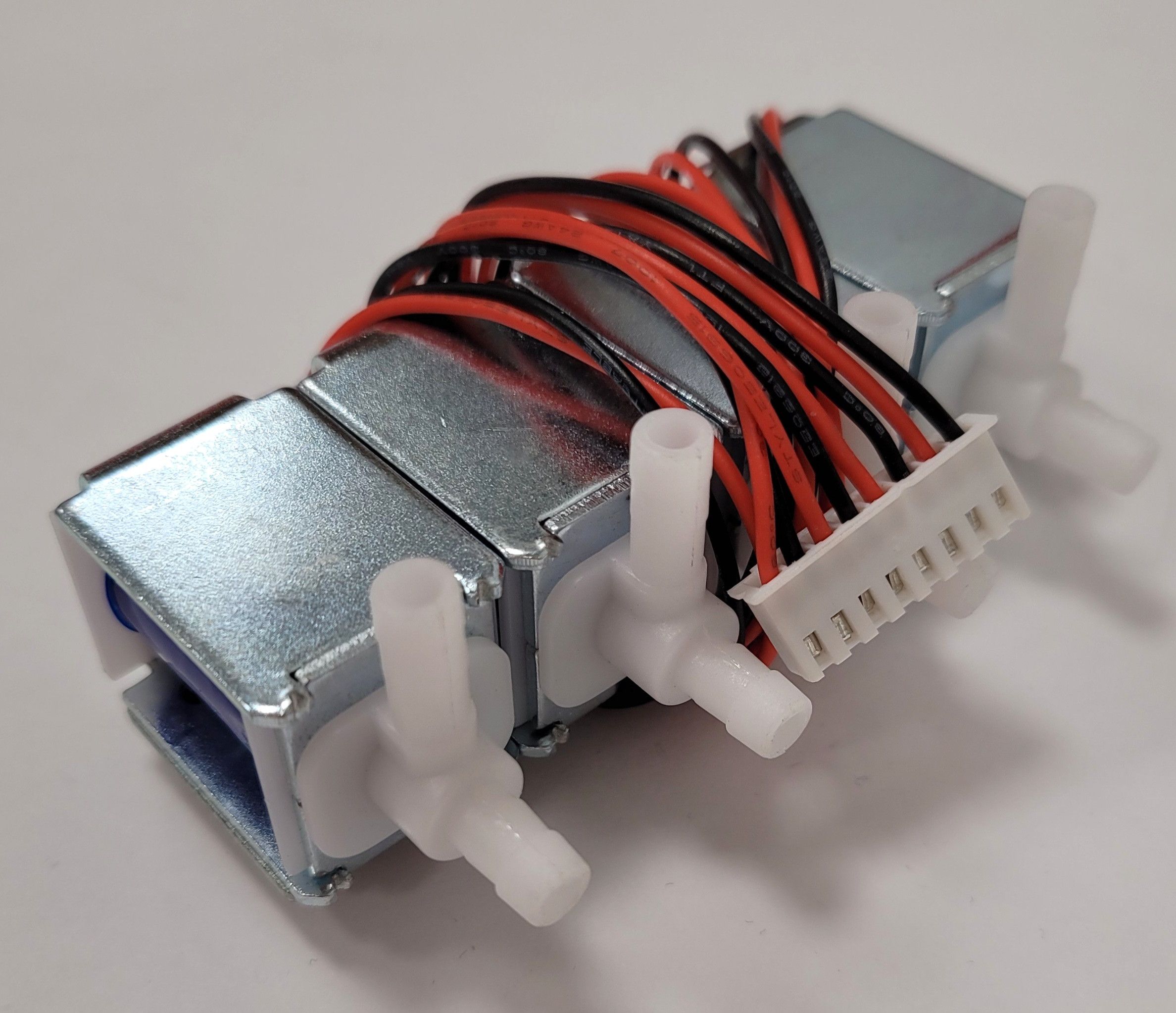

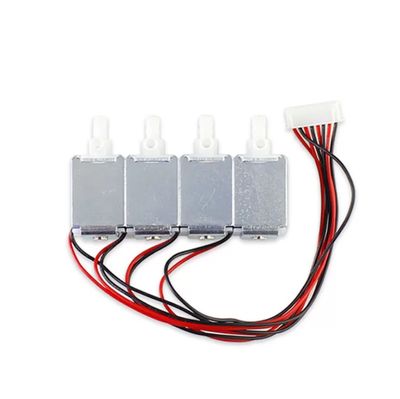

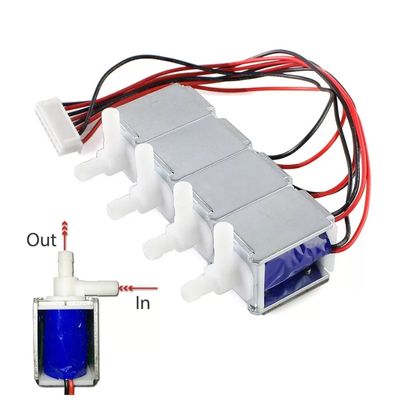

This is a DC12V independent four-way solenoid valve with one inlet and four air outlets. You can control each outlet separately, so an output can be used alone or together with the other four. It brings great convenience to your project. The inlet and outlet diameter is 5 mm. The solenoid valve is about 80 mm long and about 48 mm high, and can be used in many DIY projects, saving a lot of space. The solenoid valve has fixed mounting holes on both sides for easy attachment. Each outlet has a separate wire for control. How you use it is up to you.

Features

• This valve has one air inlet port and four air outlet ports
• The four air outlet ports can be controlled independently
• The diameter of the air inlet and outlet ports is 8 mm
• Each valve has a separate control wire

Specifications

• Operating voltage: DC 12 V
• Operating current: 0,2 A
• Rated voltage: DC 6,0 V DC 12,0 V
• Rated current: ＜280 mA ＜160 mA
• Pressure range: 0–450 mmHg
• Liquid: water/air
• Power: <3 W
• Operating temperature range: 0 ℃ ~55 ℃
• Service life: In a 500 cc tank, a loop test of 10 seconds fill and 5 seconds discharge is repeated over 50,000 times

Delivery

• 1 x DC12V four-way valve, independently controllable solenoid valve

Note the voltage spike caused by the solenoid in the control circuit
