Solar charging regulator for Dual Battery 16A

Name: Solar charging regulator for Dual Battery 16A
Brand: Kemo Electronic
SKU: KEMO-M174
Price: 34.50 EUR
Availability: InStock

In stock under 5 pcs

SKU#: KEMO-M174

Solar charging regulator for Dual Battery 16A

Solar charging regulator for Dual Battery 16A

In stock under 5 pcs

SKU#: KEMO-M174

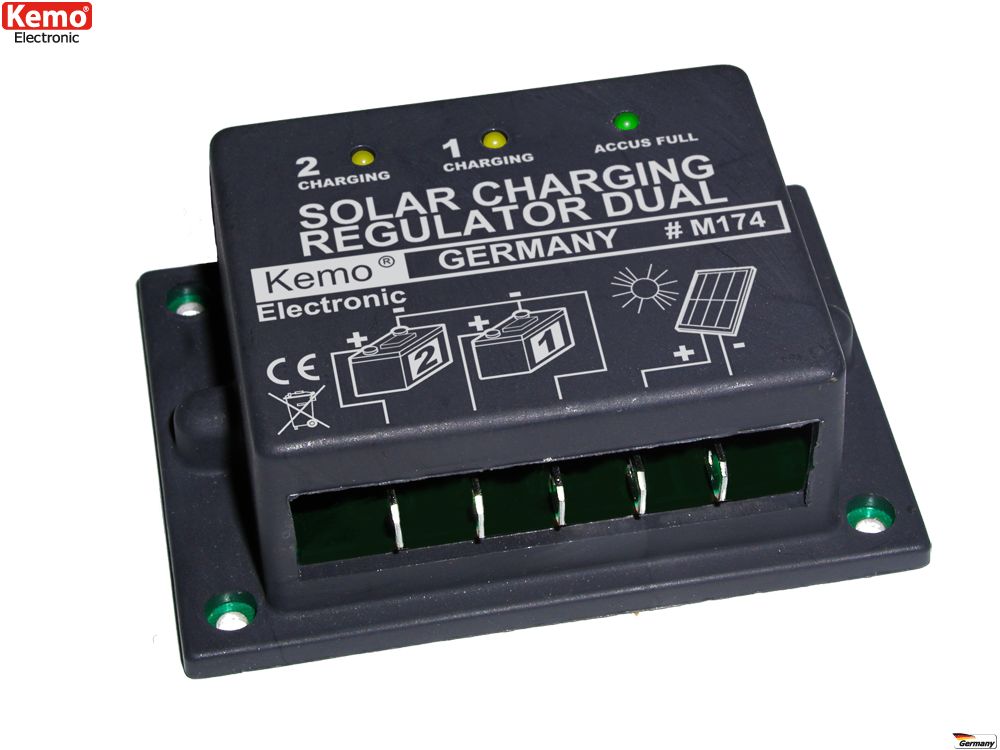

Kemo M174 - charge controller for a solar panel and one or two batteries. Max. 16A.

34,50 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

This solar cell or solar panel charge controller can be connected to a single 12VDC panel and 1-2 batteries. Two batteries are charged separately. Indicator LEDs show the charging status. Max 2x 8A or 1x 16A.

Connections with 6.3 mm spade connectors. The batteries' negative poles are connected together.

Technical data
Input voltage	solar panels 15 - 30 V/DC without load, 12 V/DC nominal voltage
Maximum charging current	total 16A (2 batteries, 8A each or one battery with both outputs connected in parallel 16A)

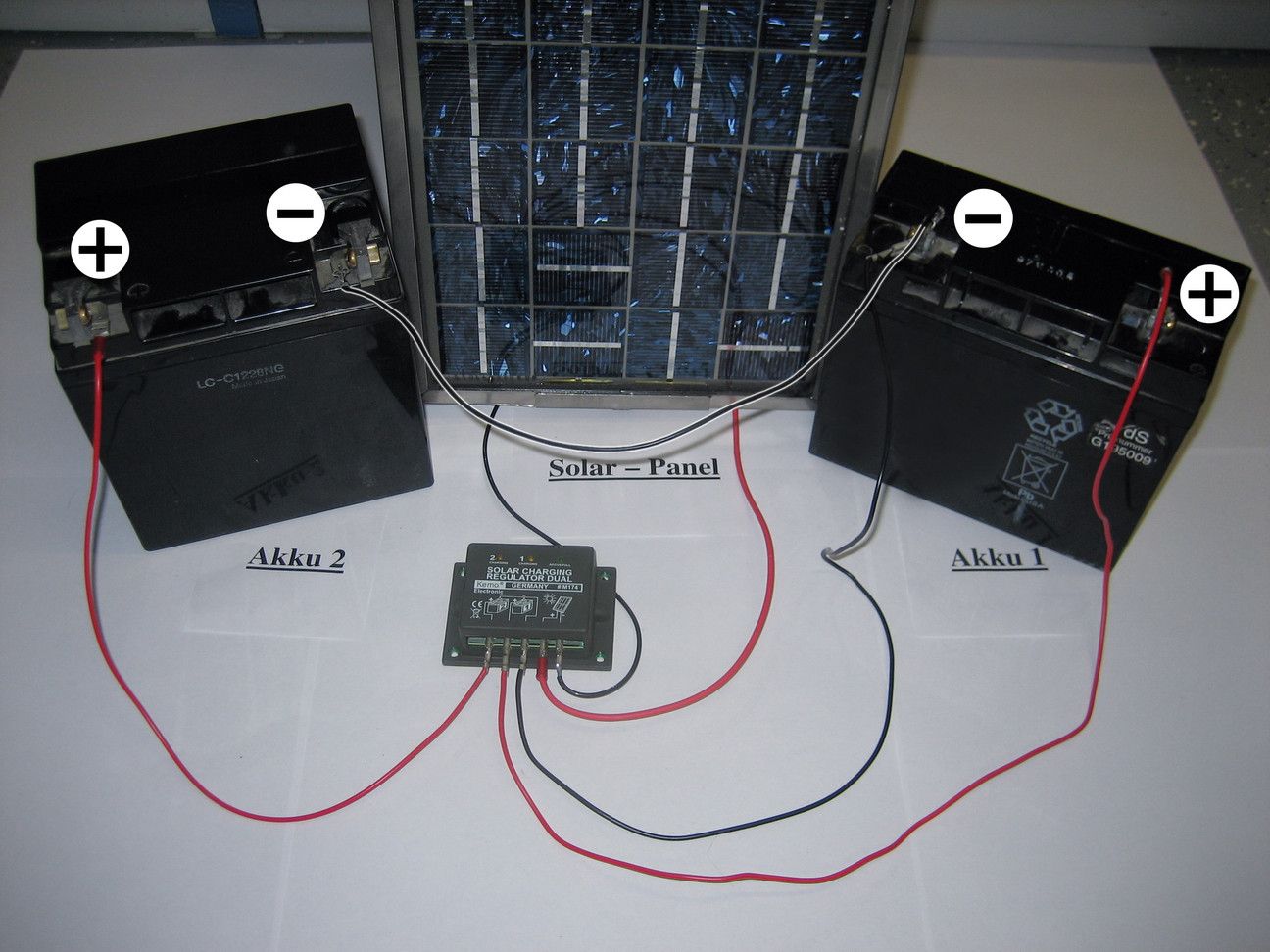

Connections	one or two 12V batteries. If only one battery is used, the outputs are connected in parallel.
Displays	each battery has its own "battery charging", one common "charge complete"
Cooling	For currents over 4A the module's base plate must be connected to a large heat sink (at least 300 cm2)
Fuse	Fast 16A (F16A) (not included)
Turn-on voltage	battery voltage below 12.9 V/DC (± 7%)
Turn-off voltage	battery voltage above 14.2 V/DC (± 7%) (fully charged)
Quiescent current (drawn from battery)	< 2 mA
Reverse polarity protection	No external diode required

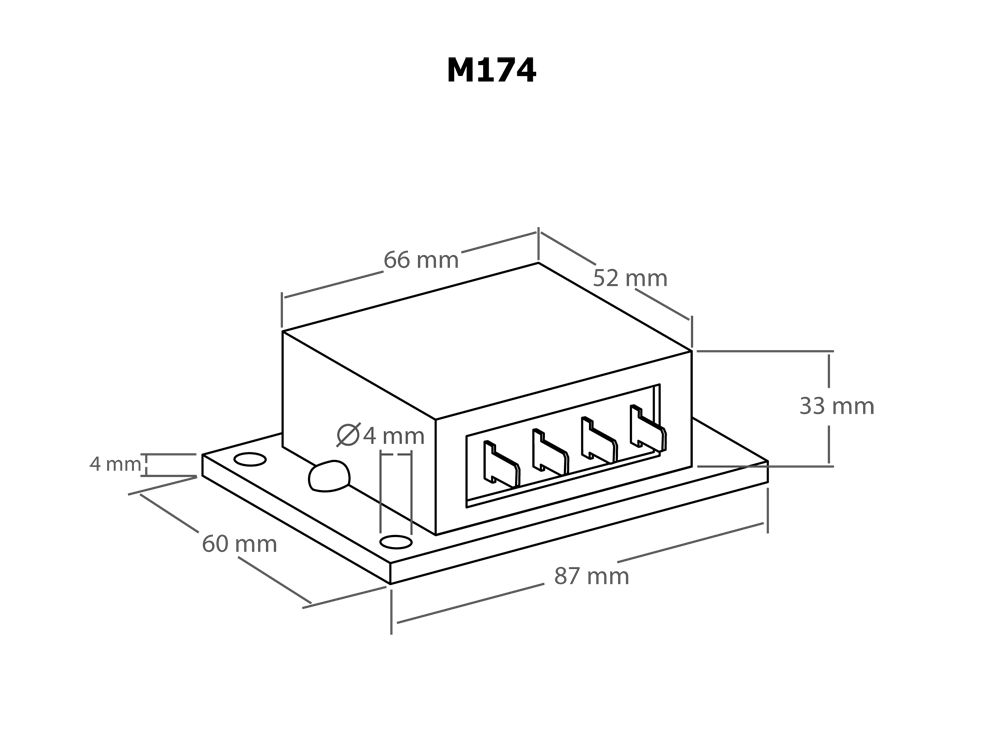

Dimensions	approximately 87 x 60 x 33 mm (with base plate)

Note! See the module installation instructions by clicking here.

Product Information

Availability In stock
Manufacturer Kemo Electronic
Product path Home Do It Yourself Building Kits Kemo ready-made modules Solar charging regulator for Dual Battery 16A
SKU KEMO-M174
Attributes
- Manufacturer's model M174
- Click for more details https://www.kemo-electronic.de/en/Light-Sound/Solar/M174-Solar-charging-regulator-Dual-16-A.php
- Dimensions 87 x 60 x 33 mm
