SOLAR CHARGING CONTROLLER 12V 10A

Name: SOLAR CHARGING CONTROLLER 12V 10A
Brand: Kemo Electronic
SKU: KEMO-M149N
Price: 20.90 EUR
Availability: InStock

In stock 13 pcs

SKU#: KEMO-M149N

SOLAR CHARGING CONTROLLER 12V 10A

In stock 13 pcs

SKU#: KEMO-M149N

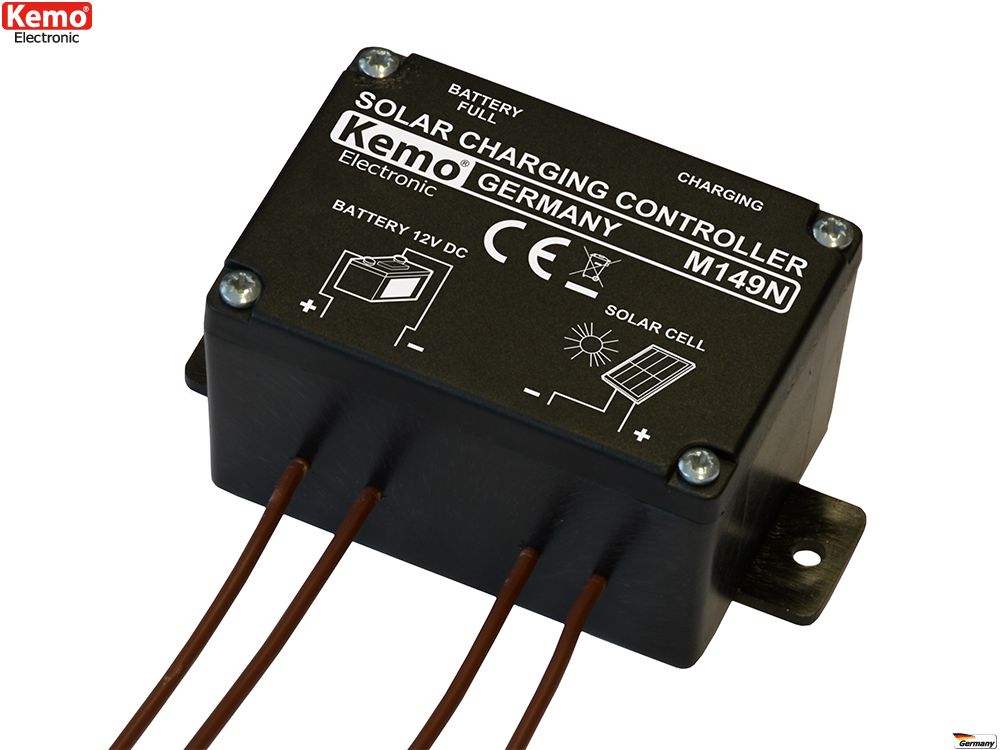

Kemo M149N - charge controller between a solar panel and a 12V battery.

20,90 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

This charge controller is connected between a 12 VDC solar panel (open-circuit voltage 14 - 30 VDC) and a 12 V battery to prevent overcharging and overdischarging of the battery. The LED indicator shows when "battery full" (about 14.4 VDC) or when "charging" is in progress.

Technical specifications

Input voltage (from solar panels)	14 - 30 V/DC no load
Rated voltage	12 V/DC
Max. input current	10 A, short term max. 5 min: 20 A
Charging start	battery voltage <13.4 V
Charging stop	battery voltage >14.4 V
Display	Two indicator LEDs; one for charging, one for battery fully charged.
Own current consumption	<2.5 mA (LEDs on)
Dimensions	approx. 72 x 50 x 42 mm (without mounting ears)

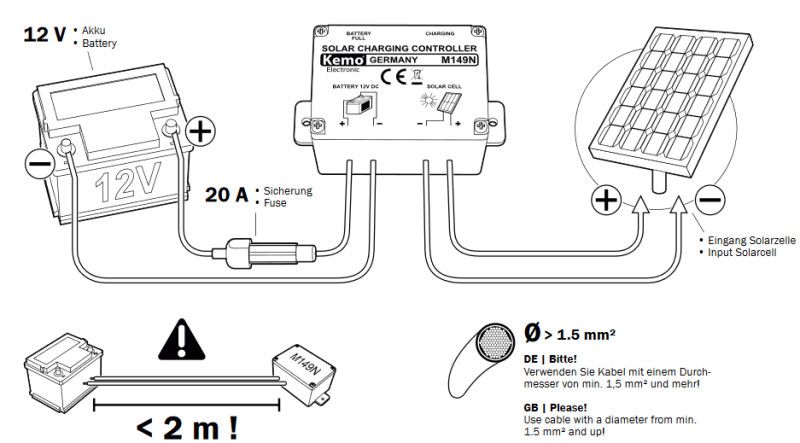

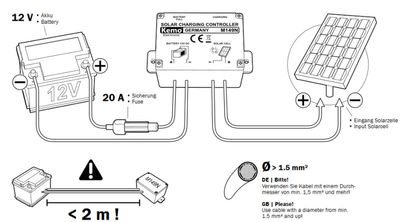

Usage

Do not connect to the battery without a fuse (20A).
Use conductors thicker than 1.5 mm2 between the battery and the charge controller.
Do not use cable runs longer than 2 m between the battery and the charge controller.
Use only solar panels under 100W.

Product Information

Availability In stock
Manufacturer Kemo Electronic
EAN 4024028031491
Product path Home Do It Yourself Building Kits Kemo ready-made modules SOLAR CHARGING CONTROLLER 12V 10A
SKU KEMO-M149N
Attributes
- Manufacturer's model M149N
- Click for more details https://www.kemo-electronic.de/en/Light-Sound/Solar/M149N-Solar-Charging-Controller-12-V-DC-10-A-20-A.php
- Dimensions 72 x 50 x 42 mm
