SMD PTC RESISTOR 0805 10kohm@90°C
In stock over 100 pcs
SKU#: PTC0805-90C
SMD PTC RESISTOR 0805 10kohm@90°C
In stock over 100 pcs
SKU#: PTC0805-90C

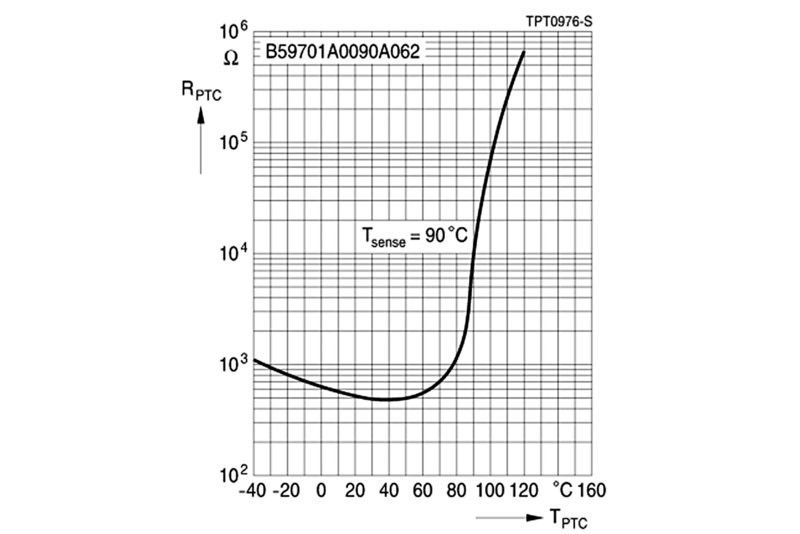

The series resistance of this PTC resistor rises rapidly from kilo-ohms to mega-ohms when the temperature exceeds the threshold. Used e.g. to detect over-temperature.
- resistance measured at room temperature approx. 600 ohms
- resistance: 5,5 ... 13,3 kohm @90°C
- voltage withstand: 32VDC
- recommended measurement power: max. 6mW
- operating temperature range: -40 ... +125°C

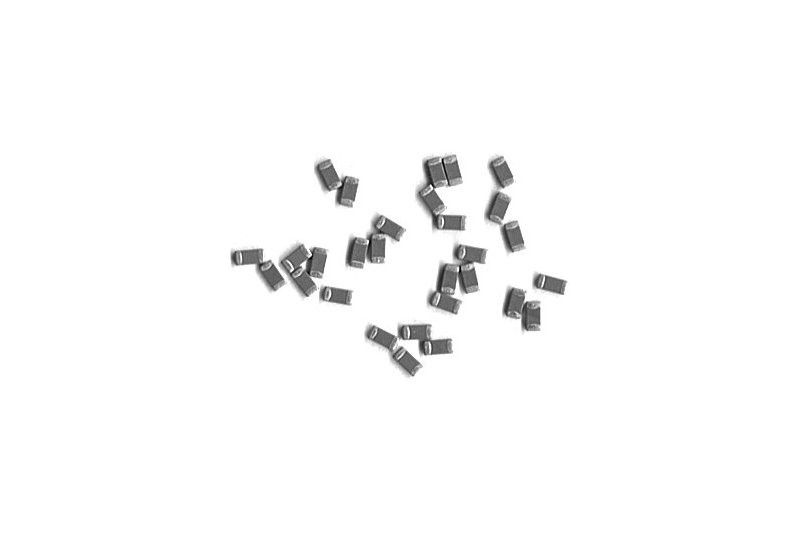

- package: SMD 0805
Quantity discount
| Quantity (pcs) | Price | |
|---|---|---|
| 10+ | undefined% | 0,23 € |
0,26 €
In stock
Product Description
Product Information
- Availability In stock
- Manufacturer Epcos
- Product path Home ComponentsPassive ComponentsResistorsPTC Resistors SMD PTC RESISTOR 0805 10kohm@90°C
- SKU PTC0805-90C
- Attributes
- Manufacturer's model B59701A0090A062
- Click for more details http://www.epcos.com/inf/55/db/PTC_09/Sensors_A401_A601_A602_A603_A604_A701.pdf
- Dimensions 2.0 x 1.25 x 1.25 mm
