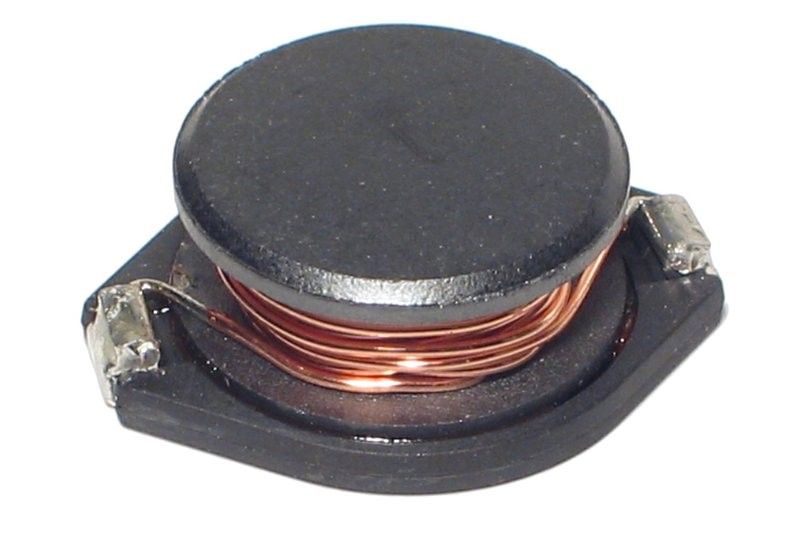

SMD POWER INDUCTOR 220µH 2,2A 19x15mm

Temporarily out of stock

SKU#: PISR-221M-04

SMD POWER INDUCTOR 220µH 2,2A 19x15mm

SMD POWER INDUCTOR 220µH 2,2A 19x15mm

SMD POWER INDUCTOR 220µH 2,2A 19x15mm

Temporarily out of stock

SKU#: PISR-221M-04

core material: ferrite
nominal inductance: 220µH
tolerance: ±20%
f_L: 0,1MHz
SRF min: 3,3MHz
DCR max: 0,34ohm
Isat: 2,2A

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Fastron
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

core material: ferrite
nominal inductance: 220µH
tolerance: ±20%
f_L: 0,1MHz
SRF min: 3,3MHz
DCR max: 0,34ohm
Isat: 2,2A

Product Information

Availability Temporarily out of stock
Manufacturer Fastron
Product path Home Components Passive Components Reels SMD Power Coils SMD POWER INDUCTOR 220µH 2,2A 19x15mm
SKU PISR-221M-04
Attributes
- Power Class 2A
- Inductance 220µH
- Manufacturer's model PISR-221M-04
- Click for more details http://www.fastrongroup.com/products/inductors/catalogList.php?category=009&series=PISR

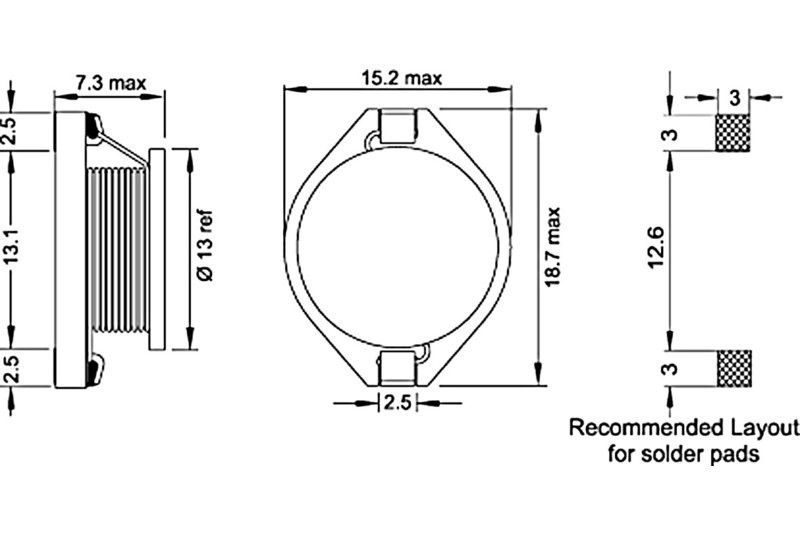

- Dimensions 18.7 x 15.2 x 7.3 mm
