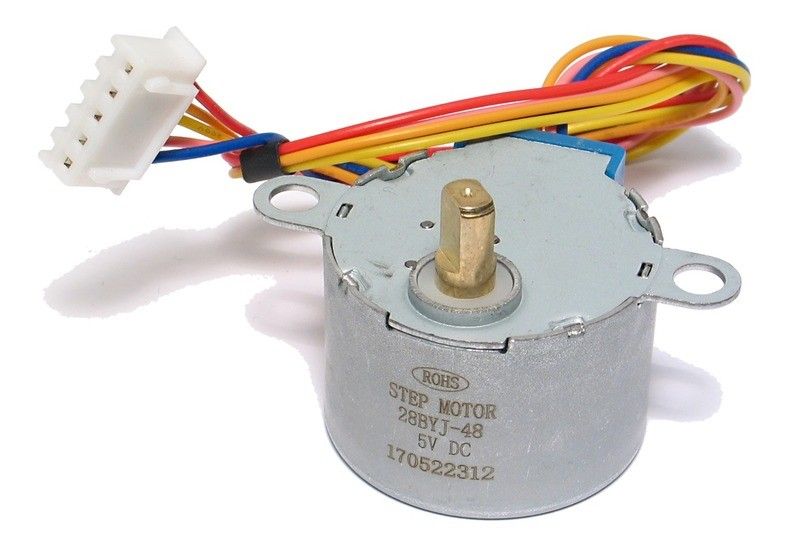

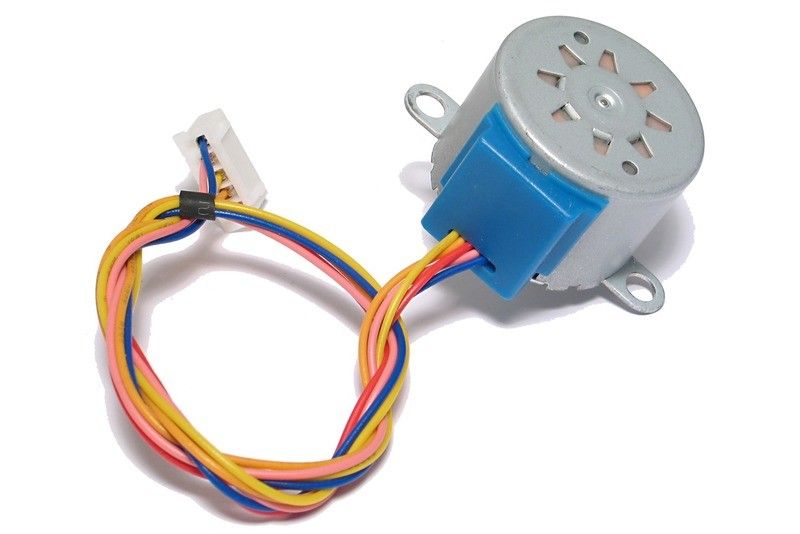

SMALL STEPPER MOTOR 5V
In stock 17 pcs
SKU#: ASMOT-28BYJ48
SMALL STEPPER MOTOR 5V
In stock 17 pcs
SKU#: ASMOT-28BYJ48
- steps per revolution: 64 (= 5,625° per step)

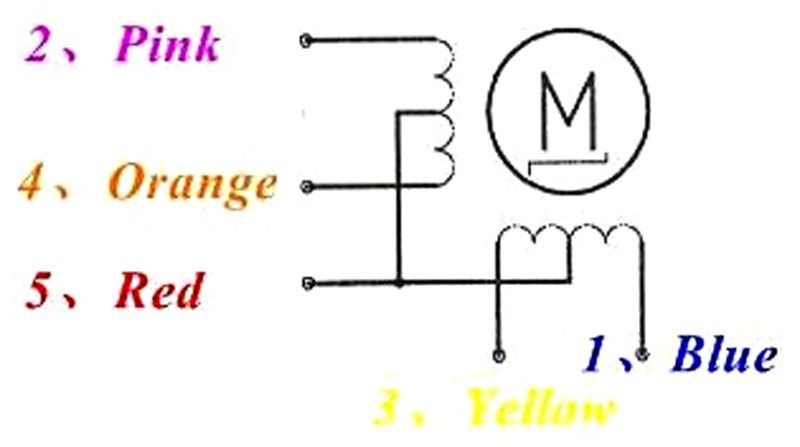

- drive type: unipolar, 5-lead approx. 23cm, mating connector XHS-5
- drive voltage: 5VDC
- coil resistance: 50ohm
- torque: 300 gfcm (Pull-In Torque) = 2,93 N.cm

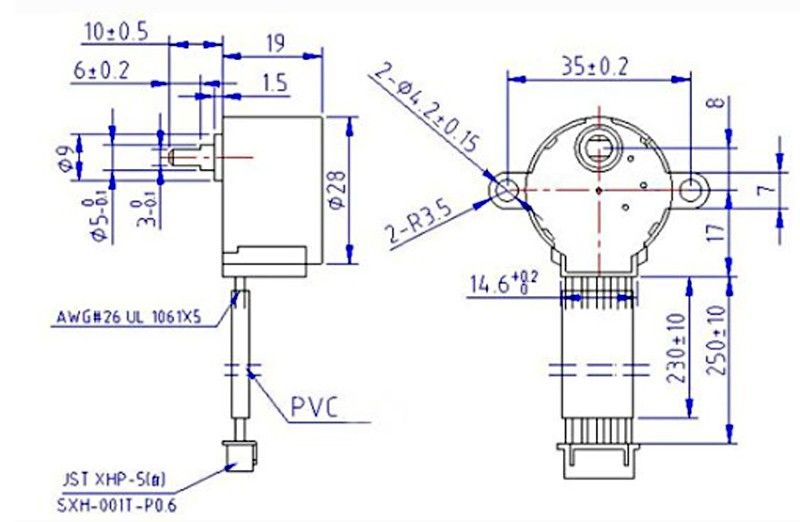

- shaft: Ø 4,95 (protrusion 8,25 mm, chamfer 2,95 x 6 mm)
- mounting lugs: Ø 4 mm - distance approx. 35 mm
- body: Ø 28 x 19 mm
6,78 €
In stock
Product Description
Product Information
- Availability In stock
- Product path Home ComponentsElectromechanical ComponentsEnginesStepper Motors SMALL STEPPER MOTOR 5V
- SKU ASMOT-28BYJ48
- Attributes
- Manufacturer's model 28BYJ-48-5V
