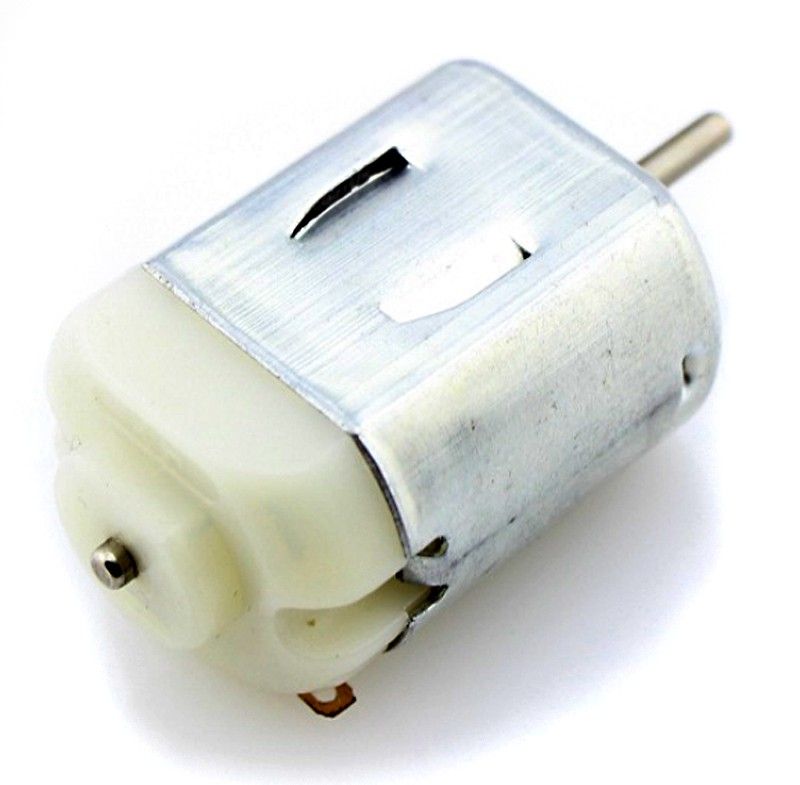

A DC motor commonly used in toys and similar applications. The full designation is '130 size'. The voltage range 1,5 - 4VDC is suitable for use with, for example, an Arduino Motor Shield.

Specifications

• Operating temperature: -10°C ~ +60°C
• Rated voltage: 3VDC
• Current draw without load: 500 mA max (individual variations occur)
• Current draw under load: 1500 mA max
• Current requirement when stalled: 2500mA max
• Body dimensions: 27,5 x 20 x 15 mm
• Shaft dimensions: 8mm length x 2mm diameter
• Weight: 17,5 gr

Note! See the suitable mounting clamp for the motor MOT AM00130BR below.
