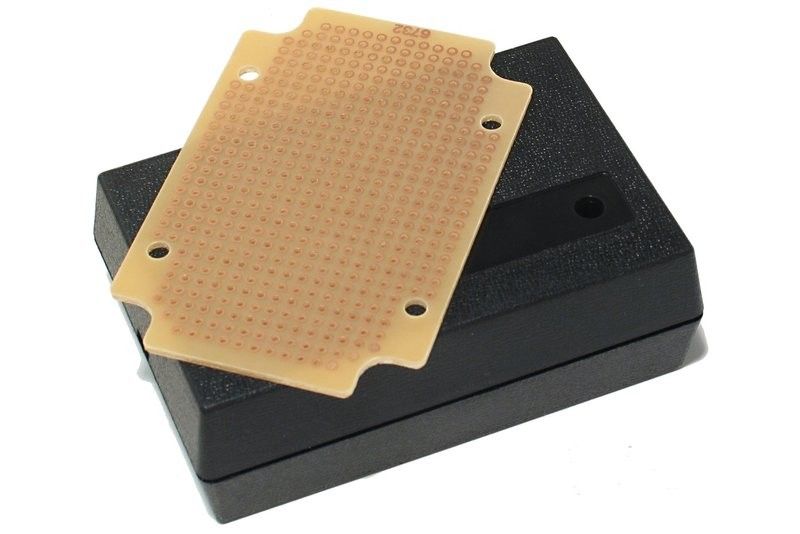

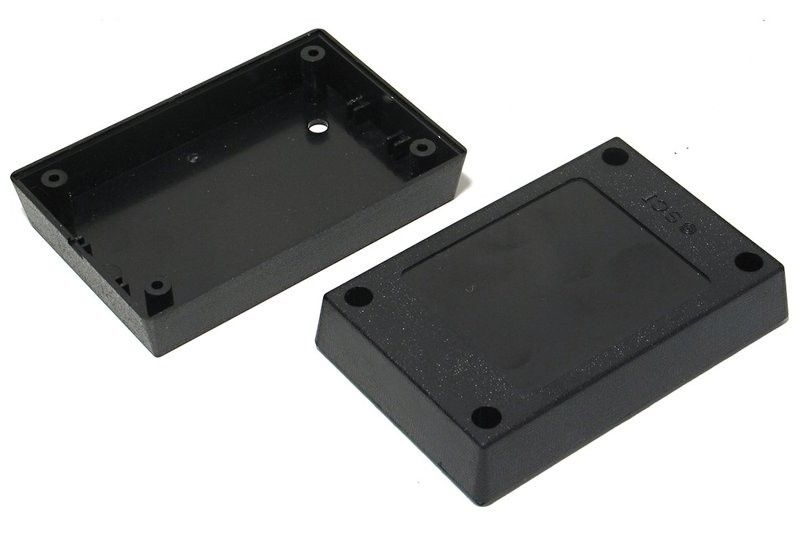

The enclosure includes a pre-formed Pertinax PCB with 486 solder pads on a 100 mil grid. The board is secured with four screws. Components up to 20 mm high fit inside. The lid also has a pre-made Ø 5 mm hole for an LED.

• black ABS plastic
• external dimensions: 88 x 59 x 30 mm
• adhesive area on the lid: 72 x 12 mm
• adhesive area on the bottom: 52 x 44 mm
• PCB dimensions: 80 x 52 mm

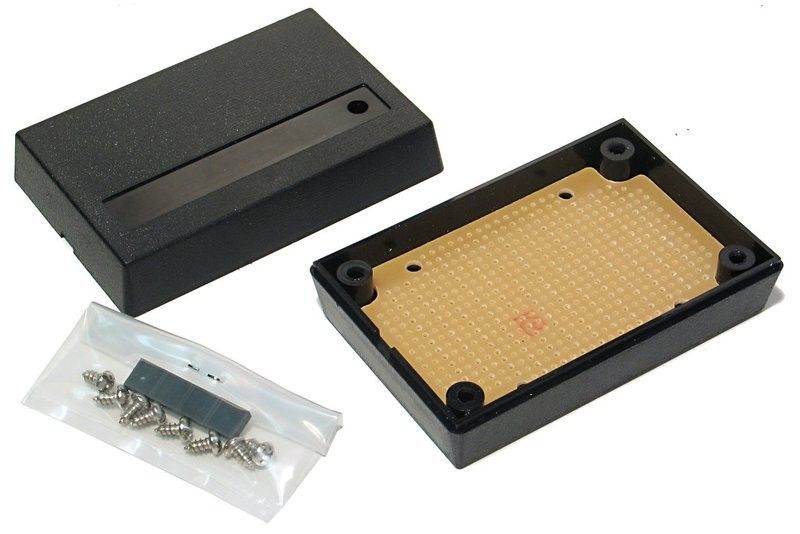

• included: PCB, mounting screws, plastic feet

Note! A standard 16x2 LCD display fits inside the enclosure so that DIP-packaged ICs still fit under the display.
