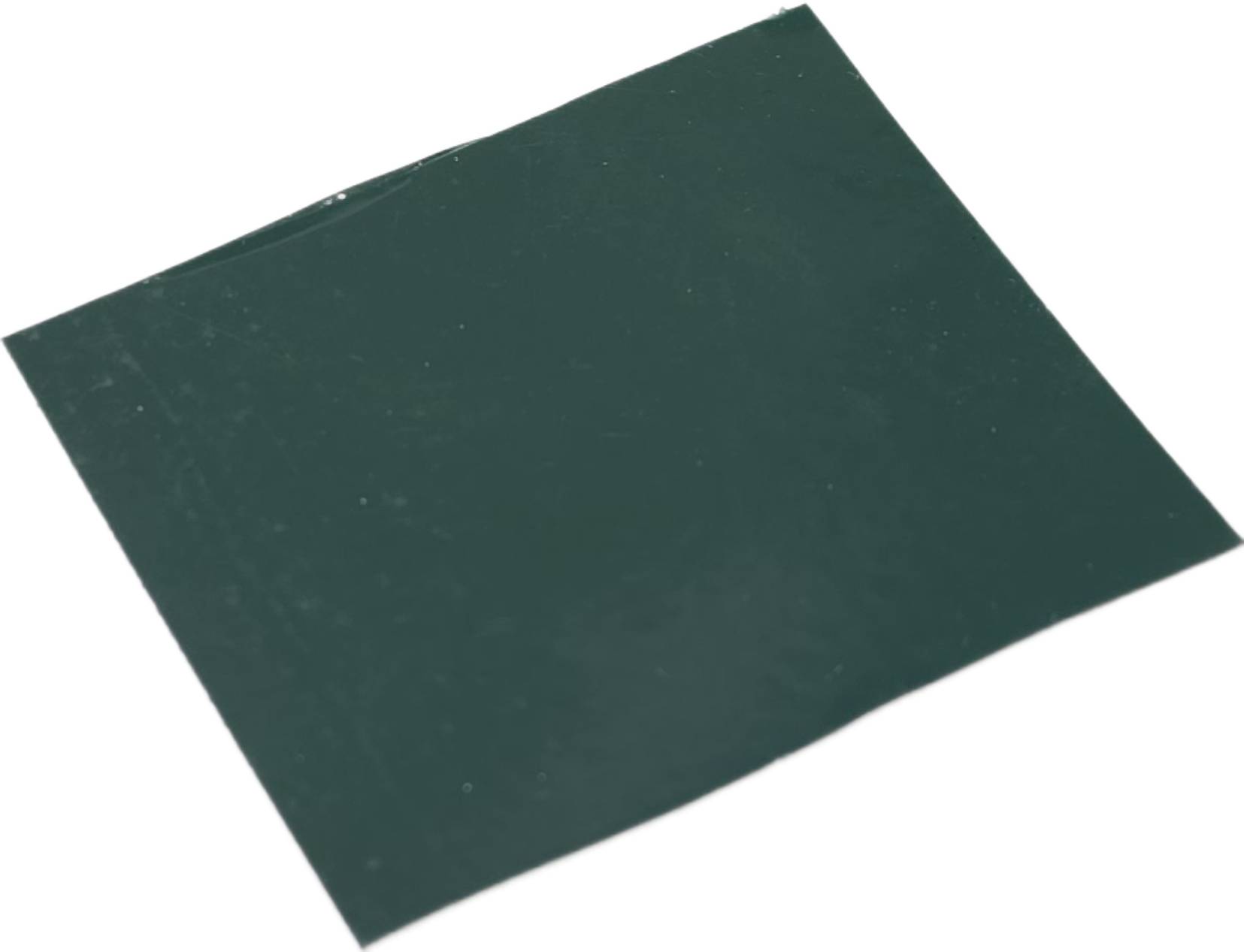

Thermally conductive double-sided tape pre-cut to 50 x 50 mm. Ideal for attaching and transferring heat from heatsinks, LED modules, power transistors, SSDs and other heat-generating components.

• Pre-cut size: 50 x 50 mm
• Thickness: 0,15 mm
• Double-sided thermally conductive tape
• Electrically insulating
• Strong acrylic adhesive on both sides
• Thin construction minimizes thermal resistance
• Flexible and easy to install
• Also suitable for uneven surfaces

The tape enables efficient heat transfer from the component to the cooling element while providing reliable mechanical attachment without screws or other fasteners.

Applications

• Heatsink attachment
• LED modules and LED luminaires
• MOSFET, IGBT and power modules
• SSD and memory IC cooling
• Power supplies and power electronics
• Industrial and automotive electronics

Technical specifications

• Product type: Thermally conductive double-sided tape
• Size: 50 x 50 mm
• Thickness: 0,15 mm
• Adhesive type: Acrylic adhesive
• Color: White
• Electrical insulation: Yes
