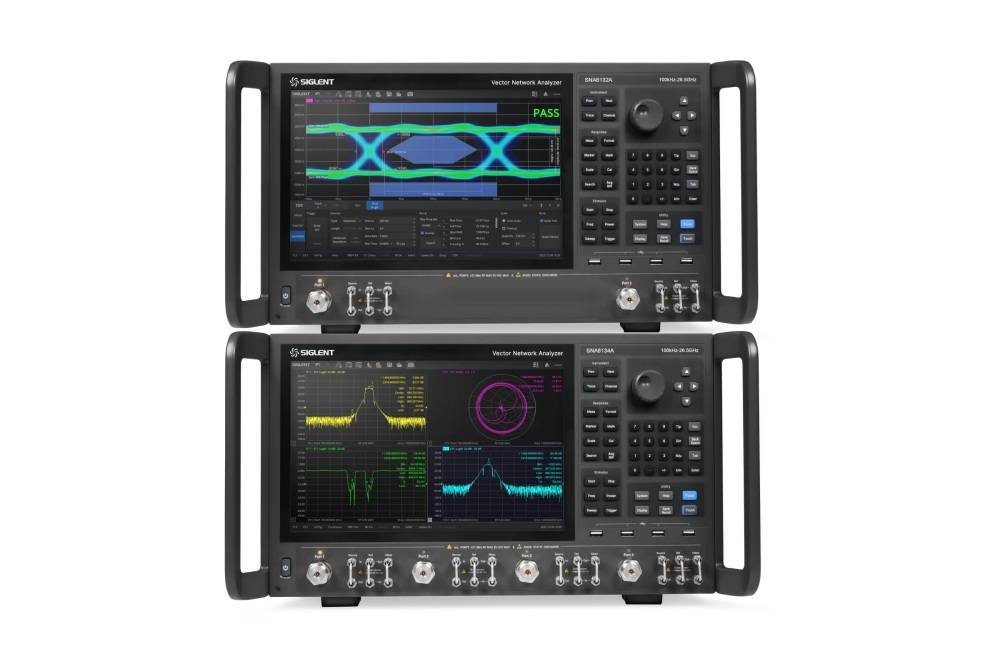

Siglent SNA6134A is a 4-port vector network analyzer in the SNA6000A series with a frequency range of 100 kHz–26.5 GHz. The instrument is suitable for measuring and analysing the performance of RF and microwave devices using scattering, differential and time-domain parameters.
With SNA6134A measurements, one can determine, for example, reflection and transmission coefficients as well as the Q factor, bandwidth and insertion loss of filters. The front-panel jumper connector enables direct access to the receiver (Direct Receiver Access, DRA).

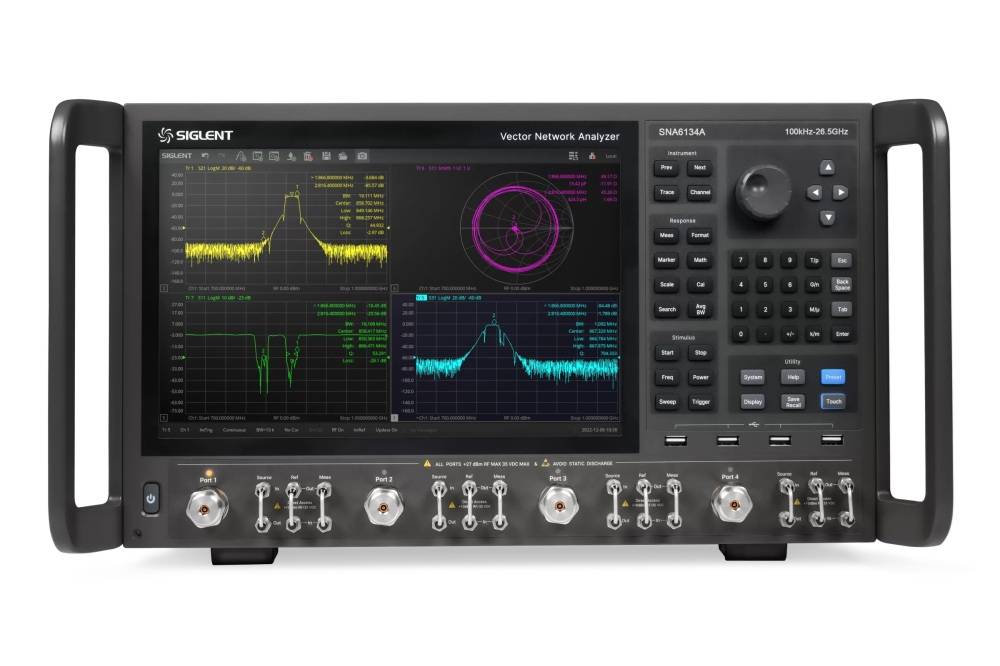

The instrument is equipped with a 12.1-inch touchscreen that can display multiple measurement windows simultaneously. Measurement data can be saved to memory and compared with current measurement results. An HDMI/DVI-D video output allows use of an external display, and the instrument can be controlled remotely via USB or a web server.
Features
- Frequency range: 100 kHz–26.5 GHz
- Channels: 4
- Measurements: scattering parameters, differential parameters and time-domain parameters
- RF and microwave measurements: determination of reflection and transmission coefficients
- Filter measurements: Q factor, bandwidth and insertion loss
- Direct Receiver Access (DRA): front-panel jumper connector for direct use of the receiver
- Impedance transformation: yes
- Measurement plane shifting: yes
- Limit testing: yes
- Ripple testing: yes
- Fixture simulation: yes
- Adapter removal and addition: adjustment of measurement corrections for removing or adding an adapter
- Display: 12.1-inch touchscreen
- Measurement windows: multiple windows can be displayed simultaneously
- Data Hold: retention and comparison of measurement data
- Video output: HDMI/DVI-D
- Remote control: via USB or web server connection
