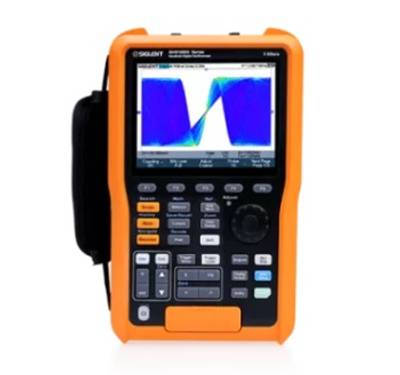

Siglent SHS1102X is a two-channel portable digital oscilloscope that combines an oscilloscope, serial trigger and decode, spectrum analysis, data logger and multimeter in one device.
The SHS1102X offers 100 MHz bandwidth, up to 1 GSa/s real-time sample rate and 12 Mpts memory depth. Two galvanically isolated channels enable measurement of floating and differential signals.
The portable design and IP51 rating make it suitable for measurements not only in laboratory environments but also for various maintenance and field applications. The data logger can continuously record waveforms for up to 22 hours at a 25 kSa/s sample rate.
Features
- Channels: 2 galvanically isolated oscilloscope channels
- Bandwidth: 100 MHz
- Real-time sample rate: 1 GSa/s (1 channel), 500 MSa/s (2 channels)
- Memory depth: up to 12 Mpts
- Isolation rating: CAT III 600 Vrms, CAT II 1000 Vrms
- Oscilloscope functions: waveform measurement and analysis
- Serial: trigger and decode
- Spectrum analysis: yes
- Data logger: continuous waveform recording for up to 22 hours at 25 kSa/s sample rate
- Multimeter: True RMS, 6000 counts
- Multimeter measurements: voltage, current, resistance, capacitance, diode and continuity
- Trend plot: review of measurement value changes over a defined time period
- File storage: settings, waveforms, screenshots and CSV files to USB drive
- Protection rating: IP51
Package contents
- Siglent SHS1102X handheld oscilloscope
