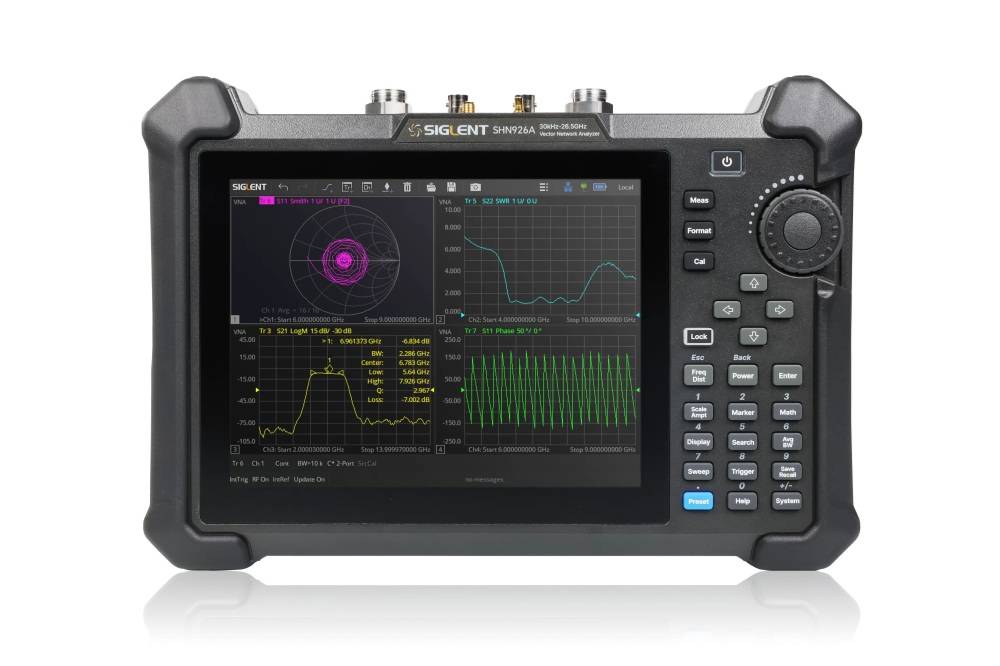

The SHN914A is suitable, for example, for determining filters' Q factor, bandwidth and insertion loss. The instrument features impedance transformation, measurement plane shifting, limit testing, ripple testing, fixture simulation and adjustment for adapter removal and addition.

Five different sweep methods can be used in measurements: linear frequency sweep, logarithmic frequency sweep, power sweep, CW time sweep and segment sweep. SHN900A-series analyzers additionally support SOLT, SOLR, TRL, Response and Enhanced Response calibrations for scattering parameter measurements.

Features

• Frequency range: 30 kHz–14 GHz
• Ports: 2-port
• Measurements: scattering parameters, differential parameters and time-domain parameters
• Filter measurements: Q factor, bandwidth and insertion loss
• Impedance transformation: yes
• Measurement plane shifting: yes
• Limit testing: yes
• Ripple testing: yes
• Fixture simulation: yes
• Adapter removal and addition: adjustment for removing or adding an adapter
• Sweep methods: Linear-Frequency, Log-Frequency, Power-Sweep, CW-Time and Segment-Sweep
• Scattering parameter calibrations: SOLT, SOLR, TRL, Response and Enhanced Response
