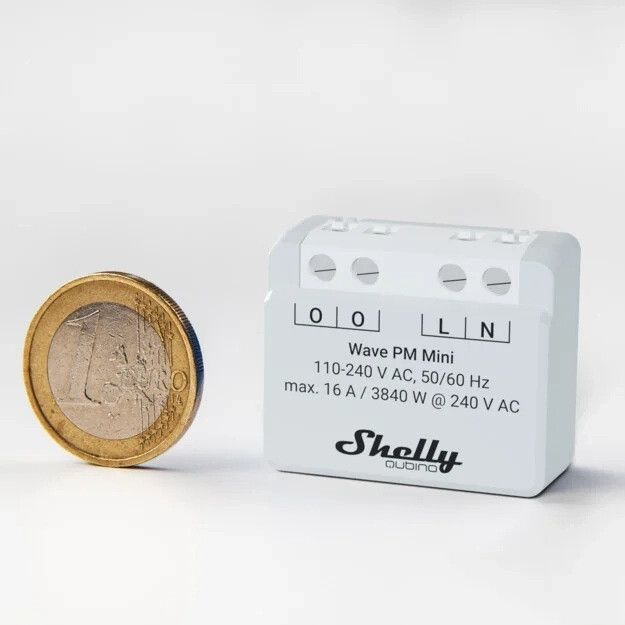

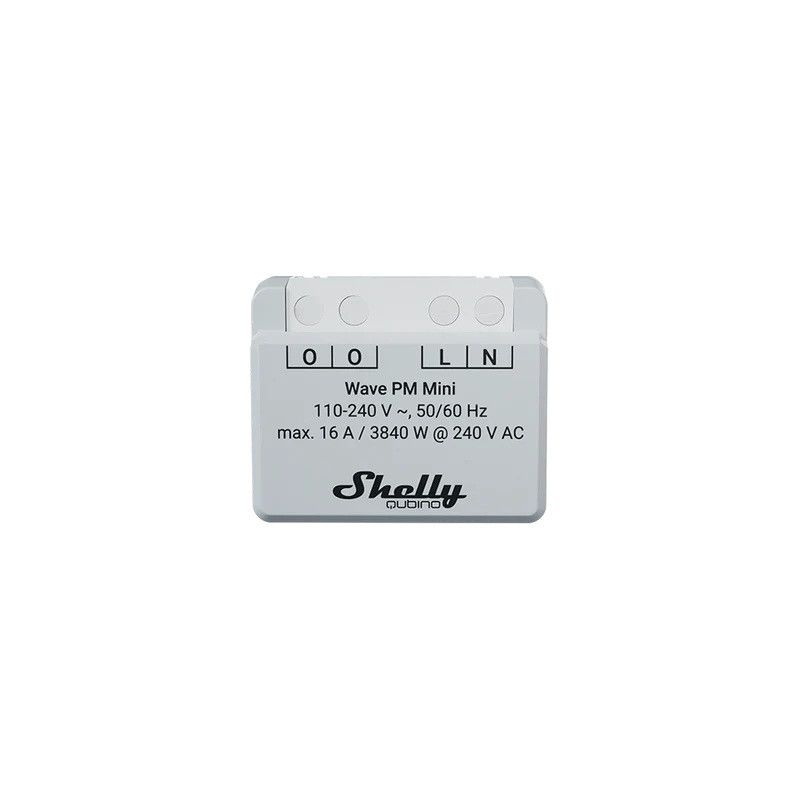

The Shelly Qubino Wave PM Mini is a very small Z-Wave energy meter designed for precise monitoring of electricity consumption. Thanks to its compact retrofit design, it easily fits inside switches, sockets, or directly into devices, even in very tight installation spaces.
The device supports loads up to 16 A at 240 V AC and measures electricity consumption in real time, enabling remote monitoring and optimization of energy usage. Despite its small size, the Wave PM Mini delivers reliable performance without compromises in functionality.
The Wave PM Mini is based on the latest Z-Wave 800 series technology and operates on the 868.4 MHz frequency used in CEPT countries. It supports SmartStart for easy and automatic commissioning and Security 2 Authenticated protection, which provides the highest level of security in a smart home network.
With its very low power consumption, under 0.3 W, the device is suitable for continuous energy monitoring. The device also supports wireless OTA firmware updates to stay up to date.
Please note that this is only an energy meter and does not have a relay function. Commissioning and management require a Z-Wave gateway (hub), which is not included in the package.
Features
-
Accurate electricity consumption measurement for loads up to 16 A.
-
Very low power consumption under 0.3 W.
-
Latest Z-Wave 800 series technology.
-
Automatic commissioning with SmartStart.
-
Security 2 Authenticated protection at the highest security level.
-
Wireless OTA firmware updates.
-
Extremely compact design for tight installation locations.
Technical specifications
-
Technology: Z-Wave 800 series.
-
Z-Wave frequency: 868.4 MHz (CEPT countries).
-
Maximum load: 16 A @ 240 V AC.
-
Power consumption: < 0.3 W.
-
Security: Z-Wave Security 2 Authenticated.
-
Firmware updates: Wireless (OTA).
-
Installation: Inside a switch, socket, or device.
Package contents
Links
Wave PM Mini info page
