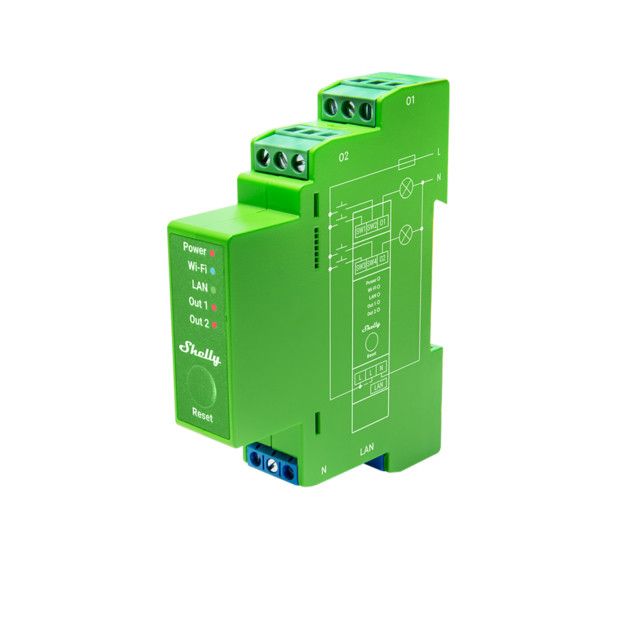

Shelly Pro Dimmer 2PM is an intelligent 2-channel Wi-Fi dimmer with energy consumption measurement that supports a maximum load of 10 A. The dimmer is installed directly onto a DIN rail and can be used to control lights and transformers that support dimming. Adjustable dimming transition time and maximum and minimum brightness. Shelly Pro Dimmer 2PM operates either locally on the Wi-Fi network or can be connected to a cloud service. Connecting the Shelly Pro Dimmer 2PM to the Internet via Wi-Fi allows you to control the device from anywhere. Through the built-in web interface you can monitor and control the device and adjust its settings.

Note! You will need the assistance of an electrician for fixed electrical installations.

Features

• Adjustable dimming transition time
• Adjustable minimum and maximum brightness
• Two channels
• Night mode - automatic dimming during nighttime
• LAN, Wi-Fi and Bluetooth connections
• No need for a separate hub
• LED light indicator
• DIN-rail mounting
• Flame-retardant enclosure (V-0) with internal overheat protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support
• SmartThings support

Specifications

• Model: Shelly Pro Dimmer 2PM
• Rated voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 10 A
• Power: < 2 W
• Number of channels: 1
• Operating temperature: -20ºC ... +40ºC
• Power consumption measurement: yes
• Overheat protection: yes
• Overload protection: yes
• Works without neutral wire: no
• MQTT and WSS support
• Bluetooth: yes
• Wireless standard: Wi-Fi 802.11b/g/n, 2.4 GHz
• Wi-Fi operating frequency: 2412 - 2484 MHz
• Wi-Fi transmit power: <20 dBm
• Wi-Fi radio signal strength: 1 mW
• Wi-Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
