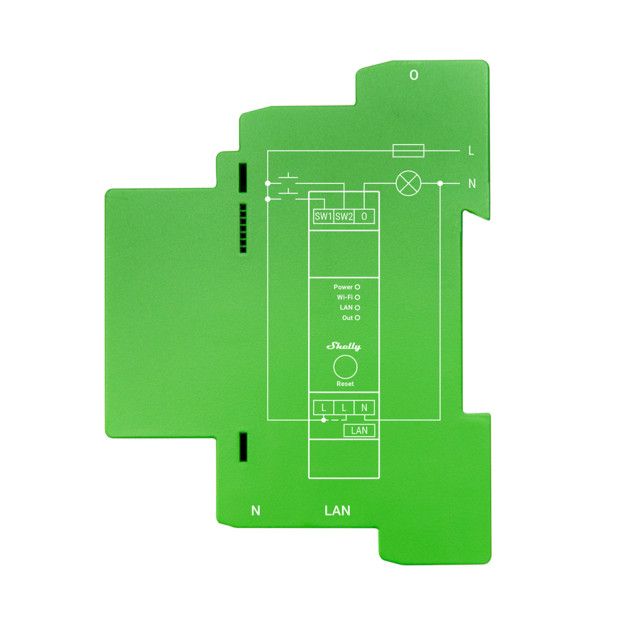

Shelly Pro Dimmer 1PM is a smart 1-channel Wi‑Fi dimmer with energy consumption measurement, supporting a maximum load of 10 A. The dimmer is installed directly on a DIN rail and can be used to control lights and transformers that support dimming. Adjustable dimming transition time and maximum and minimum brightness. Shelly Pro Dimmer 1PM operates either locally on a Wi‑Fi network or can be connected to the cloud. Connecting the Shelly Pro Dimmer 1PM to the internet via Wi‑Fi allows control of the device from anywhere. Through the built-in web interface you can monitor and control the device and adjust its settings.

Note! You will need an electrician's assistance for fixed electrical installations.

Features

• Adjustable dimming transition time
• Adjustable minimum and maximum brightness
• Night mode — automatic dimming at night
• LAN, Wi‑Fi and Bluetooth connections
• No need for a separate hub
• LED light indicator
• DIN rail mounting
• Flame-retardant enclosure (V-0) with internal overheat protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud app — Android and iOS support
• SmartThings support

Specifications

• Model: Shelly Pro Dimmer 1PM
• Rated voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 10 A
• Power: < 2 W
• Number of channels: 1
• Operating temperature: -20ºC ... +40ºC
• Energy consumption measurement: yes
• Overheat protection: yes
• Overload protection: yes
• Works without neutral wire: no
• MQTT and WSS support
• Bluetooth: yes
• Wireless standard: WiFi 802.11b/g/n, 2.4 GHz
• Wi‑Fi operating frequency: 2412 - 2484 MHz
• Wi‑Fi transmit power: <20 dBm
• Wi‑Fi radio signal strength: 1 mW
• Wi‑Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
