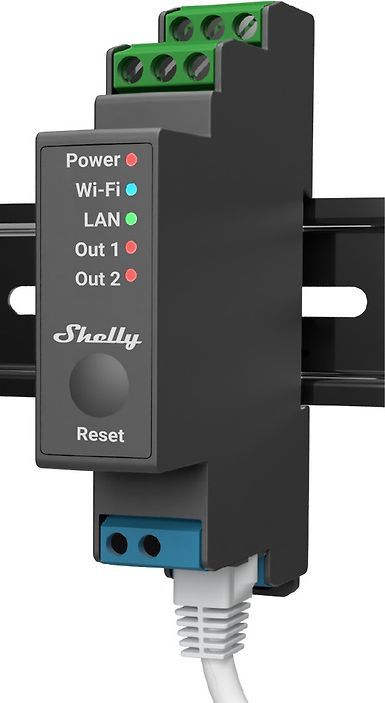

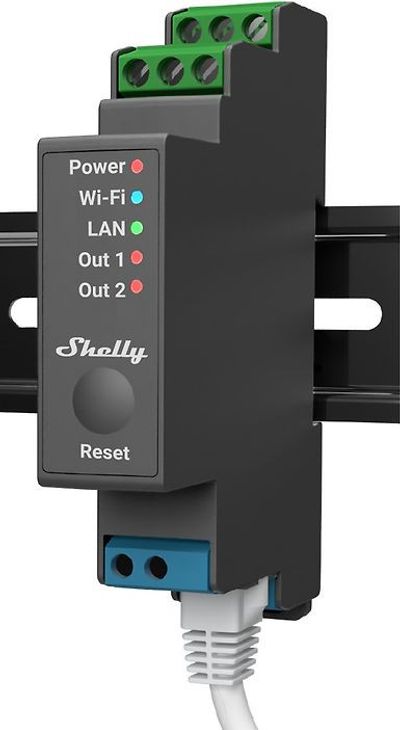

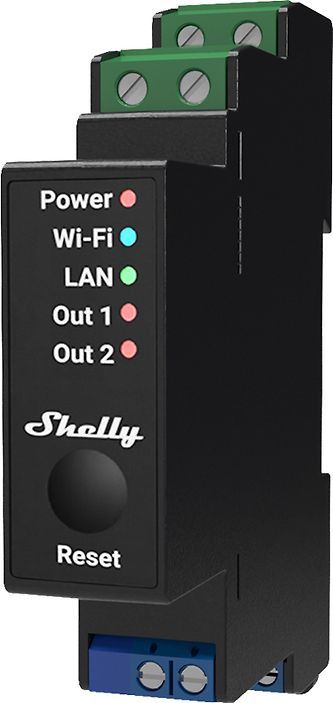

Shelly Pro 2PM is a 2-channel Wi‑Fi relay with energy consumption measurement that supports a maximum load of 25 A (16 A / channel). The relay is mounted directly to a DIN rail and can be used to control, for example, lights, household electrical appliances, irrigation systems, pool systems and heaters. Shelly Pro 2PM operates either locally on a Wi‑Fi network or can be connected to a cloud service. Connecting the Shelly Pro 2PM to the internet via Wi‑Fi allows device control from anywhere. Through the built-in web interface you can monitor and control the device and adjust its settings.

Note! You need an electrician's assistance for fixed electrical installations.

Features

• LAN, Wi‑Fi and Bluetooth connectivity
• No need for a separate hub
• LED light indicator
• DIN rail mounting
• Flame-retardant housing (V-0) with internal overheat protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud app – Android and iOS support
• SmartThings support

Specifications

• Model: Shelly Pro 2PM
• Rated voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 25 A (16 A / channel)
• Power consumption: < 3 W
• Number of channels: 2
• Operating temperature: -20°C ... +40°C
• Energy consumption measurement: yes
• Overheat protection: yes
• Overload protection: yes
• Works without neutral wire: no
• MQTT and WSS support
• Bluetooth: yes
• Wireless standard: Wi‑Fi 802.11b/g/n, 2.4 GHz
• Wi‑Fi operating frequency: 2412 - 2484 MHz
• Wi‑Fi transmit power: 13.34 dBm
• Wi‑Fi radio signal power: 1 mW
• Wi‑Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
