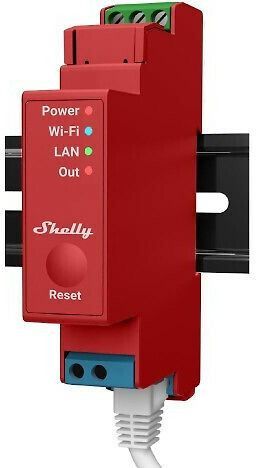

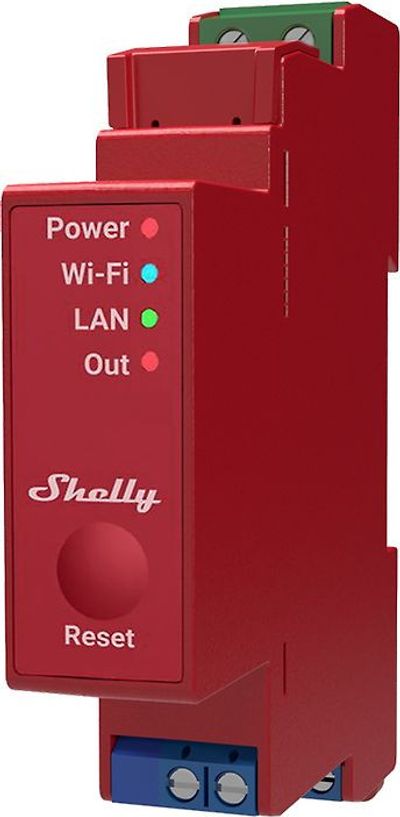

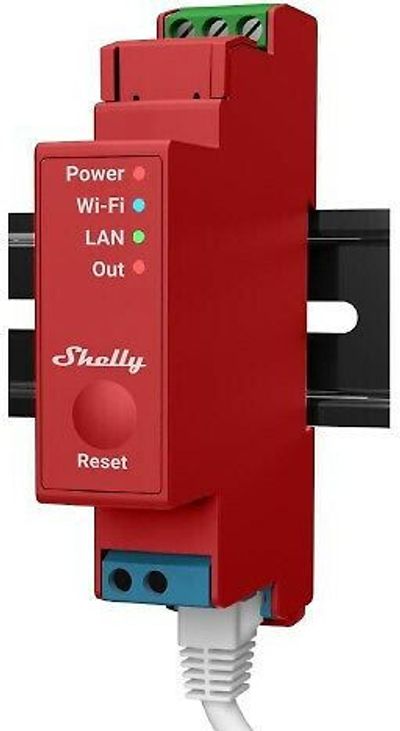

Shelly Pro 1PM is a single-phase Wi‑Fi relay with energy consumption measurement, supporting a maximum load of 16 A. The relay is installed directly on a DIN rail and can be used to control, for example, lights, home electrical appliances, irrigation systems, pool systems, and heaters. Shelly Pro 1PM works locally on a Wi‑Fi network or can be connected to a cloud service. Connecting the Shelly Pro 1PM to the internet via Wi‑Fi allows you to control the device from anywhere. Through the built-in web interface you can monitor and control the device and adjust its settings.

Note! You will need an electrician's assistance for permanent electrical installations.

Features

• LAN, Wi‑Fi and Bluetooth connections
• No separate central unit required
• LED light indicator
• DIN rail installation
• Fireproof housing (V-0) with internal overheat protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support
• SmartThings support

Specifications

• Model: Shelly Pro 1PM
• Rated voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 16 A
• Power consumption: < 3 W
• Number of channels: 1
• Operating temperature: -20ºC ... +40ºC
• Energy consumption measurement: yes
• Overheat protection: yes
• Overload protection: yes
• Works without neutral wire: no
• MQTT and WSS support
• Bluetooth: yes
• Wireless standard: WiFi 802.11b/g/n, 2.4 GHz
• Wi‑Fi operating frequency: 2412 - 2484 MHz
• Wi‑Fi transmit power: 13.34 dBm
• Wi‑Fi radio signal power: 1 mW
• Wi‑Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
