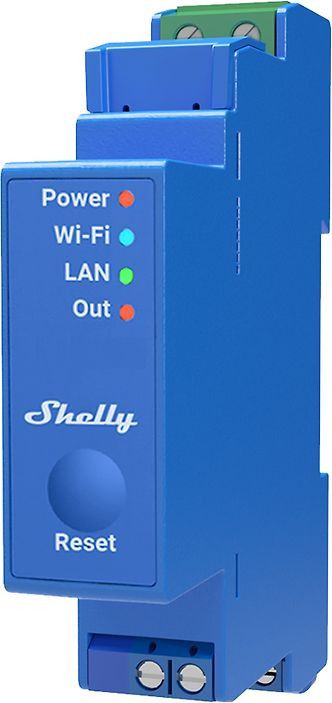

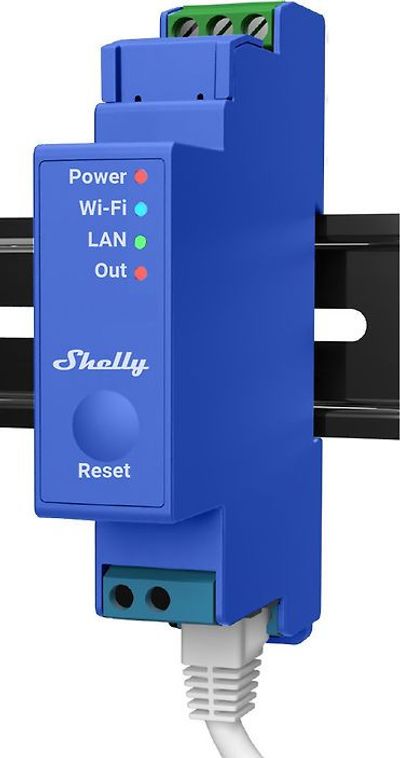

Shelly Pro 1 is a single-phase Wi-Fi relay that supports a maximum load of 16 A. The relay is installed directly on a DIN rail and can be used to control, for example, lights, household electrical appliances, an irrigation system, pool systems, and heaters. Shelly Pro 1 operates either locally on the Wi-Fi network or can be connected to a cloud service. Connecting the Shelly Pro 1 to the Internet via Wi‑Fi enables control of the device from anywhere. Through the built-in web interface you can monitor and control the device and adjust its settings.

Note! You will need an electrician for fixed mains electrical installations.

Features

• LAN, Wi-Fi and Bluetooth connections
• No need for a separate hub
• Potential-free contact
• LED light indicator
• DIN-rail mounting
• Flame-retardant housing (V-0) with internal overheating protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support
• SmartThings support

Specifications

• Model: Shelly Pro 1
• Rated voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 16 A
• Power consumption: < 3 W
• Number of channels: 1
• Operating temperature: -20ºC ... +40ºC
• Temperature sensor: yes
• Overheat protection: yes
• Operates without neutral wire: no
• MQTT and WSS support
• Bluetooth protocol: BLE 4.1
• Bluetooth operating frequency: 2402 - 2480 MHz (max. 2483.5 MHz)
• Bluetooth transmit power: 4,25 dBm
• Bluetooth range: 30 m outdoors, 10 m indoors
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Wi-Fi operating frequency: 2412 - 2472 MHz (max. 2495 MHz)
• Wi-Fi transmit power: 13,35 dBm
• Wi-Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
• Weight: 63 g
• Color: blue
