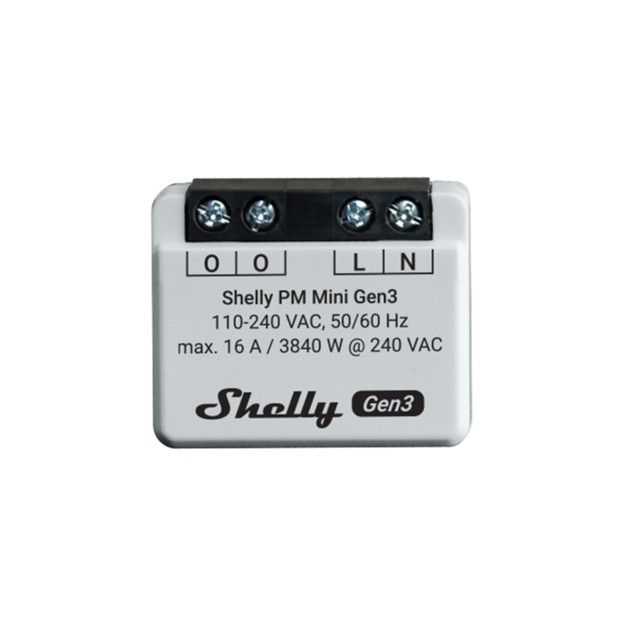

Shelly PM Mini Gen3 - Power meter for WiFi network. Suitable for monitoring the power consumption of devices.

The Shelly PM Mini Gen3 is a compact power meter designed to fit into most electrical boxes and switches. The Shelly PM Mini Gen3, which connects to the wireless network, can be used to monitor the power consumption of home devices such as lights and air conditioning units.

Shelly's smart home products support the Amazon Alexa and Google Assistant virtual assistants. In addition to the above, several other smart home systems/platforms are also supported (check compatibility per product). Shelly products connect to a wireless Wi-Fi network and do not require a separate home automation controller to operate.

Note! You will need the assistance of an electrician for fixed mains electrical installations.

Features

• Wi-Fi - no need for a separate hub
• Bluetooth support
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support

Technical specifications

• Model: Shelly PM Mini Gen3
• Rated voltage: AC: 110-240 VAC
• Power consumption: < 1,2 W
• Number of channels: 1
• Maximum load: 16 A
• Works without neutral wire: no
• Overload protection: no
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Operating frequency: 2412 - 2484 MHz
• Radio signal strength: 1 mW
• Transmit power: <20 dBm
• MQTT and WSS support
• Operating temperature: -20ºC ... +40ºC
• Range: 50 m outdoors, 30 m indoors

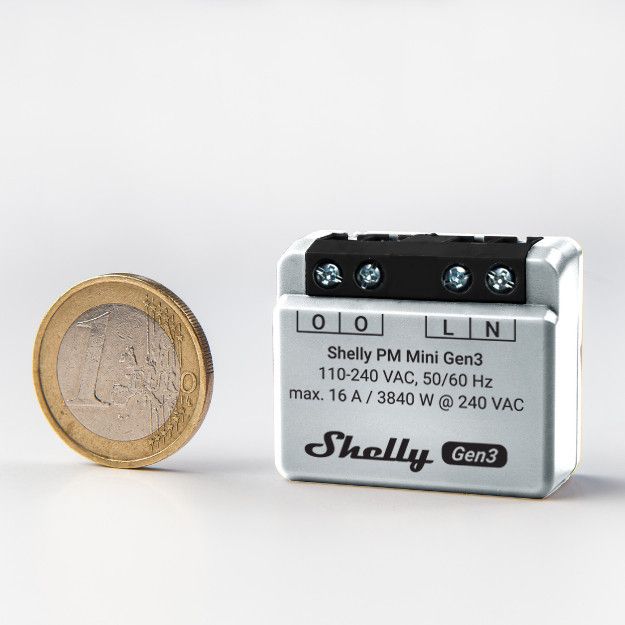

• Dimensions: 29 x 34 x 16 mm
