Shelly Plus Add-on is a galvanically isolated interface module designed to be used with Shelly Plus relays. It enables connecting temperature, humidity and other analog and digital sensors to Shelly Plus devices to enhance complex automation and efficiency.
The Shelly Plus add-on must be activated in the app after installation, after which you can enable the connected sensors.
Note! You will need an electrician's assistance for fixed mains electrical installations.
Shelly Plus Add-on module supports the following devices
- 5 x DS18B20
- 1 x DHT22
- NTC resistors with a nominal resistance of 10 kΩ and β=4000 K
- Photoresistors
- PIR sensors
- Soil moisture sensors
- Ultrasonic proximity sensors
- Capacitive liquid level sensors
- Sound detectors
- Other analog sensors with 0 - 10 V output voltage
Examples of using the Shelly Plus Add-on
- Reed switch: Add a reed switch to the Plus Add-on module to monitor the garage door open/closed position. We recommend using it together with a Shelly Plus 1 relay.
- Liquid level sensor: Connect a liquid level sensor to the Plus Add-on module to monitor the water level in a pool or aquarium. We recommend using it together with a Shelly Plus 1 or Plus 1PM relay.
- Heating: Add two DS18B20 temperature sensors and measure supply and return temperature.
- Wind: With a wind sensor, an awning can automatically retract when it is too windy. We recommend using it together with a Shelly Plus 2PM relay.
- Soil moisture: Connect a soil moisture sensor so the irrigation system can start automatically when the soil is too dry. We recommend using it together with a Shelly Plus 1 relay.

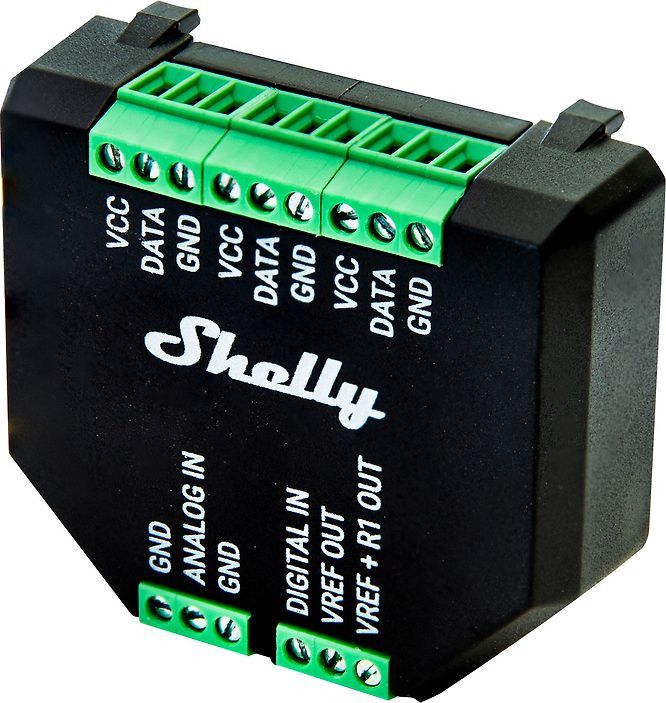

Device connections
- Inputs: 1 analog input, 1 digital input
- Output: 1 reference voltage output, 1 reference voltage via pull-up resistor output, 2 grounding terminals
- 1-wire connection: 3 sensor power output lines (connected to the same PCB trace), 3 sensor data connectors (connected to the same PCB trace), 3 grounding terminals
Specifications
- Model: Shelly Plus Add-on
- Operating voltage (DC): 3,3 V (from Shelly device)
- Power consumption: < 0,5 W (without sensors)
- VCC maximum current: 10 mA
- VREF output maximum current: 1 mA
- VREF+R1 output resistor: 10 kΩ
- Digital input: -15 V ... 0,5 V (true) / 2,5 V ... 15 V (false) / setting switchable in settings
- Operating temperature: -20 ºC to +40 ºC, indoor use only
- Dimensions: 37 x 42 x 15 mm
- Weight: 105 g
