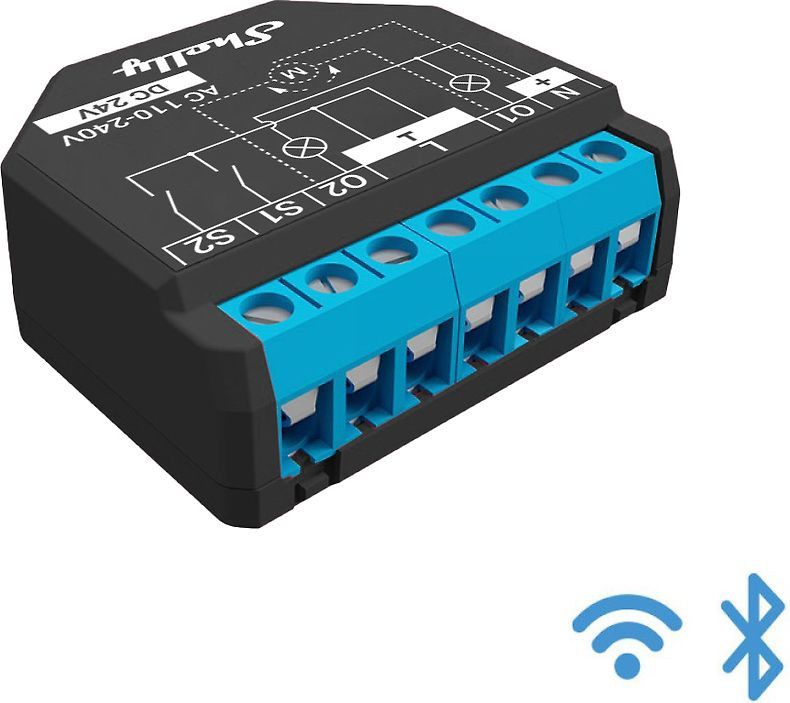

Shelly Plus 2PM - relay switch for Wi‑Fi network. The relay switch allows control of a wide range of different products anytime and from anywhere. The Shelly relay switch makes a product smart.

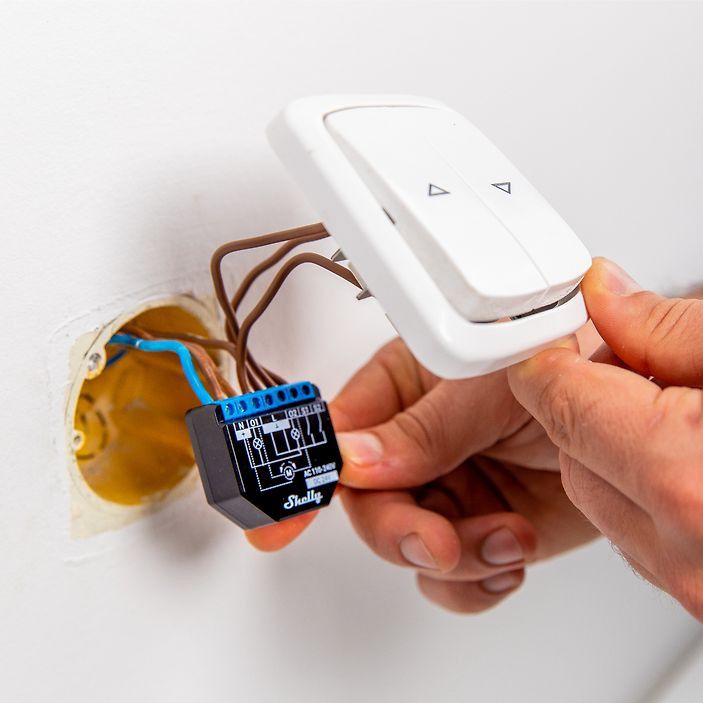

Shelly Plus 2PM is a compact relay switch designed to fit into most electrical boxes and switches. The Shelly Plus 2PM, which connects to a wireless network, can be used to control, for example, lighting, blinds, heating or even air conditioning.

Shelly smart home products support the Amazon Alexa and Google Assistant virtual assistants. In addition to the above, several other smart home systems/platforms are also supported (verify compatibility per product). Shelly products connect to a wireless Wi‑Fi network and do not require a separate home automation controller to operate.

Note! You will need an electrician's assistance for fixed electrical installations.

Features

• Wi‑Fi - no separate hub required
• Bluetooth support
• Controls two devices
• Power consumption measurement - each channel separately
• Amazon Alexa, Google Assistant support

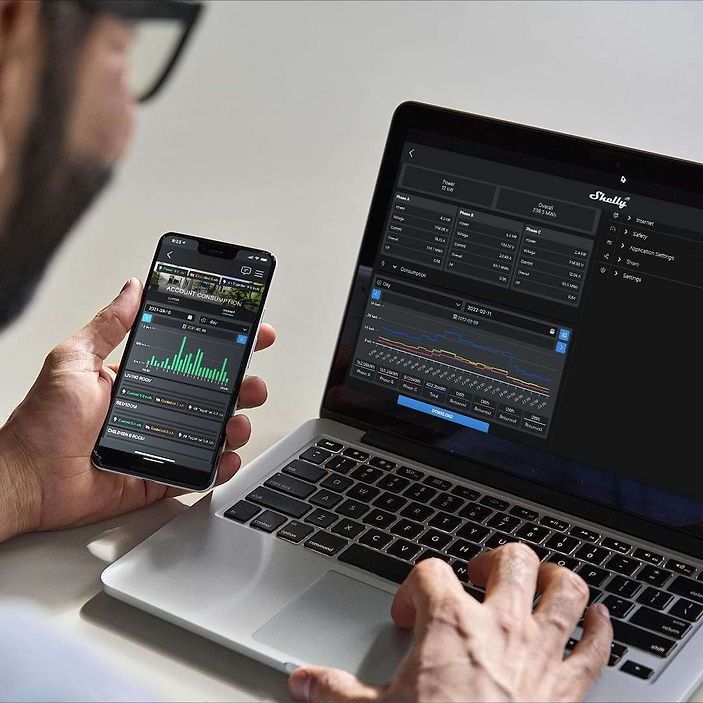

• Shelly Cloud app - Android and iOS support

Specifications

• Model: Shelly Plus 2PM
• Rated voltage: AC: 110-240 V ±10%, 50/60 Hz, DC: 24 V ±10%
• Power consumption: < 1,4 W
• Number of channels: 2
• Maximum load: 10 A / channel, total 16 A (18 A peak)
• Overload protection: yes
• Overheat protection: yes
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Operating frequency: 2412 - 2472 MHz
• Radio signal strength: 1 mW
• Transmit power: 20 dBm
• MQTT and WSS support
• Operating temperature: -20ºC ... +40ºC
• Range: 50 m outdoors, 30 m indoors
• Dimensions: 42 x 37 x 16 mm
