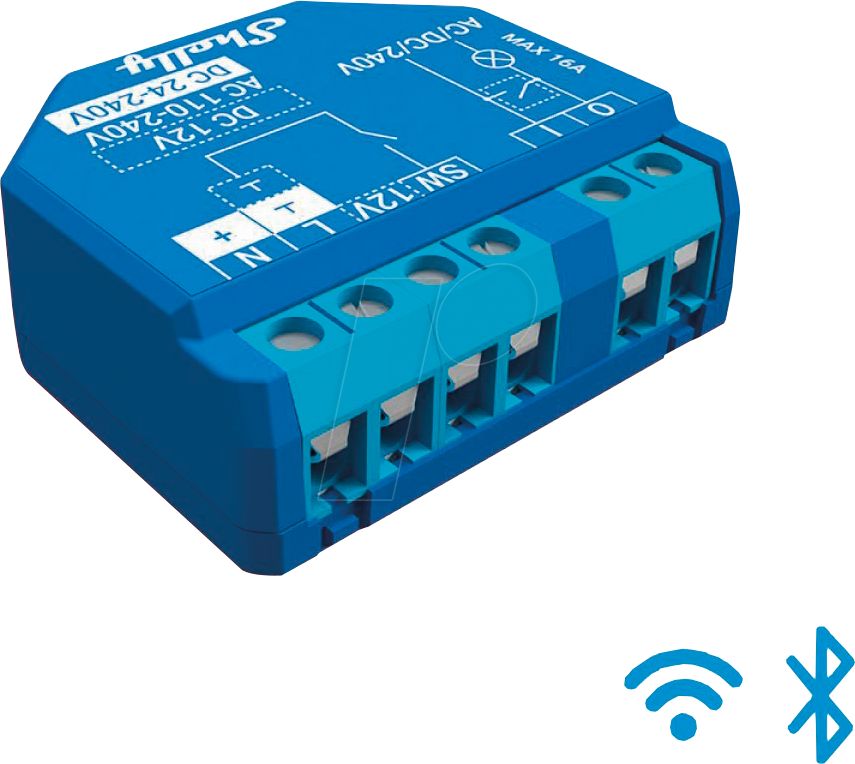

Shelly Plus 1 relay switch for Wi-Fi network. The relay switch allows control of a wide range of different products at any time and from anywhere. Shelly's relay switch turns a product into a smart device.

The Shelly Plus 1 is a compact relay switch designed to fit into most electrical junction boxes and switches. With the Shelly Plus 1 connected to a wireless network, you can control, for example, lighting, blinds, heating, or even air conditioning.

Shelly smart home products support Amazon Alexa and Google Assistant voice assistants. In addition to those mentioned above, several other smart home systems/platforms are supported (verify compatibility per product). Shelly products connect to a wireless Wi-Fi network and do not require a separate home automation controller to operate.

Note! You will need an electrician's assistance for fixed electrical installations.

Features

• Wi-Fi - no need for a separate hub
• Bluetooth support
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support

Technical specifications

• Model: Shelly Plus 1
• Rated voltage: AC: 110-240 V ±10%, 50/60 Hz, DC: 24-48 V / 12 V
• Power consumption: < 1,2 W
• Number of channels: 1
• Maximum load: 16 A
• Power consumption measurement: no
• Works without neutral wire: no
• Overload protection: no
• Overheat protection: yes
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Operating frequency: 2412 - 2484 MHz
• Radio signal strength: 1 mW
• Transmit power: 13,45 dBm
• MQTT and WSS support
• Operating temperature: -20ºC ... +40ºC
• Range: 50 m outdoors, 30 m indoors
• Dimensions: 42 x 37 x 16 mm
