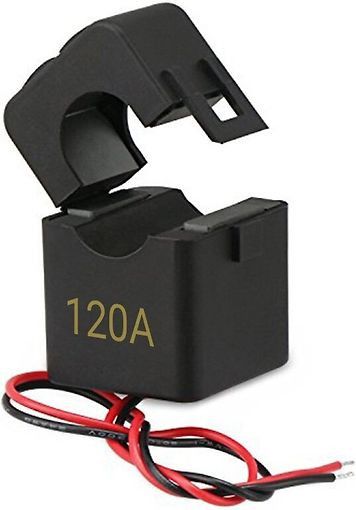

Shelly Current tranformer 120A current transformer for monitoring power consumption. Compatible with the Shelly EM remote-controlled relay.

Shelly's smart home products support Amazon Alexa and Google Assistant virtual assistants. In addition, several other smart home systems/platforms are supported (verify compatibility per product). Shelly products connect wirelessly to a Wi-Fi network and do not require a separate home automation controller to operate.

Note! Installation may only be carried out by a certified electrician. This product requires a Shelly EM relay switch to operate.

Features

• Model: Shelly C-120
• Compatible with Shelly EM relay switch
• Accuracy: 1%
• Dielectric strength: 3000VAC 1mA 60s
• Inner diameter: 17mm
• Load resistance: 20ohm
• Rated primary current: 120A
• Saturation current: >120A
• Rated secondary current: 40mA
• Dimensions: 31 x 45 x 30 mm

Delivery

• Shelly C-120 current transformer
• Quick guide
