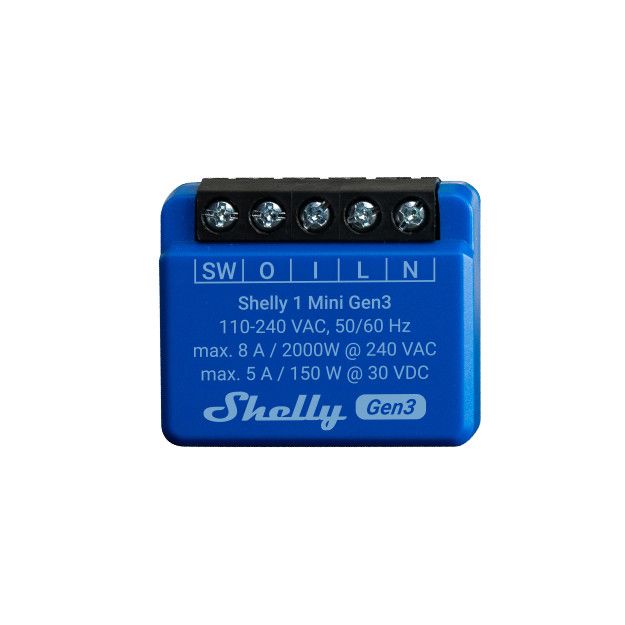

Shelly 1 Mini Gen 3 relay switch for Wi‑Fi networks. The relay switch allows control of a wide range of different products at any time and from anywhere. The Shelly relay switch makes the product smart.

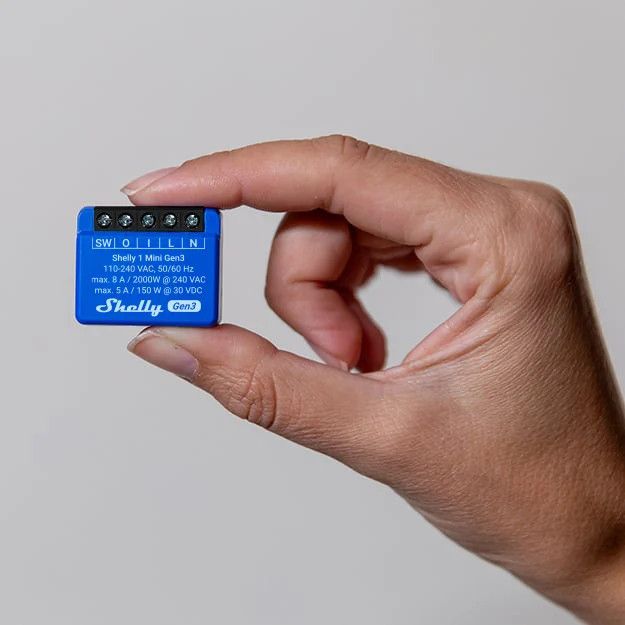

Shelly 1 Mini Gen 3 is a compact relay switch designed to fit into most electrical boxes and switches. The Shelly 1 Mini Gen 3, which connects to a wireless network, can be used to control, for example, lighting, blinds, heating, or even air conditioning.

Shelly smart home products support the Amazon Alexa and Google Assistant virtual assistants. In addition to the above, several other smart home systems/platforms are also supported (verify compatibility per product). Shelly products connect to a wireless Wi‑Fi network and do not require a separate home automation controller to operate.

Note! You will need the help of an electrician for fixed electrical installations.

Features

• Wi‑Fi - no need for a separate hub
• Bluetooth support
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support

Technical specifications

• Model: Shelly 1 Mini Gen 3
• Rated voltage: AC: 110-240 V ±10%, 50/60 Hz
• Power consumption: < 1.2 W
• Number of channels: 1
• Maximum load: 8 A
• Power consumption measurement: no
• Works without neutral wire: no
• Overload protection: no
• Overheat protection: no
• Wireless standard: WiFi 802.11b/g/n, 2.4 GHz
• Operating frequency: 2412 - 2484 MHz
• Radio signal strength: 1 mW
• MQTT and WSS support
• Operating temperature: -20ºC ... +40ºC
• Range: 50 m outdoors, 30 m indoors
• Dimensions: 29 x 35 x 16 mm
