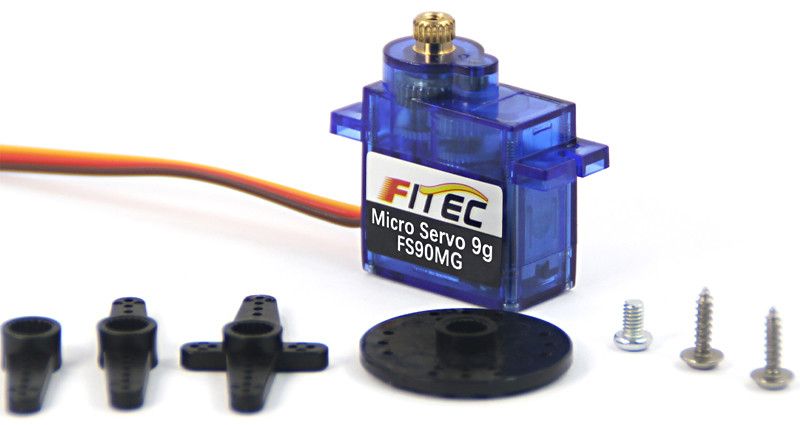

Model

FS90MG

Product Name:

6V 2.2kg /6V 2.2kg.cm  Digital  Servo

Storage Temperature Range

-30℃～80℃

Operating Temperature Range:

-1℃～70℃

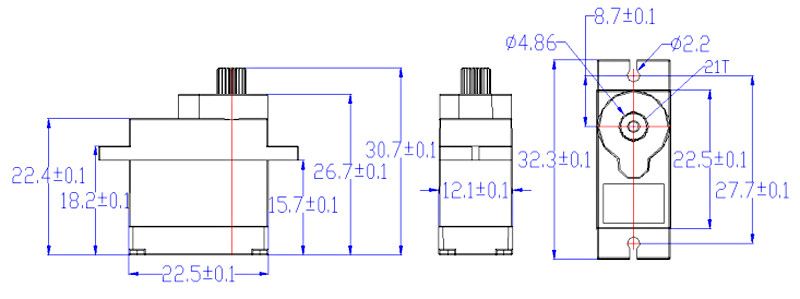

Size:

A：22.5mm B：12.1mm C：26.7mm

Weight:

12.5g

Gear type:

Metal Gear

Limit angle:

180degree

Bearing:

NO Ball bearings

Horn gear spline:

21T

Horn type:

Plastic,POM

Case:

ABS

Connector wire:

250mm

Motor:

Metal brush motor

Operating Voltage Range:

4.8-6V

Idle current(at stopped)

5mA-6mA

No load speed:

110RPM@6V

Runnig current(at no load) :

220 mA @6V

Peak stall torque:

2.2kg.cm@6V

Rated torque:

0.7kg.cm@6V

Stall current:

800mA@6V

Running degree:

180°(when 500～2500μsec)

Rotating direction

CW(when 1500～900 µsec)

CCW(when 1500～2100 µsec)
