Sensirion SHT40I-AD1F-R2 humidity and temperature sensor

The SHT40I-AD1F-R2 is an industrial digital humidity and temperature sensor with an integrated PTFE protective membrane. The sensor provides accurate measurement, a wide supply voltage range and an I²C interface in a compact SMD package.

Features

• Humidity measurement 0...100 %RH, accuracy ±2 %RH
• Temperature measurement -40...+125 °C, accuracy ±0.2 °C
• I²C digital interface
• Supply voltage 2.3...5.5 VDC
• Integrated PTFE protective membrane

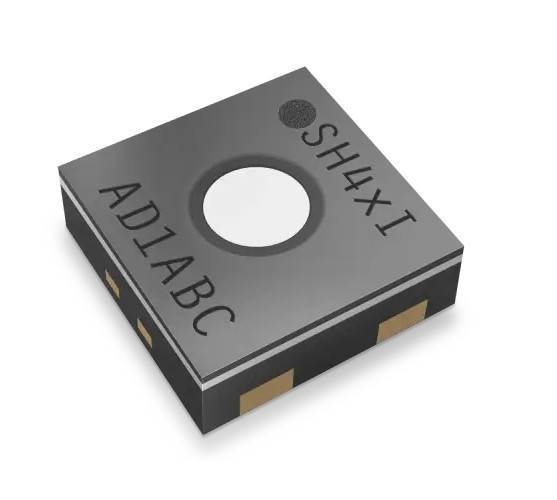

• Small 1.5 × 1.5 mm DFN package
• SMD mounting
