Product Description

PRODUCT DETAILS

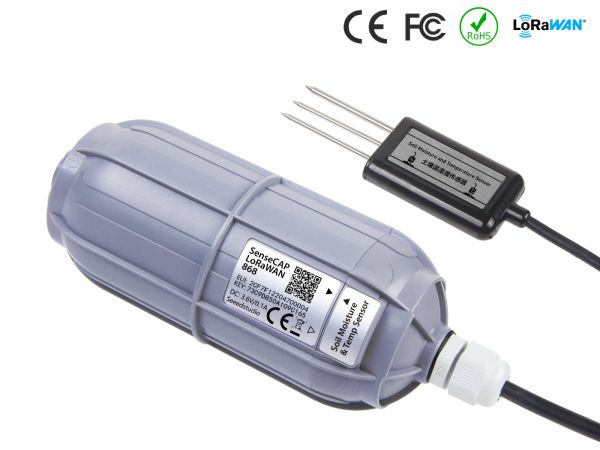

SenseCAP Wireless Soil Moisture & Temperature Sensor measures soil volumetric water content (VWC) and soil temperature at the range of 0 ~ 100% (m³/m³) and -30 ~ 70℃ respectively. With the high-quality soil moisture and temperature probe, this sensor features high precision and sensitivity regardless of soil variability, making it widely applicable in industrial IoT (IIoT) scenarios such as water-saving irrigation, outdoor fields, greenhouses, and more.

Features

Support LoRaWAN protocol Class A
High reliability and stability
Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scenes
Battery life ≥ 6 years
IP66 enclosure, suitable for outdoor applications
Rapid installation and deployment (see the video below)

Applications

Smart Agriculture
Smart Building and Industrial Control
Environmental Monitoring
Other Wireless Sensing Applications

Specifications

Soil Temperature
Range	-30 ℃ to +70 ℃
Accuracy	±0.5 ℃
Resolution	0.1 ℃
Soil Moisture
Range	From completely dry to fully saturated (from 0% to 100% of saturation)
Accuracy	±2% ( 0 to 50 %) ; ±3% ( 50 to 100 %)
Resolution	0.03 %(0 to 50%); 1%(50 to 100%)
General Parameters
Product Model	Long Range -S-868-Soil MT-01
Microcontroller	Ultra-low-power MCU
Support Protocol	Based on LoRaWAN v1.0.2 protocol
Long Range Channel Plan	EU868
Long Range Power Output	16 dBm (EIRP)
Sensitivity	-137.5dBm(SF12, BW125KHz)
Current Consumption	5 μA (sleep mode) 120 mA max(active mode)
Communication Distance	2 to 10 km (depending on different antennas and environments)
Measuring Area	A cylinder area (with the probe as the center, diameter: 7cm, height: 7cm)
IP Rating	IP66
UV Resistance	anti-aging (from rain/sun exposure): UL746C F1
Enclosure Material	PC
Operating Temperature	-30 ℃ to +70 ℃
Operating Humidity	0 to 100 %RH (non-condensing)
Device Weight	415g
Certification	CE, FCC, RoHS
Battery (Contained in equipment)
Battery Life	≥ 3 years (upload data once per hour)
Battery Voltage	3.6V
Battery Capacity	19Ah (non-rechargeable)

Long Range Frequency

The device is designed with a fixed Long Range channel, which can not be modified by users. The supported channels are as follows. Please refer to this document for how to connect this device with a standard LoRaWAN gateway.

Long Range Channel Plan
Uplink (MHz)	868.1 - SF7BW125 to SF12BW125 868.3 - SF7BW125 to SF12BW125 and SF7BW250 868.5 - SF7BW125 to SF12BW125 867.1 - SF7BW125 to SF12BW125 867.3 - SF7BW125 to SF12BW125 867.5 - SF7BW125 to SF12BW125 867.7 - SF7BW125 to SF12BW125 867.9 - SF7BW125 to SF12BW125
Downlink (MHz)	Uplink channels 1-8 (RX1) 869.525 - SF9BW125 (RX2 downlink only)

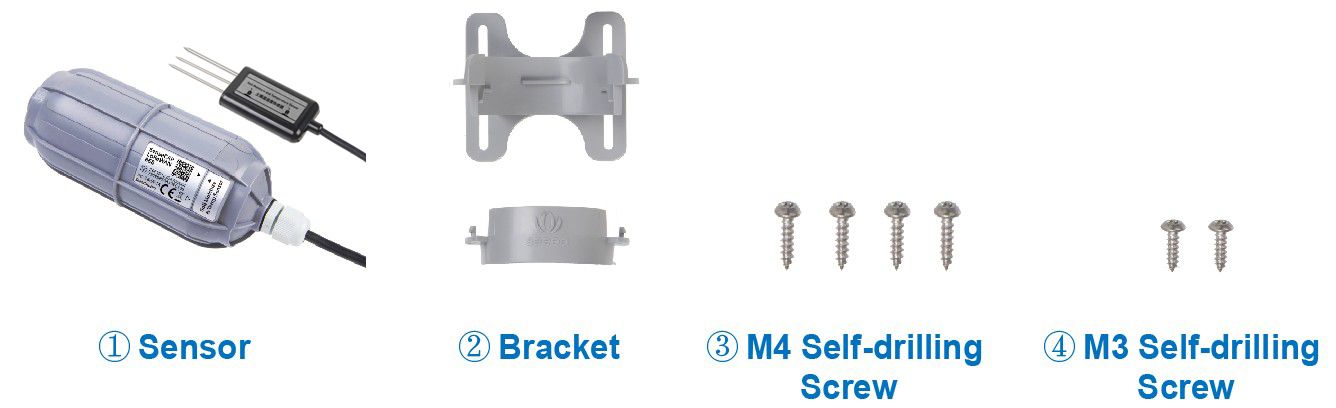

Part List

1	Sensor	x1
2	Bracket	x1
3	M4 Self-drilling Screw	x4
4	M3 Self-drilling Screw	x2

Video
