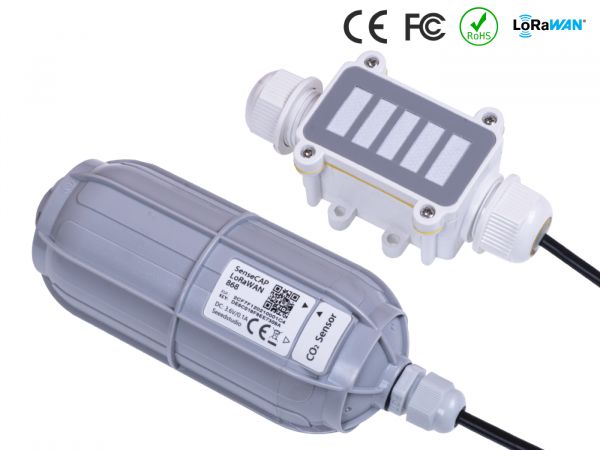

SenseCAP LoRaWAN CO2 Sensor

Name: SenseCAP LoRaWAN CO2 Sensor
Brand: Seeed Studio
SKU: SEEED-114991728
Price: 27.50 EUR
Availability: OutOfStock

Temporarily out of stock

SKU#: SEEED-114991728

SenseCAP LoRaWAN CO2 Sensor

Temporarily out of stock

SKU#: SEEED-114991728

Seeed Studio 114991728 - SenseCAP Wireless CO2 Sensor - LoRaWAN EU868MHz

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Seeed Studio
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

PRODUCT DETAILS

SenseCAP Wireless CO2 Sensor measures the level of carbon dioxide (CO2) gas at the range of 0 ~ 40000 ppm in the atmosphere, applicable for indoor environments. It is perfect for monitoring CO2 ppm in greenhouses, industrial campuses, factories, schools, office buildings, hotels, hospitals, transportation stations, and anywhere that data of CO2 emission is needed.

Features

Support LoRaWAN protocol Class A
NDIR CO2 sensor technology
Dual-channel detection for superior stability
Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scenes
Battery life ≥ 1.5 years
Rapid installation and deployment (see the video below)

Applications

Smart Agriculture/ Precision Agriculture
Smart Building and Industrial Control
Environmental Monitoring
Other Wireless Sensing Applications

Specifications

CO2
Parameters	Condition	Value
Range	-	0 to 40000 ppm
Accuracy	400 to 10000ppm	±(30 ppm + 3 %MV)
Resolution	-	1 ppm
Temperature Stability	T = 0 to 50 ℃	±2.5 ppm/℃

Parameters
Product Model	Long Range -S-868-CO2-01
Microcontroller	Ultra-low-power MCU
Support Protocol	Based on LoRaWAN v1.0.2 protocol
Long Range Channel Plan	EU868
Long Range Power Output	16 dBm (EIRP)
Sensitivity	-137.5dBm(SF12, BW125KHz)
Current Consumption	5 μA (sleep mode) 120 mA max(active mode)
Communication Distance	2 to 10 km (depending on different antennas and environments)
IP Rating	IP66 (Sensor Node); Indoor (Sensor Probe)
UV Resistance	anti-aging (from rain/sun exposure): UL746C F1
Enclosure Material	PC
Operating Temperature	0 ℃ to +50 ℃
Operating Humidity	0 to 95 %RH
Device Weight	319g
Certification	CE, FCC, RoHS
Battery (Contained in equipment)
Battery Life	≥ 3 years (upload data once per hour)
Battery Voltage	3.6V
Battery Capacity	19Ah (non-rechargeable)

Long Range Frequency

The device is designed with a fixed Long Range channel, which can not be modified by users. The supported channels are as follows. Please refer to the user manual for how to connect this device with a LoRaWAN gateway.

Long Range Channel Plan
Uplink (MHz)	868.1 - SF7BW125 to SF12BW125 868.3 - SF7BW125 to SF12BW125 and SF7BW250 868.5 - SF7BW125 to SF12BW125 867.1 - SF7BW125 to SF12BW125 867.3 - SF7BW125 to SF12BW125 867.5 - SF7BW125 to SF12BW125 867.7 - SF7BW125 to SF12BW125 867.9 - SF7BW125 to SF12BW125
Downlink (MHz)	Uplink channels 1-8 (RX1) 869.525 - SF9BW125 (RX2 downlink only)

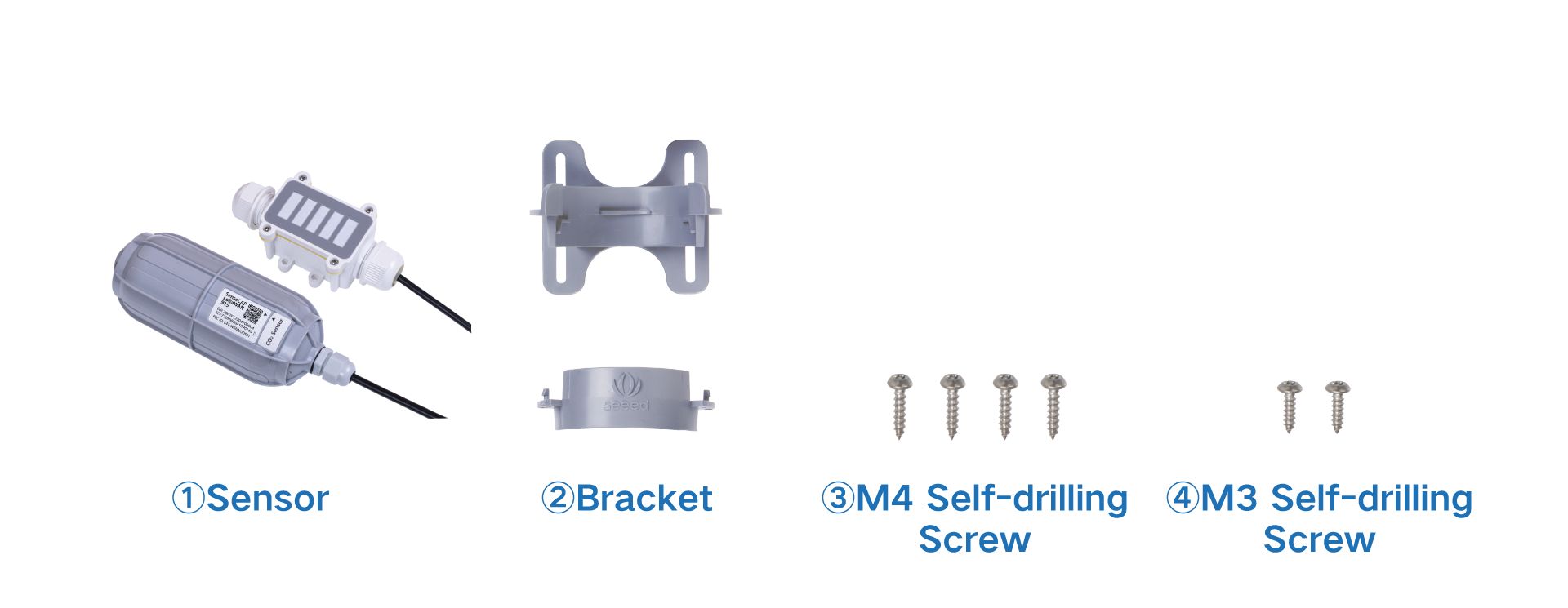

Part List

1	Sensor	x1
2	Bracket	x1
3	M4 Self-drilling Screw	x4
4	M3 Self-drilling Screw	x2
