PRODUCT DETAILS

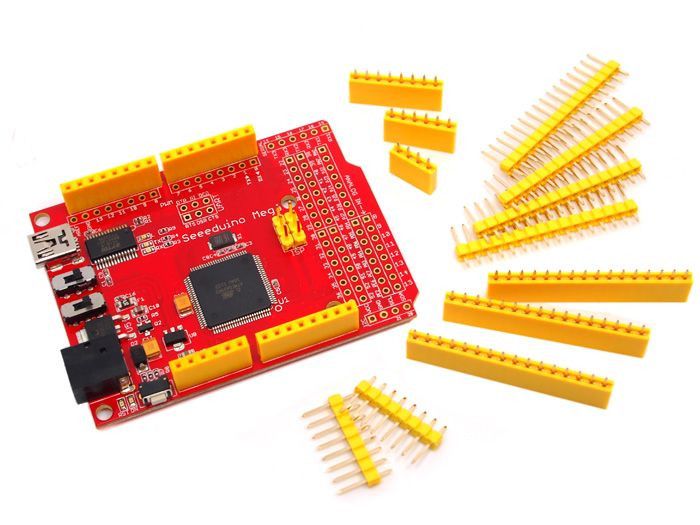

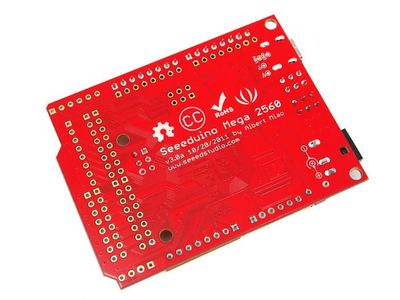

Seeeduino Mega is a powerful micro-controller derived from Arduino Mega. It features ATmega2560 processor which brings a large number of I/O pins, as much as 70 digital I/O, 16 analog inputs, 14 PWM, and 4 hardware serial ports. Compared to Arduino Mega, we shrunk the volume of Arduino Mega by at least 30% and made it 100% compatible with Seeed Shield products. And as a member of Seeeduino series, Seeeduino Mega inherits deliberate details from Seeeduino, like selectable operating voltage(3.3V/5V), right angle reset button, and so on.

Features

• ATmega 2560 @ 16MHz

• Selectable 5V/3.3V operation

• 70 Digital IO

• 16 Analog inputs

• 14 PWM outputs

• 4 Hardware serial ports (UART)

• Compatible with most Arduino Duemilanove and Diecimila Shields

• Small form factor, 30% smaller than Arduino Mega

• Easy to program, no additional hardware is required to load firmware – just plug to a USB port and you’re good to go.

• ICSP Header

• Can be powered through a battery or through a AC to DC adaptor

Technical details

Part List

Links

• Wiki Seeeduino Mega

• Schematic: Seeeduino Mega Eagle File

• Pin Mapping: Seeeduino Mega Pin Mapping PDF

• References:

  • Getting Started with Arduino

  • Arduino Language Reference

  • Download the Arduino Software(IDE)

  • Arduino FAQ

  • Arduino Introduction

  • Wikipedia page for Arduino

  • Arduino Mega
